YIHUA 853AAA 3 in 1 digital SMD soldering desoldering hot air gun preheat BGA rework station Products from Guangzhou Yihua Electronic Equipment Co., Ltd.

Product Details

Single package size:	37X38X18 cm;	Type:	Other;
Place of Origin:	Guangdong China;	Certification:	CE ISO ROHS SAA;
After-sales Service Provided:	Overseas third-party support available;	Current:	6A;
Usage:	repairing electronic equipment;	G.W.:	23.41KG/CTN;
Single gross weight:	6.5 KG;	Warranty:	1 year;
Package Type:	1pcs per inner box ,4pcs per outer carton box;	Voltage:	110V/220V/230V/240V OPTIONAL;
Q'ty:	4pcs /outer carton;	Weight:	5.54KGS/PCS;
Outer carton box size:	734039cm;	Type:	Other;
Rated Duty Cycle:	50-100%;	Dimensions:	Inner box size 373818cm;
Selling Units:	Single item;	Rated Capacity:	Airflow:120L/MIN;
Brand Name:	YIHUA;	After-sales Service Provided:	Video technical support;

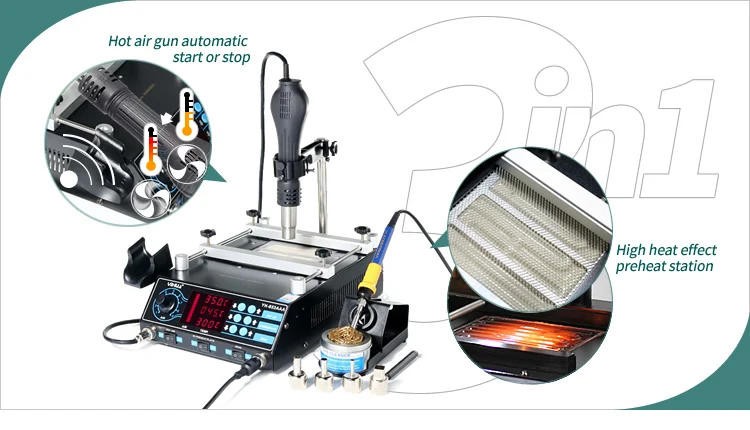

YIHUA 853AAA 3 in 1 digital SMD soldering desoldering hot air gun preheat BGA rework station

Product Description

Feature

1.Using microcomputer processor PID programmable temperature control technology.

2.Preheating station is to use a glaze layer having a high thermal effect, good thermal shock resistance of the ceramic as the substrate, high-quality nickel branded alloy wire once sintering.

It has a high thermal effect, overall good, good thermal stability, uniform heating, high dielectric strength, clean, easy to install and so on features.

3.Air Gun heater use ceramic heater.

heating elements firmly wrapped around the model ceramic, rapid and uniform heating.

Use the upgraded version fan, the airflow larger than the ordinary fan, spiral out of the wind, long life.

4.Soldering iron part using Imported heater.

heating up rapidly, temperature stability, long service life; antistatic design to prevent electrostatic damag to delicate SMD components.

5.The machine has a self-test function.

full intelligent over-temperature, short-circuit, open circuit, overload and fault display and protection functions.

6.853AAA preheating station using the user-friendly design.

the cover affixed with a high-temperature, insulated protection pads to prevent scalding operation.

Uses magnetic induction technology.

Card board bracket to prevent protective pads suck hood above.

Can rotate 360 degrees, flexible card board.

It is suitable for the circuit boards of different shapes and sizes.

7.853AAA temperature correction function

Adapt to the environmental impact, or replace the heating elements, soldering iron tips etc. spare parts caused by temperature deviation,can use this function calibration temperature.

The correction temperaturerange is -50 °C ~ +50 °C.

8.853AAA has Celsius / Fahrenheit temperature display function

Meet different market needs to design the temperature display mode, you can choose under customary interest.

9. 853AAA hot air gun part have add to auto./manual function .

Data

Voltage AC220C±5%

Max power consumption 1270W

Preheating station parts

Temperature Range 50~400 °c / 152~752 °F

Temperature Stability ±2 °c

Display Type LED

Area 120*120mm

Hot Air Reworks parts

Airflow type brushless fan spiral out wind

Air Flow ≤130L/min

Temperature Range 100 °c -480 °c /212°F ~896 °F

Temperature Stability ±1 °c

Display Type LED

Handle cable length ≥100cm

Soldering Iron parts

Temperature Range 200 °c -480 °c /392°F~896 °F

Soldering iron heater Hakko heater

Solder iron holder black Ferro-alloy iron holder

Soldering iron handle Blue iron handle

Temperature Stability ±1°c

Tip of ground voltage <2mV

Tip ground impedance <2 ohm

Display Type LED

Handle cable length ≥100cm

NOTE:Due to shippment cann't contain rosin,so the tip cleanner box don't have rosin inside.

General Usage

1). Suitable for de-soldering and soldering BGA, SOIC, CHIP, QFP, PLCC package SMD IC,

Particularly suitable for de-soldering BGA module, computer motherboard north and south bridge, all kinds of mobile phone motherboard SMT IC and LED lights.

2). Shrinking, Paint drying, adhesive removal, thawing, warming, Plastic welding etc.
