double glazing production line
-
Supplier: Jinan Parker Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Mr Parker Ni -
Price: $40000.00 /unit -
Min. Order: 1 unit
| Overall dimension: | About 20150mm x 2800mm x 3300mm; | Max. thickness of insulating glass: | 12-60mm; |
| Condition: | New; | Max. process dimension: | 2200mm x 3000mm; |
| Convey speed: | 50m/min; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Air consumption: | 200L/min; | Weight: | About 2600Kg; |
| Angle of inclination: | 6°; | Package Type: | Containers.; |
| Warranty: | 1 YEAR; | Single package size: | 2500X150X350 cm; |
| Dimension(L*W*H): | 20150 x 2800 x 3300; | Place of Origin: | Shandong China; |
| Washing speed: | 8-12m/min; | Min. process dimension: | 480mm x 250mm; |
| Max. thickness of one piece of glass: | 3-12mm; | Voltage: | 380V; |
| Single gross weight: | 7,000 KG; | Brand Name: | parker; |
| Production Capacity: | High efficiency; | Selling Units: | Single item; |
| Weight: | About 2600Kg; | Certification: | CE; |
| Power(W): | 18KW; |

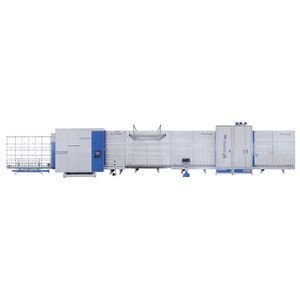

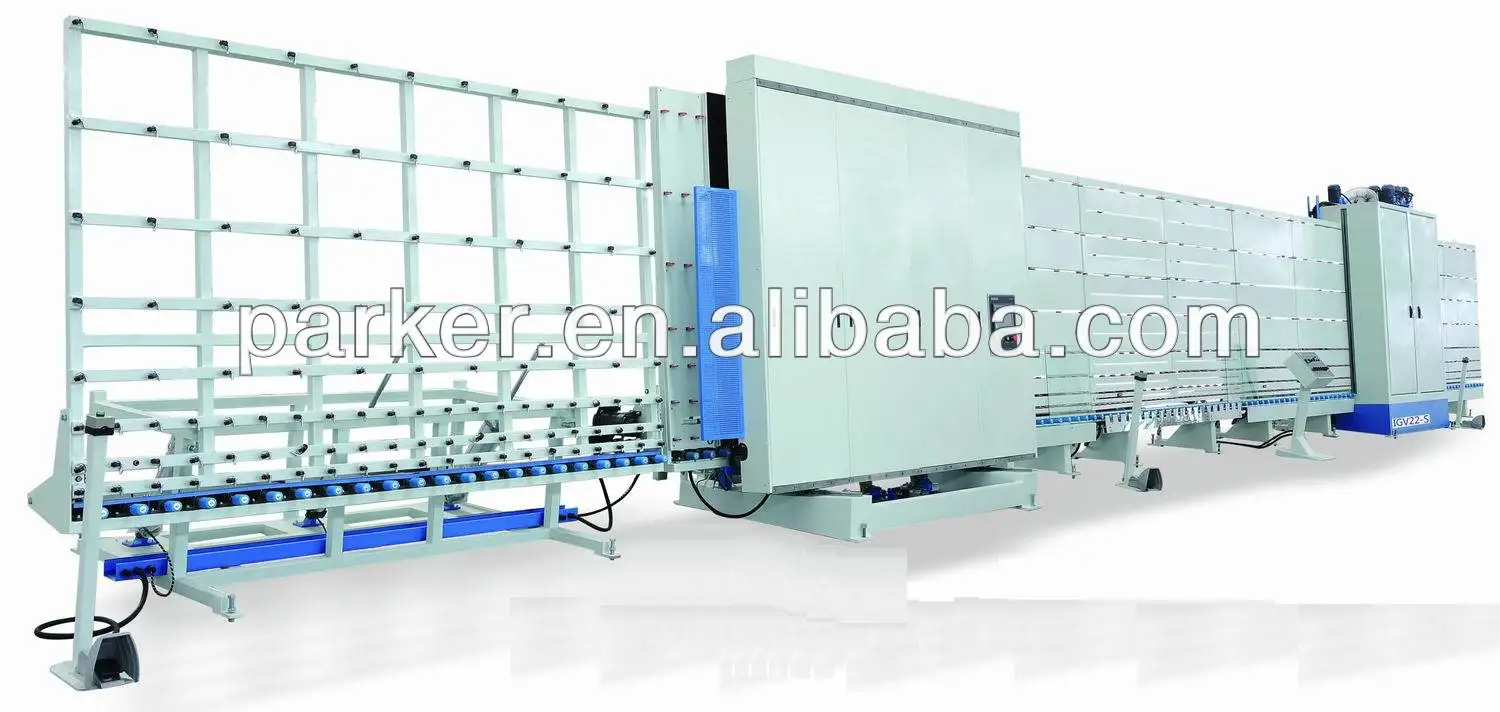

Insulating glass process linefrom PARKER IGV22-S
Features:
² Forinsulating glass production, such as standard glass, overlength glass, coated glass, LOW-E glass, big&small glass, unique glass, triple glass and so on.
² Adopt advanced german technology and parts of world famous brands.
² Three sections: transfer section, washing&drying section, and press section. double glazing production line
² Adopt servo motor and ball screw to press glass. It’s stable, high precision, easy to operate and maintain.
² Monitor work process timely with big colored touch screen.
² Three pairs of brushes for washing glass, the first pair is hard brushes, the other two pairs are soft brushes.
² Automatically identify coating surface of glass to stop the first pair of hard brushes, avoiding loss of the coating film.
² Three water tanks are separated for each pair of brushes, avoiding cross contamination effectively.
² Adopt high pressure fan and special air knife to improve dry effect.
² Available for transferring different sizes of glass with multistage frequency conversion control and speed optimization.
² Adopt germany industrial plastic bearing in washing section, avoiding rust.
² Match with film removing machine and two component coating machine perfectly.
Parameters:
Name | Insulating glass production line |
Model | IGV22-S |
Power | 380(±6%-10%)V/50-60HZ/18KW |
Air consumption | 200L/min |
Max. process dimension | 2200mm x 3000mm |
Min. process dimension | 480mm x 250mm |
Max. thickness of insulating glass | 12-60mm |
Max. thickness of one piece of glass | 3-12mm |
Convey speed | 50m/min |
Washing speed | 8-12m/min |
Angle of inclination | 6° |
Overall dimension | About 20150mm x 2800mm x 3300mm |
Weight | About 2600Kg |
Welcome to visit website for more choices: www.parker-chn.com
Peter
PARKER MACHINERY CO. LTD, CHINA
Address: No.40 Hua Yuan Road, Jinan, China
Tel: 0086-531-88075288; Fax: 0086-531-88977066
Mobile: 0086-18678881039
-
