CNC Glass Cutting Machine Float Glass Cutting Machine Multifunctional Glass Cutting Machine
- 42000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Main selling points: | automatic | Diagonal accuracy: | ≤±0.30mm/m |
| Supply capacity: | 1 set per week | brand: | AGM or customized |
| Core components: | PLC, engine | Mechanical test report: | not available |
| Warranty: | 1 year | Maximum motor shaft speed: | 165m/min |
| Dimensions (L*W*H): | 3800*2600mm | Production capacity: | 165m/min |
| Packaging Details: | Movie | payment terms: | L/C, Western Union, T/T |
| Showroom location: | not any | brand: | Annual General Meeting |
| Health status: | new | Voltage: | 380V |
| semester: | CIF/FOB/CFR | equipment power: | 6.9 kW |
| weight: | 3000 kg | Marketing Type: | New Products for 2021 |
| strength: | 6.9W | Function: | automatic glass cutting |
| product name: | Float Glass Cutting Machine Multifunctional Glass Cutting Machine | port: | Qingdao |
| Cutting glass thickness: | 3-19 mm | Video outbound inspection: | if |
| Core component warranty: | 1 year | Certification: | CE |
| Applicable industries: | Building material stores, machine repair shops, manufacturing plants, construction projects | Straight parallelism: | ≤±0.25 mm/m |
| Origin: | liaoning |
product description

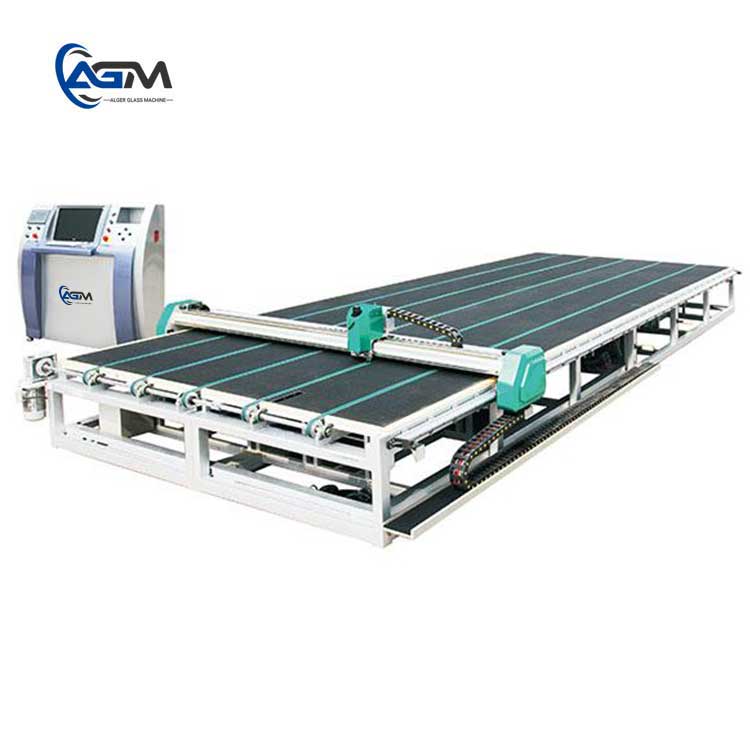

glass cutting machine

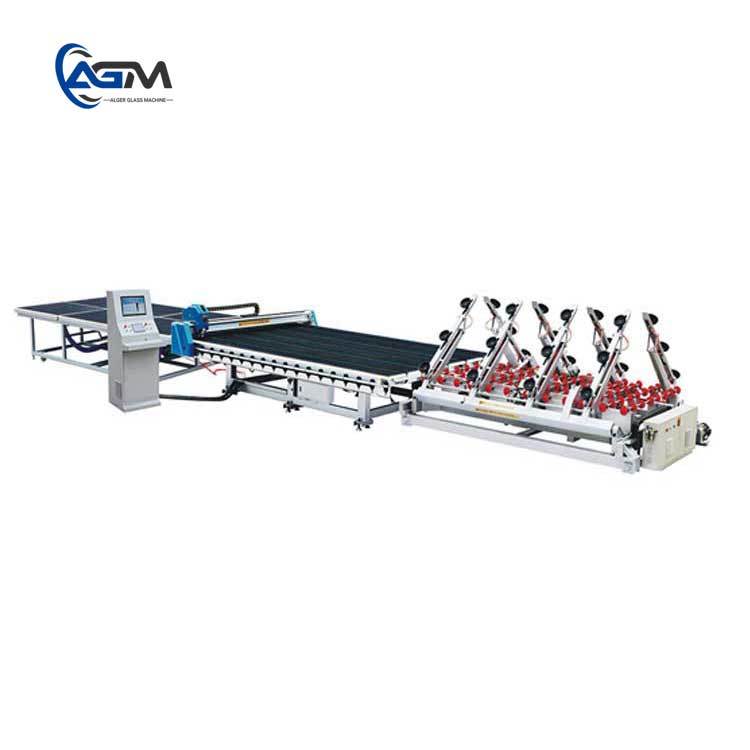

A cutting line consists of three parts:
Fully automatic intelligent feeding machine, cutting machine, air flotation machine
slice table. CNC automatically controls the operation of the entire line.
slice table. CNC automatically controls the operation of the entire line.
The loading machine automatically removes the glass and transfers it to the cutting machine. The cutting machine automatically cuts the input glass size, and automatically transfers the cut glass to the air-cutting and air-floating slicing table.
Auxiliary slicing, the single glass cutting process ends.
Reliable work, stable performance, applicable, high work efficiency.
Reliable work, stable performance, applicable, high work efficiency.
Features
It has the characteristics of higher safety, faster running speed, higher cutting precision, better stability, higher utilization rate and labor saving.
Advanced mechanical structure, famous control system and optimized software. Greatly improve glass cutting quality and high utilization rate.
Advanced mechanical structure, famous control system and optimized software. Greatly improve glass cutting quality and high utilization rate.
main products
Product parameters
Cuttable maximum glass size (mm) 3660*2440
Cutting glass thickness (mm) 3~19
Motor shaft maximum speed (m/min) 165m/min
Linear cutting accuracy (mm) ±0.15mm
Diagonal accuracy (mm) ±0.5mm
The cutting moving parts are equipped with self-protection devices, which greatly reduces the occurrence of failures
Equipment power 6.9KW
The oil tank is automatically lubricated according to the cutting situation
Cutting glass thickness (mm) 3~19
Motor shaft maximum speed (m/min) 165m/min
Linear cutting accuracy (mm) ±0.15mm
Diagonal accuracy (mm) ±0.5mm
The cutting moving parts are equipped with self-protection devices, which greatly reduces the occurrence of failures
Equipment power 6.9KW
The oil tank is automatically lubricated according to the cutting situation
