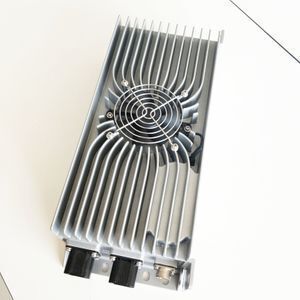

2 in 1 , 3.3KW OBC and 1KW DC-DC Converter , EV Air cooling on board charger

Product details
Brand Name:DILONG;Supply Ability:5000 Piece/Pieces per Month 2 in 1 , 3.3KW OBC and 1KW DC-DC Converter , EV Air cooling on b;
Model Number:DAV5KM37-360C-14RC;Degree of protection:IP67;
Size:390.5mm*171.75mm*113 mm;Efficiency:95%;
Product Name:3.3KW OBC and 1KW DC-DC Converter;Output Voltage:14vdc;
Output Current:71A(Rated); 85A(Max);Packaging Detail:Export standard packing Each piece is packed with film, plastic foam. 2 in 1 , 3.3KW OBC and 1KW DC-DC Converter , EV Air cooling on board charger;
Port:Tianjin;Cooling:Air cooling;
Power:5000w;Weight:5kg;
Input Voltage Range:85-264vac; 220vac (rated);Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:Hebei China;

2 in 1 , 3.3KW OBC and 1KW DC-DC Converter , EV Air cooling on board charger

more products

Product Description

DAV5KM37-360C-14RC is a forced water cooling, specially designed for pure electric vehicles, and a digital converter forhe conversion and integration of OBC(On-board Charger) and DCDC(DC/DC Converter). Reduced the number of the vehicle wiring harness connector and the trouble fission power installation is one of the world's highest power density products, various performance indicators have reached or exceed the international peer level, trouble-free operation for longer.

Installation Guide

M37(C+D)     OBC(On-board charger) Specification

Rated Voltage

Vac

220

Voltage Range

Vac

85~264(85~175 the power dropped to 1200W)

FREQ RANGE

HZ

47~63

Efficiency(MAX)

%

≥95

Power Factor



≥0.99@220Vac,rated power

Current

A

≤16A@220Vac

Rated output voltage

Vdc

360

Constant voltage output range

Vdc

250~420  (According to customer battery decision)

Maximum current

A

12 (Constant power output characteristics)

Maximum power

W

3300

Output voltage accuracy

V

≤±1%Vo   input 176Vac-264Vac,output 10%-100% load

Line regulation

%

≤±0.2%Vo  input 176Vac-264Vac,output 100% load

Load regulation

%

≤±0.5%Vo  input 220Vac,output 10%-100% load

Ripple and noise

mV

≤±3%Vo  20M oscilloscope,Twisted-pair cable test.

+

M37(C+D)  DC/DC(DC/DC Converter) Specification

Project

Specifications

Note

Rated input voltage/current

DC:360V



Input voltage range

DC:230V~410V



Output rating

DC:14V

(The shell is DC14V output negative)

Output current

71A(rated), 85A(max/6mins)



Output power

1000W(rated), 1200W(max/6mins)



Output voltage accuracy

≤±1%



Line regulation

<±0.2%

Input, output full range

Load regulation

<±0.5%

Input, output full range

Output Over-current protection

86-88A



Input over-voltage protection

Normal

Hardware limits≥145V shutdown

Input under-voltage protection

Normal

Hardware limits≤60V shutdown

Output Over-voltage protection

yes

Hardware 15V-18V

Control Method

CAN or Enable control

CAN has precedence over enablers

Enable control: high level is effective

+

Product Structure

Size

390.5*171.75*113 mm

Weight

5 Kg

IP Grade

IP67

Cooling mode

air cooling

Mounting dimension:

Packaging & Shipping

Packaging Details: Each piece is packed with film, plastic foam. Export standard packing.

Delivery Details: Shipping in 20 days after payment

.

Advanced testing
