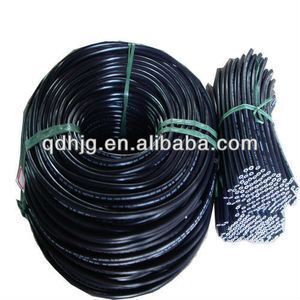

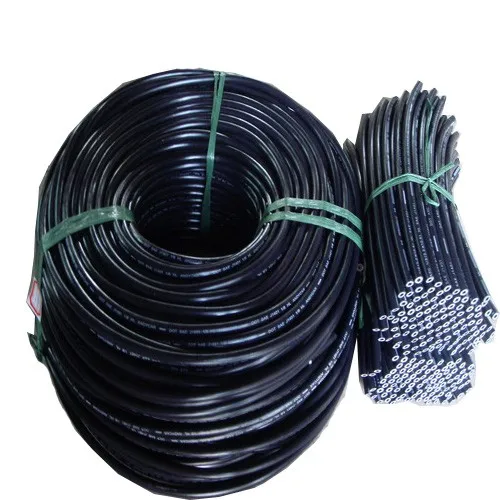

DOT Certified FMVSS 106 & SAE J1401 1/8" HL automotive hydraulic rubber brake hose
- 0.82 >=100 meters
| Burst: | over 60Mpa; | OE NO.: | 1/8"; |
| Selling Units: | Single item; | Warranty: | 1 year; |
| Lead time: | within 7days; | Model Number: | 1/8"; |
| Brand Name: | JL; | Weight: | 0.1kg/m; |
| Work temperature: | -55centigrade to +125centigrade; | Certification: | ISO/TS16949, DOT; |
| Place of Origin: | Hebei China; | Package Preview: | https://sc01.alicdn.com/kf/HTB1WKzfBHSYBuNjSspiq6xNzpXat.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1DyLnj7UmBKNjSZFOq6yb2XXa1.jpg_640x640.jpg; |
| Package Type: | 200M IN ROLL, INTO A CARTON BOX(0.50X0.30X0.20M); 20CTNS ON A WOODEN PALLET(1.00X1.00X1.1M); 25PALLETS FOR 20' CONTAINER.; | Car Model: | auto; |
| Expansion: | 0.35ml/m under 6.9Mpa; | Packing: | PVC, Carton Box and Wooden Pallet; |
| Standard: | SAE J1401; | Size: | 3.2X10.5mm; |
| Fluid: | DOT3, DOT4; | Whip resistance: | over 40h; |
| Single package size: | 50X30X20 cm; | Single gross weight: | 0.1 KG; |
Application: Brake system of all kinds of automotive and motorcycle to transfer the brake power.
Commodity | brake hose |
Standards | SAE J1401,FMVSS 106 |
Quality control | ISO/TS16949:2009 |
Material | Tube: EPDM, perfectly resist oil, heat and permeation of water; Cover: EPDM, perfectly resist heat and ozone. |
Brake fluid | DOT3, DOT4 |
Normal size | 3.2mm x 10.5mm(1/8”) 3.2mm x 12.5mm(1/8”) 4.8mm x 12.5mm(3/16”) |
Special size | 3.0mm x 11.0mm, 3.0mm x 11.5mm,3.5mm x 10.5mm etc |
Features | Low volumetric expansion; Ozone resistance; Low and high temperature toughness range -55°C - 125°C; Exclusive whip performance; High tensile performance; Burst pressure≥60Mpa; Excellent moisture resistance; Stable, safe and reliable brake performance. |
Length/piece | 10 - 80m |
Weight/m | 0.1kg |
Guaranteed | 100000kms or 5 years |

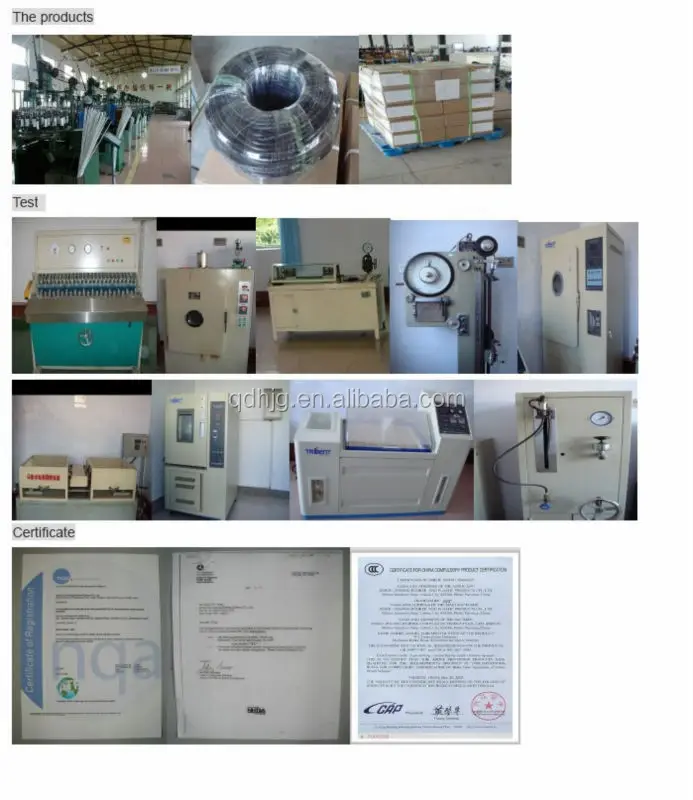

Test Performance
Product Name | HYDRAULIC BRAKE HOSE 1/8" (3.2x10.5mm)SAE J1401 | ||||||||
No | Test Item | QTY | SAE J1401 Standard specification | Test Result | |||||
1 | Volumetric Expansion | 4 | 6.9Mpa | HR | HL | 0.45 | 0.46 | 0.45 | 0.45 |
2.17 | 1.08 | ||||||||
10.3Mpa | 2.59 | 1.38 | 0.65 | 0.65 | 0.66 | 0.65 | |||
2 | Burst Test | 4 | ≥49.03Mpa | 62 | 62 | 63 | 62 | ||
No Leakage No Blowing Off | |||||||||
3 | Brake Fluid | 4 | 27.6Mpa Hold 2M | ≥φ2.03mm | OK | OK | OK | OK | |
Compatibility | Burst≥34.5Mpa | 80up | 80up | 80up | 80up | ||||
4 | Whip Test | 4 | ≥35H, 1.55-1.72 Mpa, 800rpm±10rpm. No pressure reduction | 51 | 51 | 52 | 50 | ||
No water leakage | ND | ND | ND | ND | |||||
5 | Tensile Test | 4 | ≥1446N | 2300 | 2300 | 2300 | 2300 | ||
DN | DN | DN | DN | ||||||
6 | Cold Bend Test | 1 | -45- -48°C 70-72H, bend to 180°around mandrel for 3-5s | -55°C, no cracks | |||||
No cracks or breaks (Visible without magnification) | |||||||||
7 | Ozone Test | 1 | 100mpa±5mpa, 40+3°C for 70-72H | OK | |||||
No cracking under 7X Magnification. | |||||||||
8 | Salt Spray Test | 1 | 5 parts±1 part by weight of sodium chloride to 95 parts of distilled water. Ato Mization at 35°C,subject the ass'y to the salt spray for 24H,No Base Metal Corrosion. | >80h | |||||
Packaging & Shipping
Neutral packing or as customer demands.
Shipping via sea, air or express DHL, TNT, etc.
Our Services
*High Quality and Reasonable Price
*On Time Delivery
*Free Sample
*One Year Warranty
Main markets
Russia, America, Germany, UK, Portugal, Italy, Turkey, Brasil, Venezuela, Peru, Chile and so on, over 60 countries
FAQ
Payment: T/T or Western Union or Secure Payment
