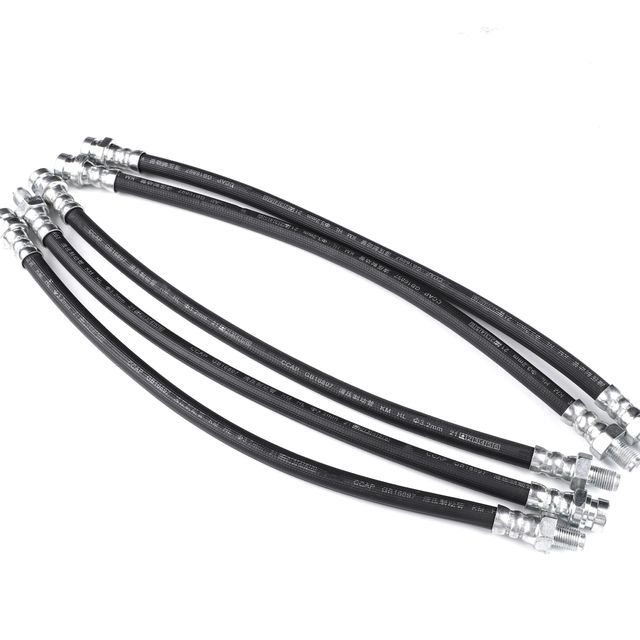

SAE J1401 hydraulic brake hose assembly automotive flexible brake hose automotive hydraulic brake hose Products from Hebei Kemo Auto Parts Technology Co., Ltd.

Product Details

Auto Parts:	American Ford, Cadillac, Volkswagen, Lexus, Seat, Audi, Toyota	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
reference number. :	SL 4990,BBH8075,600000108980,440019032917,FHY3060,HOS3588,172712J,815029269,BH778689,440019030344,19030344,69-02-261,ADT35380 , LH2181,1110-1602,BBH-9082,MBH-2261,SL 4130,TF- 261,8150 13121	temperature:	-40°C(-40°F) ~ +150°C(+300°F)
Warranty:	12 months	port:	Tianjin Guangzhou Shanghai Ningbo
Supply capacity:	4,000,000 meters per year	Original equipment number:	Suitable for all cars and motor brake systems,22113465,3904347,96940-39855,6R0611764B,90947-02973
Model:	Escalade, POLO (6R, 6C), A1 (8X1, 8XK), Explorer (U2), SC Convertible (UZZ40_), IBIZA IV ST (6J8, 6P8), Land Cruiser (_J4_, _J5_)	standard:	SAE J1401 GB16897-2010 DOT
brand:	Kemo	length:	50m or as required
product name:	hydraulic brake hose	Packaging Details:	Generally speaking, weaving packaging first, then boxing, and finally using pallets
sample:	free	size:	1/8" 3.2mm10.5mm;3.2mm10.2mm;3.2mm*12.5mm
application:	Automobile or motorcycle hydraulic brake system	Year:	2010-,2009-,2010-,1994-2001,1998-2006,1968-2001,2001-2010
Burst pressure:	65MPa~85MPa	Material:	synthetic rubber
Package preview:		car model:	All cars and motorcycles
Certificate:	ISO/TS 16949:2009	Origin:	Hebei china
Specification:	3.2mm10.5mm; 3.2mm10.2mm; 3.2mm12.5mm; 4.812.5mm; 6.3*15.0mm.

product specification

Hydraulic Brake Hose Size Chart

inch

Specification MM

ID number

Outer diameter mm

ThicknessMM

wall difference. mm

The minimum burst pressure in MPa.

1 / 8 inch

3.2×10.2

3.35±0.20

10.20±0.30

3.43

0.25

70.0

1 / 8 inch

3.2×10.5

3.35±0.20

10.50±0.30

3.58

0.25

80.0

1 / 8 inch

3.2×12.5

3.35±0.20

12.5±0.30

4.58

0.25

70.0

3 / 1 6 inches

4.8×12.5

4.80±0.20

12.5±0.30

3.85

0.3

60.0

1 / 4 inch

6.3x15.0

6.3±0.20

15.0±0.30

7.35

0.3

50.0

Specification

hydraulic brake hose
application:Automobile or motorcycle hydraulic brake system		SAE J188 power steering hose for pressure transmission in vehicle power steering systems and power steering assembly.
standard:SAE J1401 GB16897-2010 DOT	car model: all
temperature:-40°C~+150°C -40°F~+300°F
reduce vibration Ozone resistance Reduce system noise	high scalability high pressure Pulse resistance
Certificate: ISO/TS 16949:2009

standard:

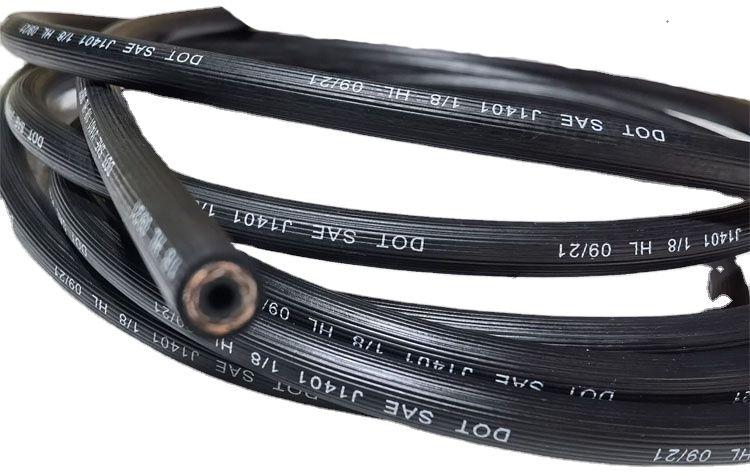

SAE J1401

GB16897-2010

point

 Certificate:

ISO/TS16949:2009

 Temperature:

-40℃~+150°C

-40°F ~ +300°F

 Application:

Automobile or motorcycle hydraulic brake system

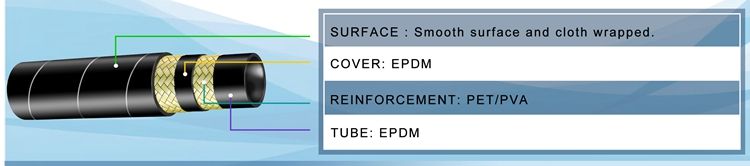

Tube: Special rubber compound with perfect brake fluid compatibility - EPDM

Reinforcement: high-strength braided fibers

Cover: EPDM-synthetic rubber

Surface: Smooth surface, cloth wrapped.

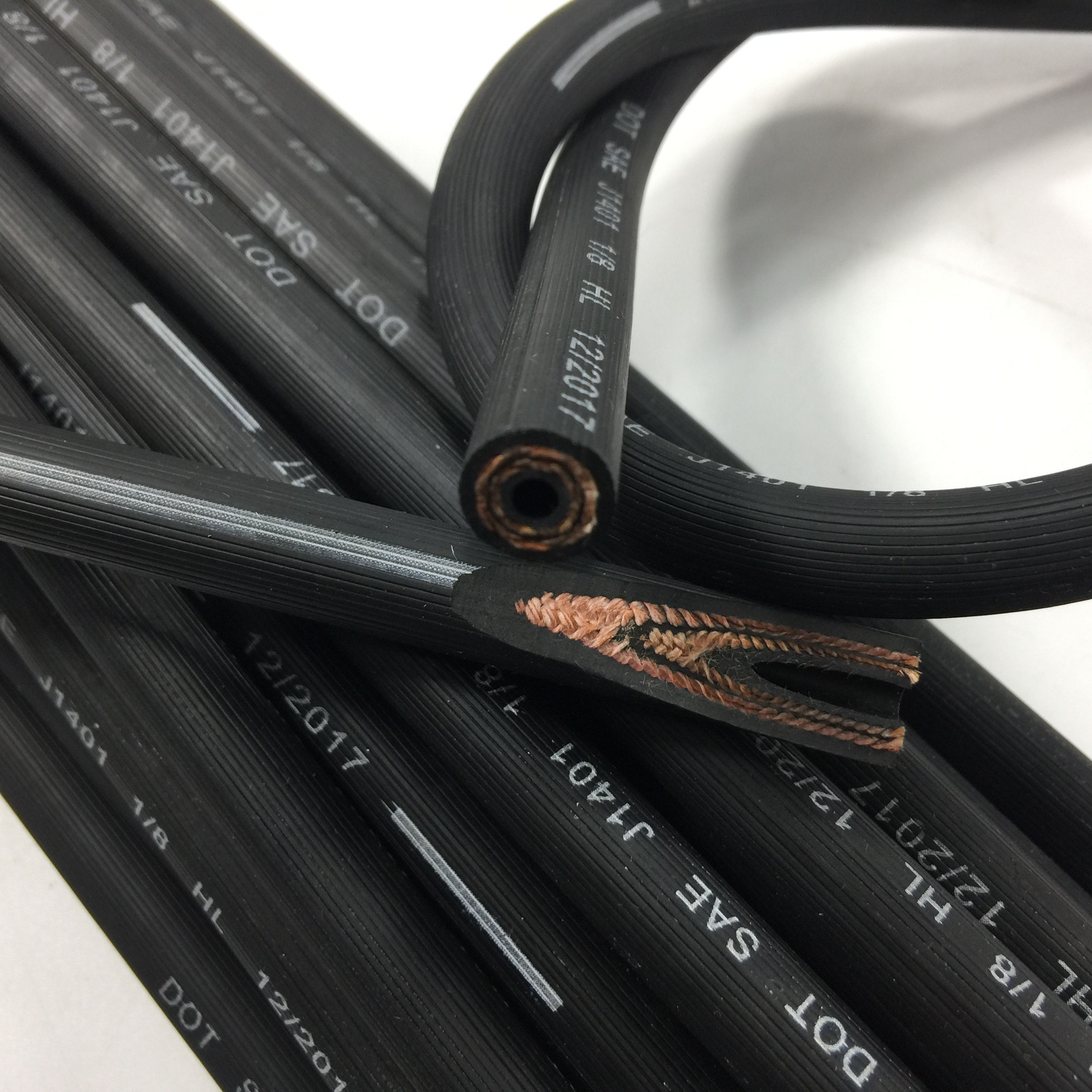

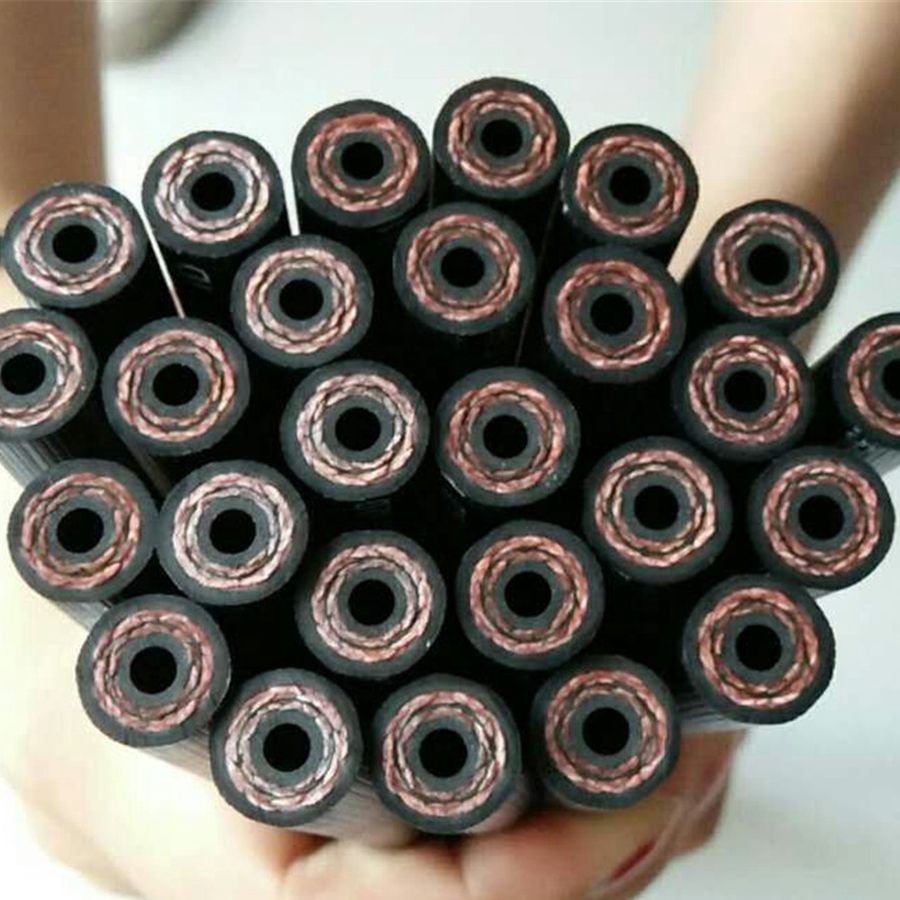

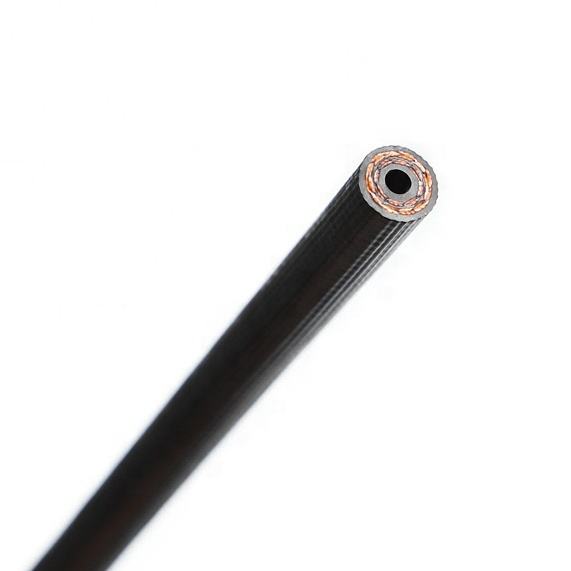

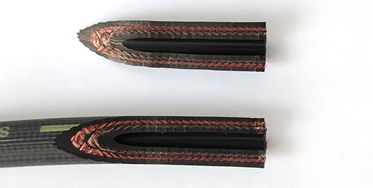

SAE J1401 brake hose consists of five layers. (The inner tube is made of EPDM rubber, the first layer of PVA reinforced textile weaving layer, then adhesive, the second layer of PVA reinforced textile weaving layer, and finally the outer protective layer of EPDM rubber.)

Brake Hose Type

According to the different working medium, the brake hose is divided intoHydraulic brake hose and air brake hose.Air brakes generally use drum brakes. Better for trucks. Generally speaking, hydraulic brakes are mostly disc brakes, which are suitable for passenger cars.

Manufacturing Technology

Como Lab

1. KEMO has its own laboratory, so we can provide the following technical tests: ① Burst pressure ② Bending radius ③ Aging test ④ Temperature (high and low) ⑤ Volume expansion ⑥ Whiper test
2. Cooperate with many well-known domestic research institutions and testing centers to develop new products.
3. KEMO can provide test reports according to customer requirements.

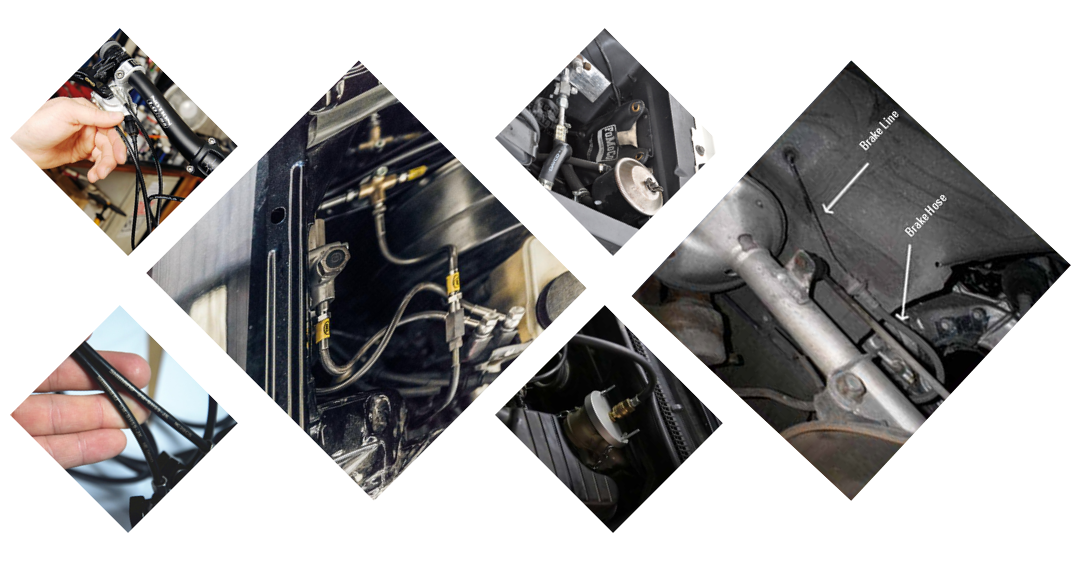

application

Automobile or motorcycle hydraulic brake system
