28 TON Pneumatic Hydraulic Bottle Jack

Supplier: Jiaxing Relia Hardware Co., Ltd.
Region: Zhejiang, China
Contact: Ms HONG XIAO
Price: $30.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Type:	Bottle Jack;	Place of Origin:	Zhejiang China;
Supply Ability:	1000 Piece/Pieces per Month;	Min Height:	195mm;
Certification:	CE GS;	Application:	lifting truck, car repairing, construction;
Port:	SHANGHAI;	Color:	Red/ Blue/ Black, etc.;
Capacity:	20-30T;	Packaging Detail:	Common export packaging, bar codes and custom labels are optional, we can also follow your requirements..;
Max Height:	405mm;	Capacity (Load):	21-30T;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Model Number:	Jack;
Brand Name:	OEM;

Product Description

Air hydraulic bottle jack can operates both manually & pneumatically.
Fast efficient air pump to save on lifting time, has its own built-in safety valve to prevent overload.
Heat treated extension screw & release valve for extra strength and longer life.
Extremely strong & sell designed swivel head bolt with 360 degree movement to prevent hose binding.
Spring coil protectors on both hose ends to prevent punctures.
Rust prebentive coating on ram and extension screw.
Convenient push button flap type air operation valve.

Air Hydraulic Bottle Jack
Model	RL-J02005	RL-J02012	RL-J02020	RL-J02032	RL-J02050
Capacity	5 TON	12 TON	20 TON	32 TON	50 TON
Min height	210mm	250mm	260mm	260mm	280mm
Adjust height	60mm	80mm	80mm	/	/
Lifting height	160mm	150mm	150mm	155mm	160mm
Max height	430mm	480mm	490mm	415mm	440mm
Packge size	181522cm	241829cm	282228cm	302227cm	373029cm
N.W./ G.W.	6/ 7kgs	12/ 13kgs	17/ 18kgs	21/ 22kgs	34/ 35kgs
QTY/20'CY	2300pcs	1450pcs	1080pcs	730pcs	650pcs

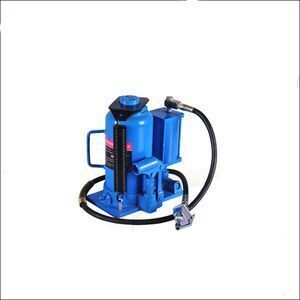

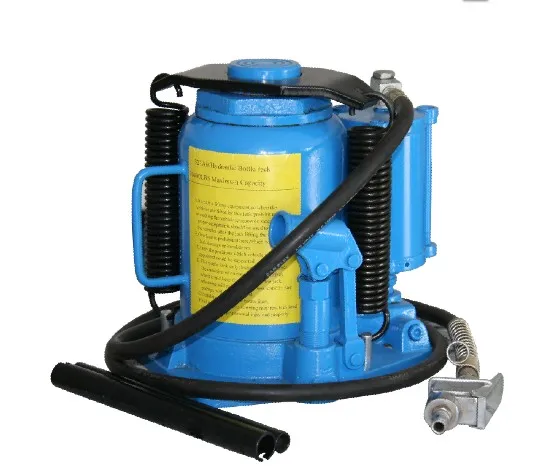

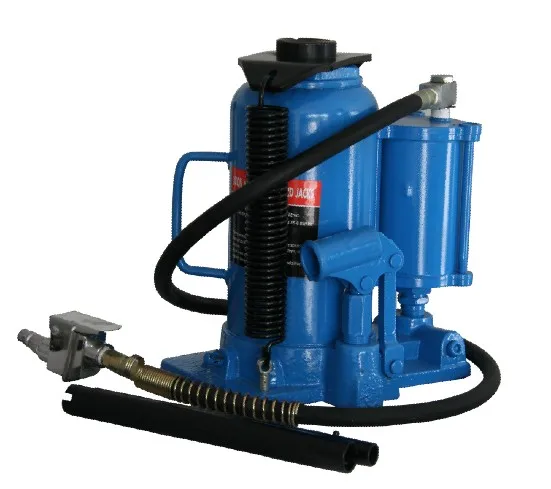

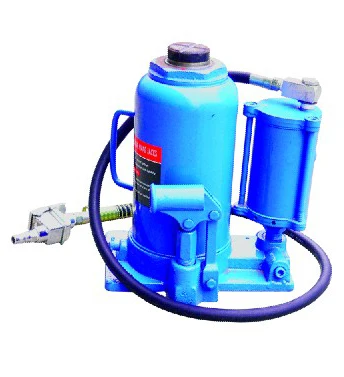

Product Picture
