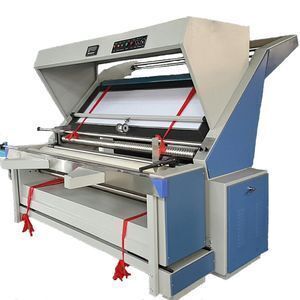

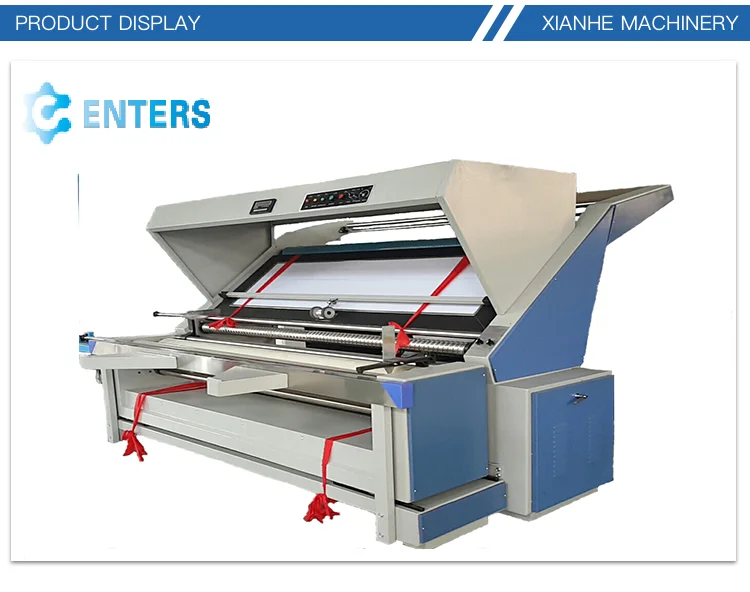

Home Textile / Fabric Inspection Machine

Supplier: Jiangsu Xianhe Machinery Manufacturing Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ashley Dai
Price: $3600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,T/T,Western Union;	Place of Origin:	Jiangsu China (Mainland);
Port:	Shanghai;	Production Capacity:	50 m/min;
After-sales Service Provided:	Engineers available to service machinery overseas;	Voltage:	220V 50Hz;
Application:	FABRIC INSPECTING;	Warranty:	1 Year;
Power(W):	1100W;	Features:	Inspection Machine;
Packaging Detail:	Fabric/Home Textile Inspection Machine Inner Package:Protective Film,etc. Outside Package:Wooden Case;	Automatic Grade:	Automatic;
Condition:	New;	Color:	Blue / Customizable;
Supply Ability:	50 Set/Sets per Month;	Weight:	450kg;
Dimension(LWH):	2000mm1200mm800mm;	Accuracy:	± 3 mm;

Product Description

The machine is used for the inspection and rolling of finished products.It is also suitable for the winding of laminated materials.The width cutting device can be added according to the needs of customers ,so as to get an ideal width.

Features:

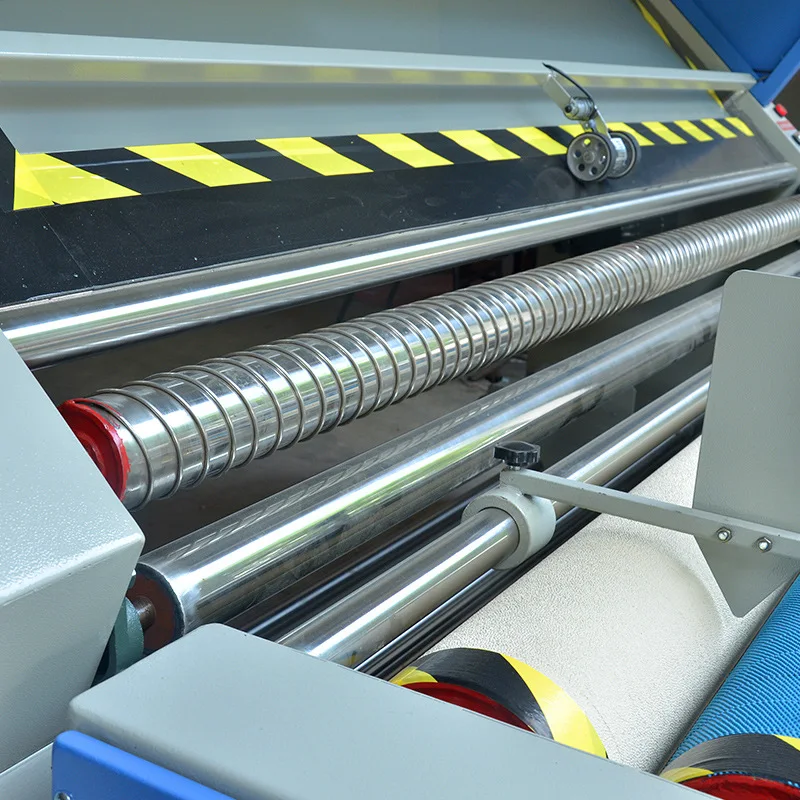

It uses box iron frame and integrates rolling and inspection.

1.Compact structure, simple operation, small sized and high availability. It is good in quality and beautiful in design.
2. It can use frequency control or adjustable-speed motor to regulate speed within a certain limits. It features easy operation. The computer controlled timing is conducive to site management as it can read the length of time.
3. Customers may choose: Infrared ray photoelectricity edging control, hydraulic edging adjustment system with difference smaller than 5 mm.

Main Technical Specifications

1.Machine Name: Fabric Inspection Machine

2.Working width: 1800mm

3.Max. Material Width: within 1600mm

4.Inspecting speed:0-80 m/min

5.Dimension (L*W*H):about 2000 mm*1200 mm* 800mm

6.Voltage:380V/220V

7.Gross Power: about 1.5kw

8.Weight: about 300kg

9.Max. winding Dia.:380mm

10.Warranty: 1 year

11.Rectifying type:Hydraulic

12.Deviation correction accuracy: ±3mm

Packaging & Shipping

Inner Package: Protective Film, etc

External Package: Wooden Case

English version operation manual and technical data;
One-Year-Period wear parts;

Our Services

Free Installation Training
24 Hour Service Action
Spare Parts Replacement
Free Machine Knowledge Update
We according to customer needs,providing tailored services to design laminating equipment of satisfying requirements.
