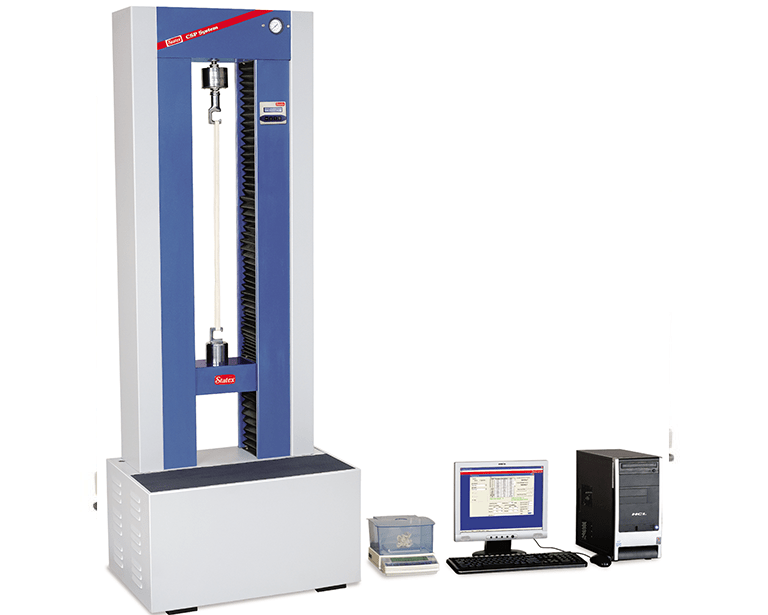

Best-selling CSP system Model 666 measures both leak intensity and leak count Accurately measures outlet

* Lea strength measured by the constant elongation principle.

Specifications:
* Two instruments can be operated independently and simultaneously.
* The double-screw mechanism drives the hook perpendicular to the load to accurately measure the breaking load.
* The lower jaw automatically engages and returns.
* Automatic self-alignment of upper and lower jaws for precise measurement
* The test speed is 300mm/min
* Test range: 0-500LBS
* It is composed of rigid bodies for better stability.
* Each lead screw contains dual guide rails for precise parallel and free movement.
* Pressure sensor ensures reliable operation of the instrument.

CSP Lab Data Software:
* User-friendly "Windows-based software" or most tested, eg

1) Winding test of sliver, roving, yarn.
2) Comber noil test.
3) Simplex roving tensile test.
4) Draw frame autoleveling test.
* Provisions are provided to design the printout format according to the user's choice.
* Graphical representations of histograms, line charts and stacked bar charts are supported for most tests.
* In the case of draw frame autoleveling tests, potentiometer readings can be given for testing purposes and the same readings can be seen graphically for trending.
* Results should be compared between groups.
* Weekly, monthly etc. periodic reports can be obtained for each department, institution group and individual machine for better analysis.

Result parameters:
* Numeric reports: individual counts, intensity and CSP.
* Statistical reports: mean, CV%, min, max, range, standard deviation and Q95%.
* Periodic Statistical Reports: Periodic reports can be made for all departments with user defined inputs.
* Graphical Reports: Variation graphs for individual tests, period variation graphs for user-defined averages and CV%
enter.
