High pressure air valve solenoid valve 321H35

Supplier: Ningbo Mingge Pneumatic Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Alex Lock
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Ningbo or Shanghai;	Application:	General;
Temperature of Media:	Medium Temperature;	Ambient Temperature:	-5~50℃;
Supply Ability:	2000 Piece/Pieces per Month;	Voltage:	DC24V,AC220V~230V;
Port Size:	1/2", 3/4";	Name:	solenoid valve 321H35;
Working pressure:	0.2~5Mpa (2~50Bar);	Type:	Normally Colsed;
Packaging Detail:	Plastic Bag, Inner Box, Carton, Pallet;	Structure:	Diaphragm;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;	Pressure:	High Pressure;
Power:	Solenoid;	Brand Name:	MING GE;
Material:	Brass;	Standard or Nonstandard:	Standard;
Medium Temperature:	-5~80℃;	Media:	air/water/gas/oil;
Place of Origin:	Zhejiang China;	Connection:	G1/2", G3/4"(NPT Available);
Orifice:	15mm;	Model Number:	MG22H40-15, MG22H40-20;

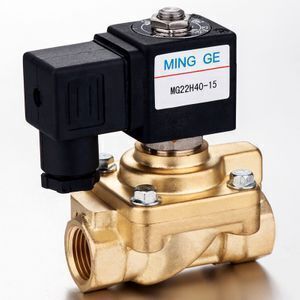

High pressure solenoid valve 321H35

2/2 Way Solenoid Valve for High Pressure pneumatic applications - 40 bar (Normally Closed )

It can perfect replace the Parker 321H35, 321H36 type valve. and used widely in plastic bottle blowing machine (PET blowing machine).

Applications:
The life expectancy of several millions of cycles, with response time of few milliseconds, allows the use of these solenoid valves on intensive applications and on high technology machines, as the plastic bottle blowing machines, or the laser cutting machines.

Feature
This guiding type valve adopts the diaphragm seal structure, with zero differential pressure starting function, large flow, simple structure, easy maintenance, good waterproof performance and mutiple wiring directions.

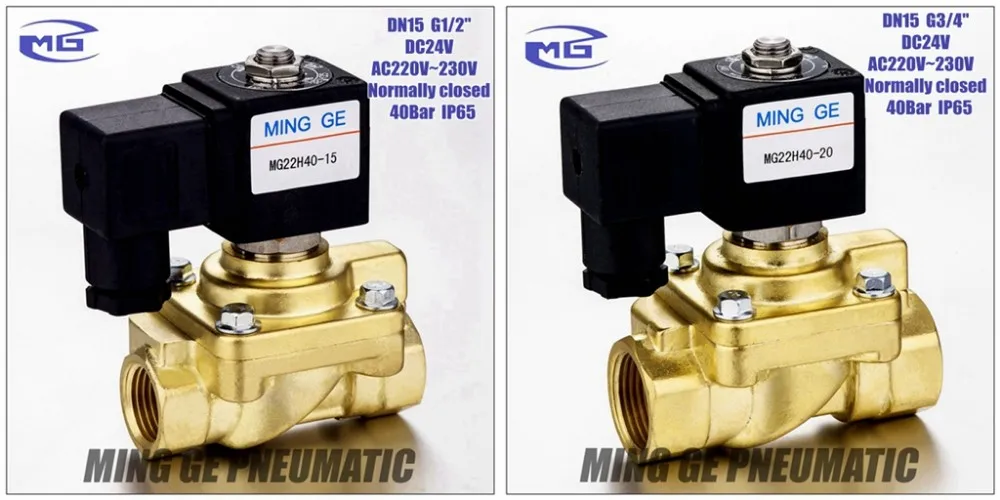

Product Name	2/2 Way Solenoid Valve for High Pressure pneumatic applications - 40 bar
Model	MG22H40-15, MG22H40-20
Orifice size	15 mm
Pipe mounting Thread	G 1/2", G 3/4" (NPT Available)
Working pressure	40 bar(maximum 50 bar)
Type	Pilot operated Normally closed solenoid valve
Brade	MING GE
Voltage	DC24V, AC220V~AC230V
Coil	Standard Coil Mono-Frequency, F Class, IP65
Used	Plastic bottle blowing machine (PET blowing machine), laser cutting machines.

Packing Details : Plastic Bag, Inner Box, Carton, Pallet

Delivery Details : 7 working days after payment

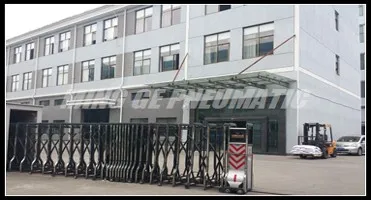

Factory

Our Factory

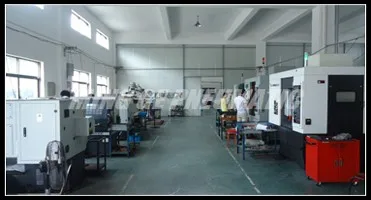

Workshop

Our Workshop

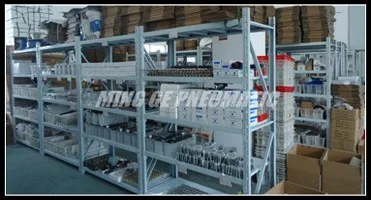

Warehouse

Our Warehouse

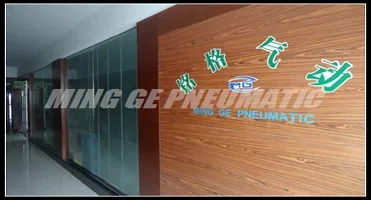

Office

Our Office

Q: Are you trading company or manufacturer ?

A: We are manufacturer

Q: How long is your delivery time?

A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% T/T in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
