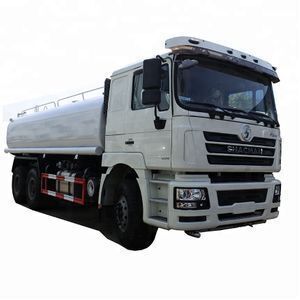

SHACMAN 19000Liters water sprinkler truck, water transporation truck with 290HP engine Power

Supplier: Chengli Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms xi chen
Price: $48000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Allowable passengers in cab:	3;	Transmission Type:	Manual;
Color:	customized;	Emission Standard:	EURO 5;
Dimension (L x W x H):	996025503200mm;	Selling Units:	Single item;
Single gross weight:	11,400 KG;	Brand Name:	CLW;
Product name:	water sprinkler truck;	Fuel Type:	Diesel;
Single package size:	9960X2550X3200 cm;	Package Type:	Nude packing and waxing before shipment.;
Horsepower:	290hp;	Tank Volume:	12000L;
Place of Origin:	Hebei China;	Max Speed (km/h):	99;
Gross Vehicle Weight:	25000;	certification:	3C, ISO 9001;
Condition:	New;

Product Description

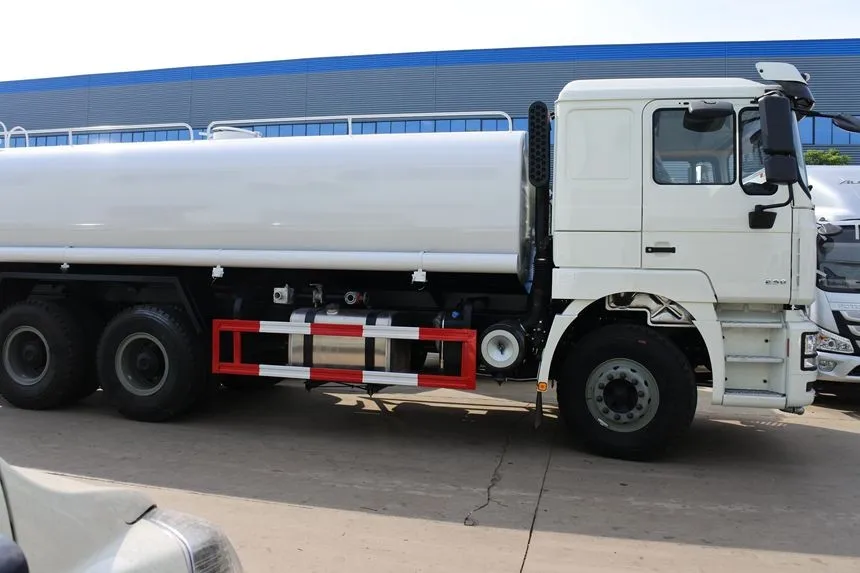

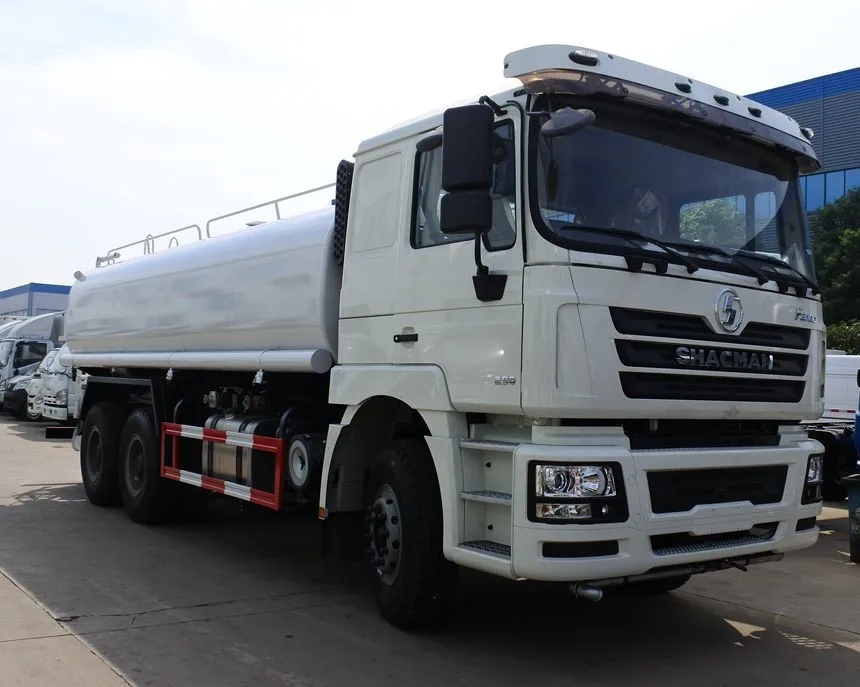

SHACMAN 19000Liters water sprinkler truck, water transporation truck with 290HP Power

SHACMAN 19000Liters water sprinkler truck, water transporation truck with 290HP Power,This water truck can be loaded around 19cubic meters of liquid. It has the function of sprinkling, spraying, planting,watering, washing, rushing,misting and transporting,etc.

Subject	SHACMAN 19000Liters water sprinkler truck, water transporation truck with 290HP Power
Overall Dimension	*996025503200mm*
Capacity	19000Liters
Chassis Brand	SHACMAN
Chassis Model	SX1250MB4
Wheelbase	4375+1350mm
Gross Weight	25000kgs
Curb Weight	11400KGS

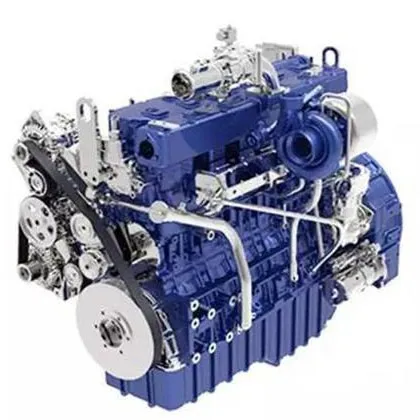

Engine
Engine Brand	WEICHAI
Model	WP7.300E51
Type	In-line, 6-cylinder, water cooling, 4-stroke,supercharging intermediate cooler, high pressure common rail
Displacement Volume(ml)	7470
Net Power(kw)	Min 220 KW at rated RPM
Fuel Type	Diesel
Emission Standard	From Eour3 to Eour5

Clutch System	Model	Single plate, dry friction
Steering System	Power Steering	Left hand driving, RHD is available
Transmission System	Manually operated	7-forwards and 1- reverse
Brake System	Service Brake	Hydraulic disk brakes
	Park Brake	Air Brake & Hand Brake,
Suspension System (Front & Rear)	Semi-elliptical leaf spring with telessopic shock absorber (both front & rear)
Tyre	Tyre Quantity	10 pcs
	Tyre Specification	11.00R20 16PR
Cabin	SHACMAN F3000 Cabine,A raw of a half cab of 3 persons (including driver) , ABS, electric glass, air condition,adjustable headlights,USB,RUPD,etc

The body Structure

Tank Body	Capacity	19000Liters
	Material	The tank is made of 5mm high-quality carbon steel Q235, and the inner has anti-wave board design.
Function	Sprinkling Width	≥20 meters
	Effective Suction Distance	≥8 meters
	Water-cannon Head	≥35 meters
	Area of sprinkler in the rear	≥15 square meters
	Area of Spray at the side	≥20 square meters
	Rotate speed of Pump	≥1180R/Min

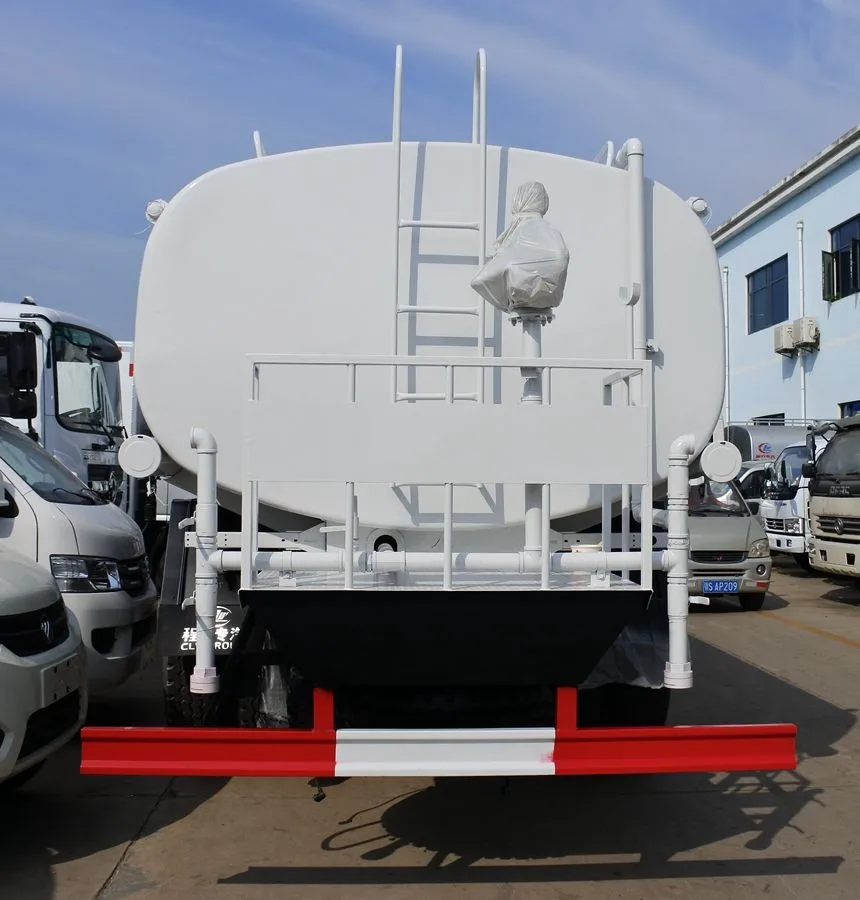

Sprinkling system	a. The sprinkling pump can be self-priming and self-discharging. b. The truck has the function of watering in front, sprinkling in the rear, spraying at the side and with 65mm fire-fighting interfaces, c. The rear platform is equipped with sprinkler head. The sprinkler head can rotate in all directions and can be continuously adjusted into straight flush, heavy rain, light rain and drizzle. d. There is a water level gauge fixed in the front head of tank. e. The top of the tank has a manhole cover for easy access into the tank for cleaning. Open the manhole cover when adding water into the tank.
Coating	a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects. b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability. c. Tank color is customerized if necessary
Warning	Warning signs such as "stop at any time" and "keep the distance" can be sprayed on the back of platform.

The whole tank is sprayed with antirust paint

Spare Parts Supply:

SHACMAN 19000Liters water sprinkler truck, water transporation truck with 290HP Power, please be noted that we have our own spare parts warehouse. We can satisfy your demand within 2~7days. Also we can provide spare parts for many brands, such as SINOTRUCK, BEIBEN, FAW, FOTON, IVECO ,SHACMAN, DONGFENG, JAC and so on.

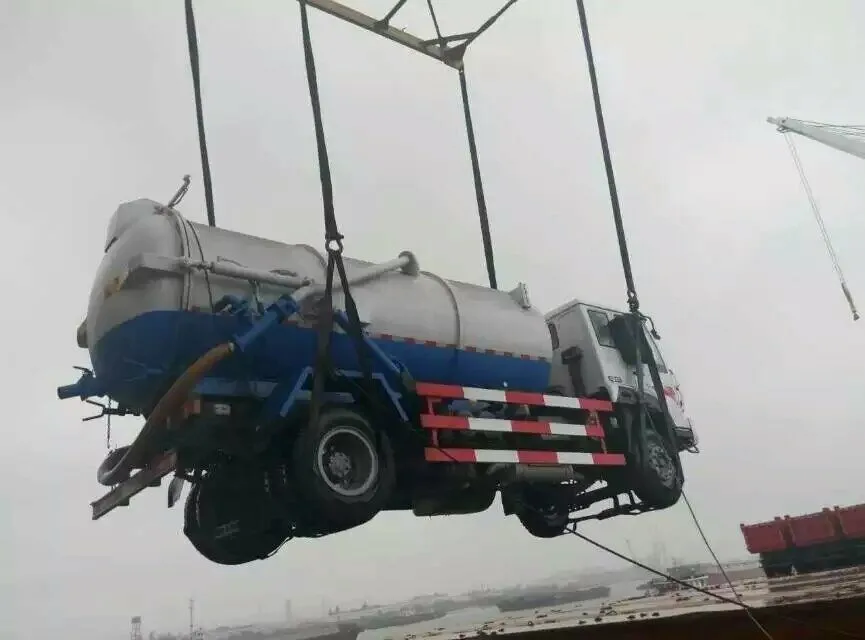

Packing & Delivery

By container

By Bulk

By RO-RO Ship

Our Service

1. We are the biggest professional special trucks manufacturer in China,being in this field for 15 years.

2. We can supply more than 300 kinds of special trucks for your needing.

3. OEM Sevice: we can produce the trucks according to your request,such as the material,the size,the colour and the logo is optional for you.

FAQ

Q: Can I buy a sample of your product for testing?

A.Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: L/C, T/T, paypal or other ways. 30% paid before order, 70% balanced before delivery.

Q: Ho to ensure that customers get the goods after pay for the money?

A: Don't worry,my client. We had joined the trade credit insurance. You can pass the trade protection in place, and the deposit will get back to alibaba. If we do not deliver the product, the deposit will be returned to you.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our product has gain ISO 9001:2008,CCC and B&V certificate, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why choose us?

A: We are self-produced and self-selling manufacturers, and we have more than 15years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. Supply the spare parts at factory price all the time.

Q:Can we visit your factory before purchasing?
A: We welcome you to visit our factory, and will show you our production line .
