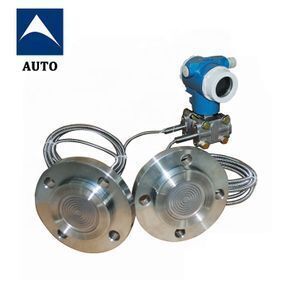

3051 smart differential pressure level transmitter with Capillary

Supplier: Yantai Auto Instrument Making Co., Ltd.
Region: Shandong, China
Contact: Ms Hong Shi
Price: $300.00 /set
Min. Order: 1 set

Click here to contact

Product details

flange:	DN50 DN80 DN100;	Working Temperature:	-25 to +270 C;
Packaging Detail:	Wooden Carton;	Supply Ability:	500 Set/Sets per Month;
Current Output:	4 - 20 mA 2 wires Hart Protocol;	Digital Signal:	HART protocol;
Range:	0~0.2 kPa to 0~35MPa;	Payment Terms:	L/C,T/T;
Electrical Joint:	M20*1.5" or 1/2-14NPT;	capillary length:	1-6m;
Place of Origin:	Shandong China (Mainland);	Power Supply:	24 V DC;
Process Fluid:	Liquid, Gas, Vapor;	Port:	Yantai;
Brand Name:	AUTO;	Model Number:	AT3051 DP;

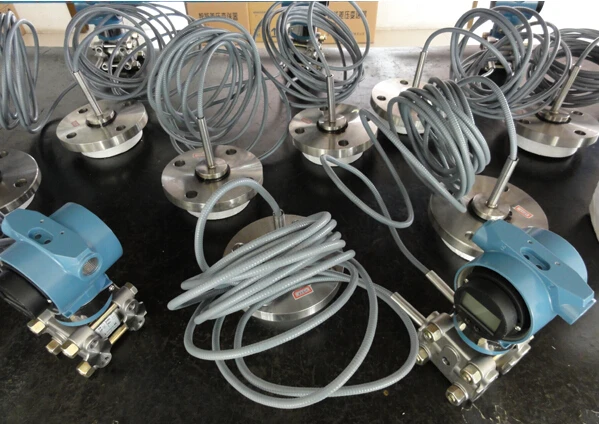

Double-flange Remote Differential Pressure Transmitter

Product Description

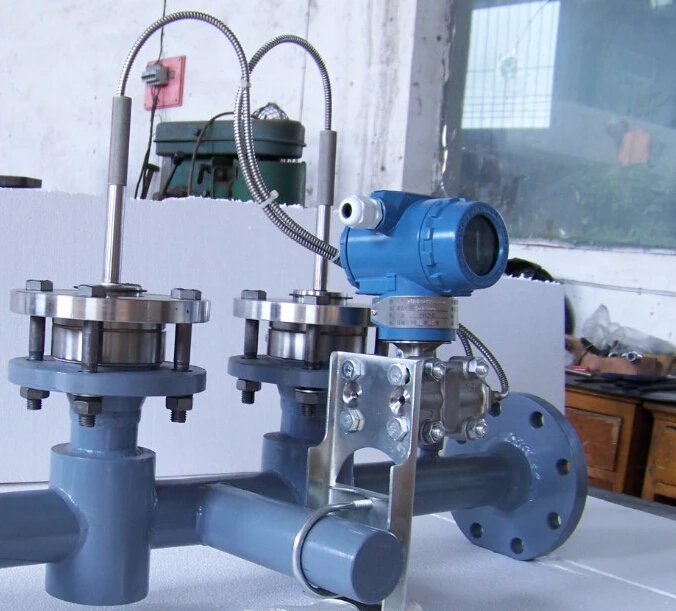

Double-flange Remote differential pressure transmitter device is used to prevent pipe directly into the transmitter in the medium pressure sensor assembly, between it and the transmitter is filled with fluid by capillary connecting, 3051GP remote pressure transmitter used to measure pressure liquid, gas and steam, and then outputs the signal pressure corresponding 4-20mADC transmitted. 3051GP can communicate with each other HART Communicator, through its setting and monitoring.

Parameter

Max ref accuracy:±0.075%calibration range
Stability:6months,±0.1%URL
Static pressure:13.79Mpa
Isolation diaphragm:316Lstainlesssteel,HC,Monel,tantalum
Stability:6months,±0.1%URL
Current output:4 - 20 mA 2 wires Har t Protocol
Power supply:24VDC
Damping time constant:time constant is adjustable, in 0.1 second increments from aminimum to 16 seconds.

Order sheet

Name	Specification code	Explanation
3051GP		Double-flange Remote Pressure transmitter
	4	(0.062-0.374)bar
	5	(0.31-1.868)bar
	6	(1.17-6.9)bar
	7	(3.45-20.68)bar
	8	(11.7-68.90)bar
Output Signal	E	4-20mA
	S	4-20mA, HART Protocol Communication
Installation flange	C1	1” (DN25)
	H5	2” (DN50)
	A8	3”(DN80)
	B10	4”(DN100)
Wetted Parts Material		Flange/Joint	Exhaust/Drain Valve	Diaphragm
	22	Stainless Steel	Stainless Steel	316L Stainless Steel
	23			Hastelloy C-276
	24			Tantalum
Display Header (optional)	M2	Linear Pointer Header (0~100% scale)
	M3	Square Root Instruction Header(0~100% scale)
	M4	LCD Header( linear display)
capillary length	a	1-2m
	b	2-4m
	c	4-6m

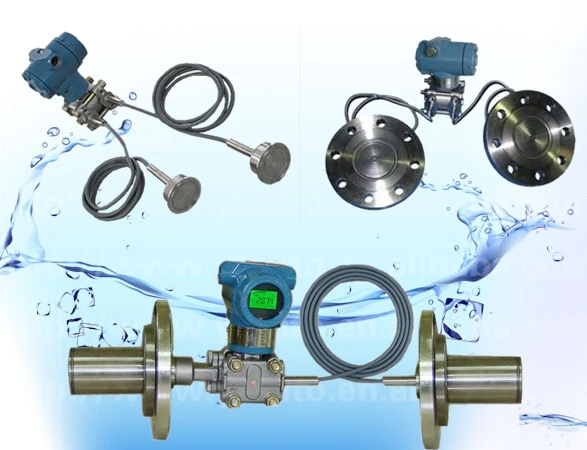

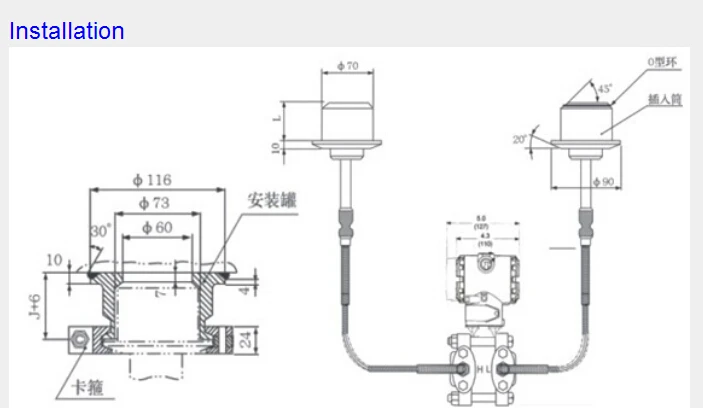

Type	1	Flange type
	2	Insert the cartridge
	3	Sanitary clamp type
