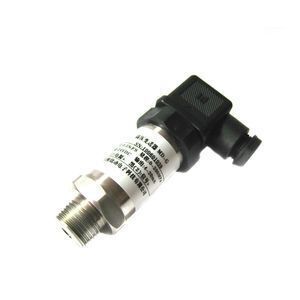

4-20mA industrial absolute differential pressure transmitter

Supplier: Meokon Sensor Technology (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Calin Sun
Price: $50.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Shanghai China (Mainland);	Operating temperature:	-40~85℃;
Port:	Shanghai;	Supply:	9-32VDC ( Typical: 24V );
Accuracy:	0.5%FS 0.25%FS 0.15%FS;	Connector:	M20*1.5, G1/2, G1/4 , ZG1/4,R1/4(selectable);
Output signal:	4-20mA;	Pressure range:	-100Kpa-0...5...100Kpa...1...5...10...25...60Mpa;
Packaging Detail:	Standard pressure indicator transmitter export packing or follow the customer' requirements;	Delivery Detail:	20 Days;
Shell:	Stainless Steel;	Product type:	MD-G High-precision General Pressure Transmitter;
Model Number:	MD-G;	Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;
Supply Ability:	2000 Piece/Pieces per Month;	Brand Name:	Meokon;
Electric protection:	Reverse connect protection, Anti frequency interference;	Application:	Liquid, gas, water;

Product Description

4-20mA industrial absolute differential pressure transmitter

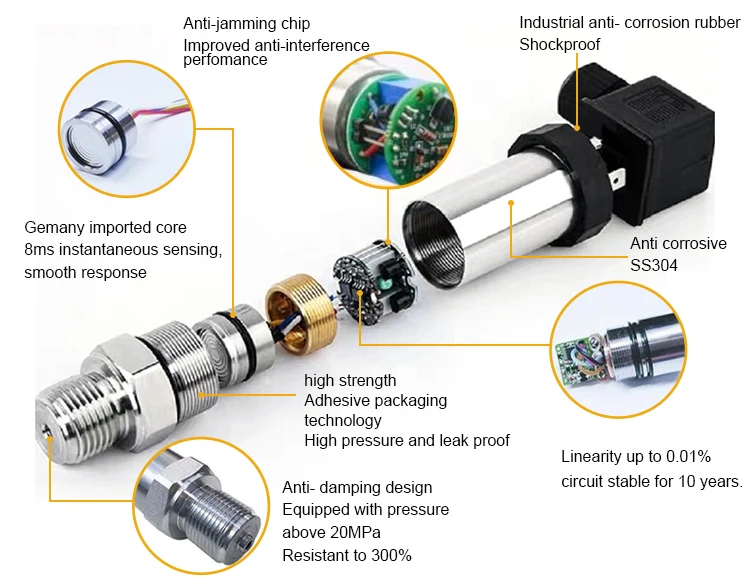

MD-G series high precision pressure transmitter adopts imported chip as the sensing chip.The transmitter has the followed advantages: compact structure, excellent anti-jamming performance of the internal circuit, full sealing stainless steel interface.

The design of IP65 protection grade and explosion-proof type ensure the use in various environments and situations.Excellent long-term stability and high precision of the MD-G series pressure transmitter can be widely used in a variety of fields.

Application

•Medical equipment •Machine automation

•Source and water treatment system •Medical equipment

•Hydraumatic and pneumatic system •Agricultural machinery

•Pump&compressor •Engineering machinery

•Other automatic control and inspection systems

Range	Gage Pressure:-100kpa~0...5kpa...100KPa...1...5...10...25...60Mpa Absolute Pressure:0~5KPa..10KPa...20KPa...100KPa...1000KPa
Overload Pressure	≤10MPa 200% ; >10MPa 150%
Response Time	≤2ms
Accuracy grade	0.5%FS 0.25%FS 0.15%FS
Long-term Stability	Typical:±0.1%FS/year
Temperature effect on zero	Typical:±0.02%FS/℃,Max±0.05%FS/℃
Sensitivity Temperature drift	Typical:±0.02%FS/℃,Max±0.05%FS/℃
Operating Temperature	-40~85℃
Compensation Temperature	-10~ 70℃
Storage Temperature	-40~100℃
Electric Protection	Reverse connect protection, Anti frequency interference
Protection Grade	IP65(DIN), IP67(Straight out)
Measurement Medium	Gas, water, oil
Pressure Connection	G1/4, G1/2, M20*1.5, ZG1/4,R1/4(selectable)
Shell	Stainless Steel
Supply	9-32VDC (Typical24V)
Output Signal	4-20mA
