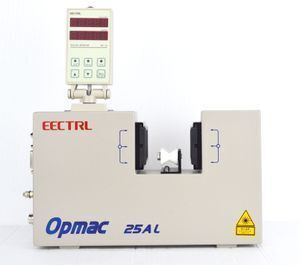

OPMAC 25AL3-N laser diameter measuring device laser diameter measuring instrument

Supplier: Shanghai Gongjiu Electric Co., Ltd.
Region: Shanghai, China
Contact: Mr Alex Gu
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Package Preview:	https://sc02.alicdn.com/kf/HTB1v9JGDHuWBuNjSszgq6z8jVXad.jpg_640x640.jpg;	Type:	Laser Distance Measuring Instrument;
Measurement Accuracy:	±1um±0.08%xDz;	Brand Name:	EECTRL;
Model Number:	OPMAC-25AL3;	Certification:	CE FCC ROHS;
Delivery Detail:	0 days after payment;	Place of Origin:	Shanghai China (Mainland);
Size:	29017562mm;	Single package size:	625X225X495 cm;
Warranty:	2 Years;	Selling Units:	Single item;
Single gross weight:	9.8 KG;	Weight:	10.3KG;
Package Type:	Cardboard box;	Measurement Range:	0.1-25MM;

Product Description

Instructions
1. Suitable for online measurement of various type of
wire, cable, tube and pipee;
2. Using F optical lenses to avoid the aect of shaking of the
object;
3. Multi-function and free rotation operation panel;
4. Built-in PID module, controlling the diameter of the
object automatically;

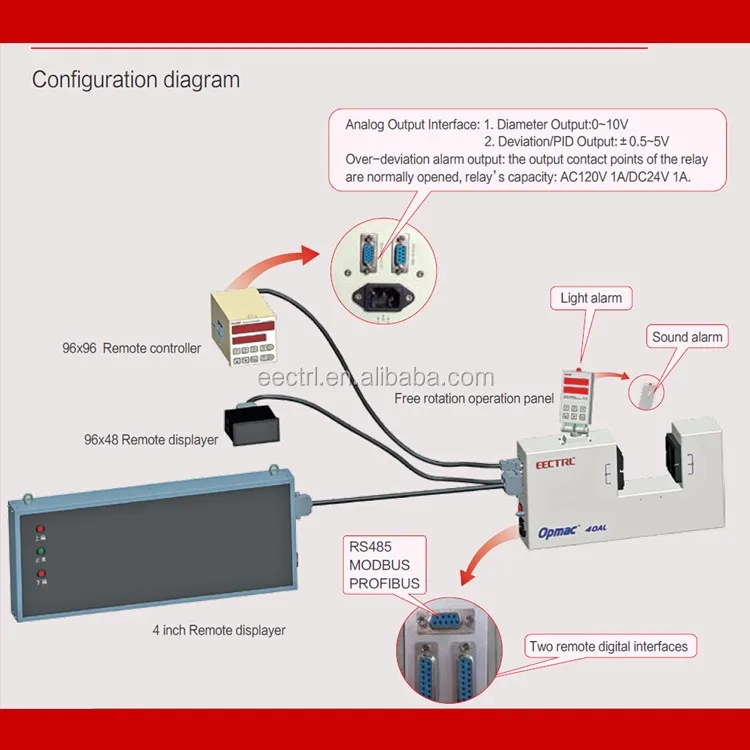

5. Two analog output, multiple remote interfaces which
can connect to one controller and two displayers at
the same time;

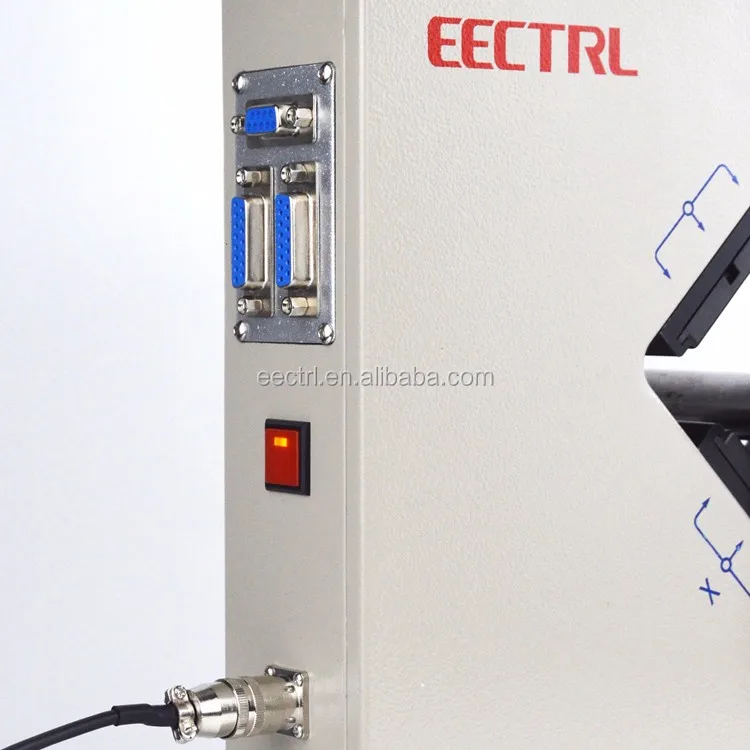

6. RS232/485, PROFIBUS DP and MODBUS interface;

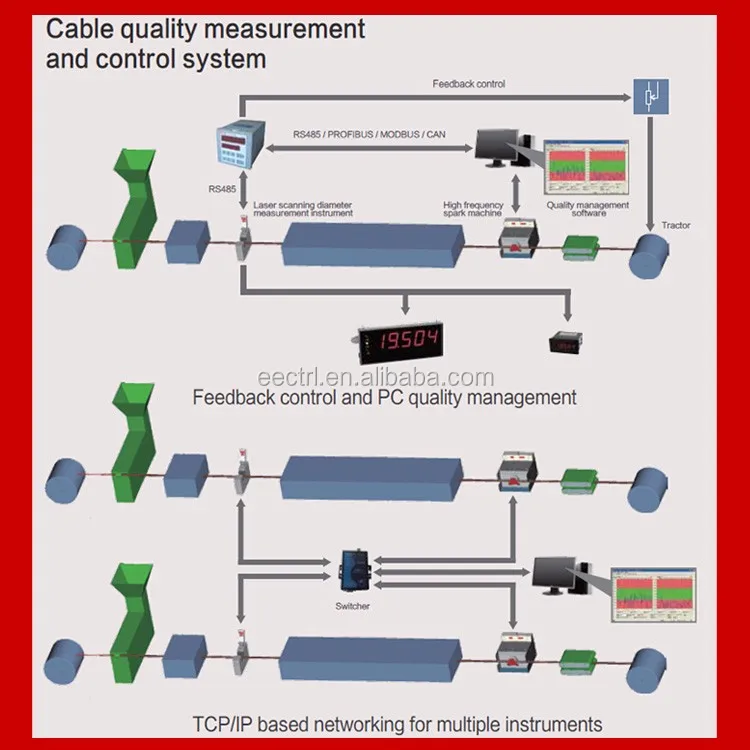

7. Optional quality management software, real-time
recording the diameter of the object;
8. Adapting to severe environment.

Specififactions
Model	Measuring Method	Range	Resolution	Accuracy	Dimension	Packaging Dimension	Weight
Opmac-5AL3	Single	0.03-5mm	0.001	±1μm ± 0.008%×XZ	2009090mm	535200355mm	8.5kg
Opmac-5AL4	Single	0.03-5mm	0.0001	±0.4μm ± 0.008%×XZ	2009090mm	535200355mm	8.5kg
Opmac-25AL3	Single	0.1-25mm	0.001	±1μm ± 0.008%×XZ	29062316mm	624224494mm	10.3kg

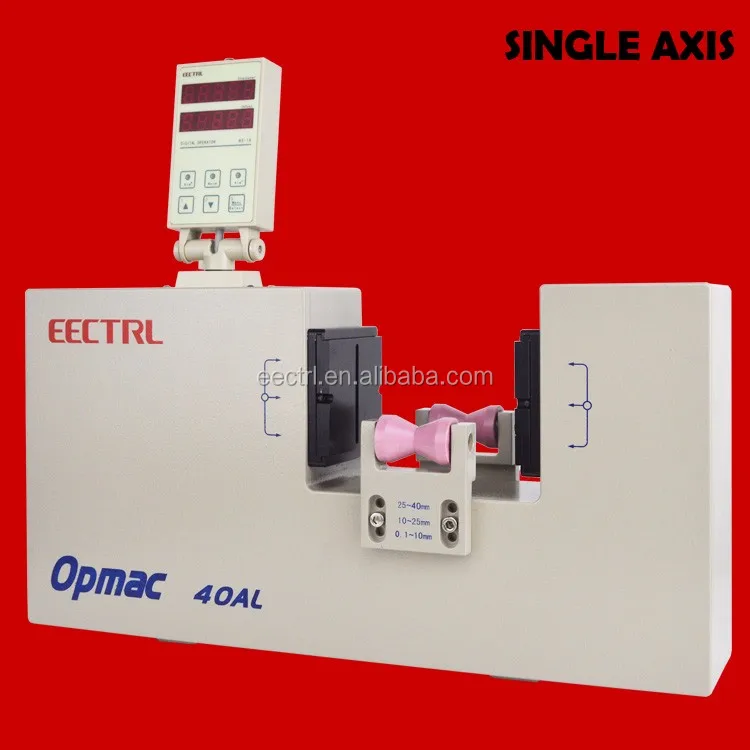

Opmac-40AL3	Single	1-40mm	0.001	±1.5μm ± 0.008%×XZ	400105344mm	754239549mm	13.5kg
Opmac-50AL3	Single	1-50mm	0.001	±1.5μm ± 0.008%×XZ	500105355mm	715215575mm	15.5kg
Opmac-70AL2	Single	1-70mm	0.01	±10μm ± 0.008%×XZ	71080188mm	839219619m	17kg
Opmac-90AL2	Single	1-40mm	0.01	±10μm ± 0.008%×XZ	66080421mm	754214689mm	22kg
Opmac-90AL2	Edge	40-100mm	0.01	±10μm ± 0.008%×XZ	66080421mm	754214689mm	22kg
Opmac-140AL2	Single	1-45mm	0.01	±10μm ± 0.008%×XZ	59780410mm	754214689mm	35kg
Opmac-140AL2	Edge	45-140mm	0.01	±10μm ± 0.008%×XZ	59780410mm	754214689mm	35kg
Opmac-250AL2	Edge	40-250mm	0.01	±10μm ± 0.008%×XZ	118080753.5mm	customized	48kg
Opmac-280AL2	Edge	40-280mm	0.01	±10μm ± 0.008%×XZ	138580753.5mm	customized	52kg

Our Adventages
Stable·Accurate·Smart

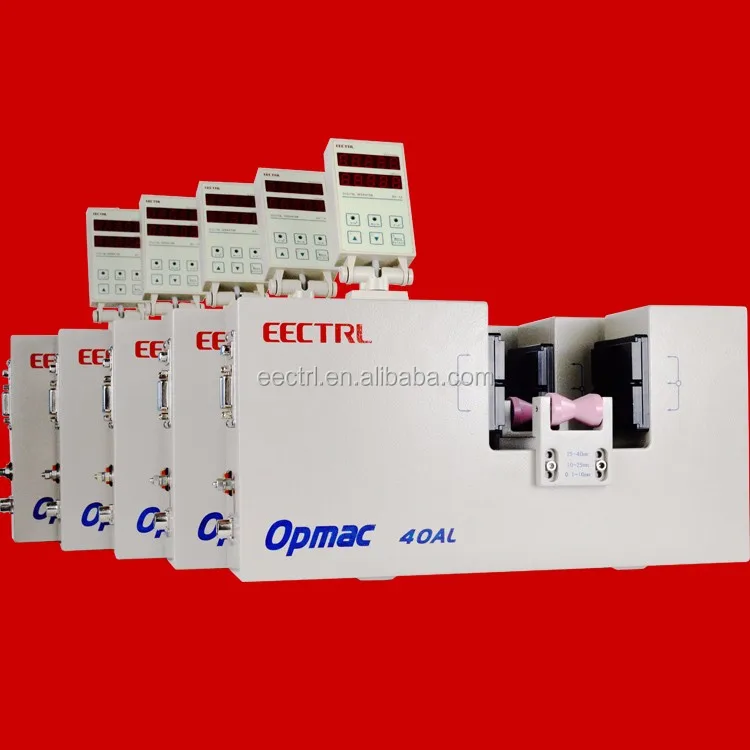

OPMAC series Laser Scanning
Diameter Measuring Instrument
Since 1989

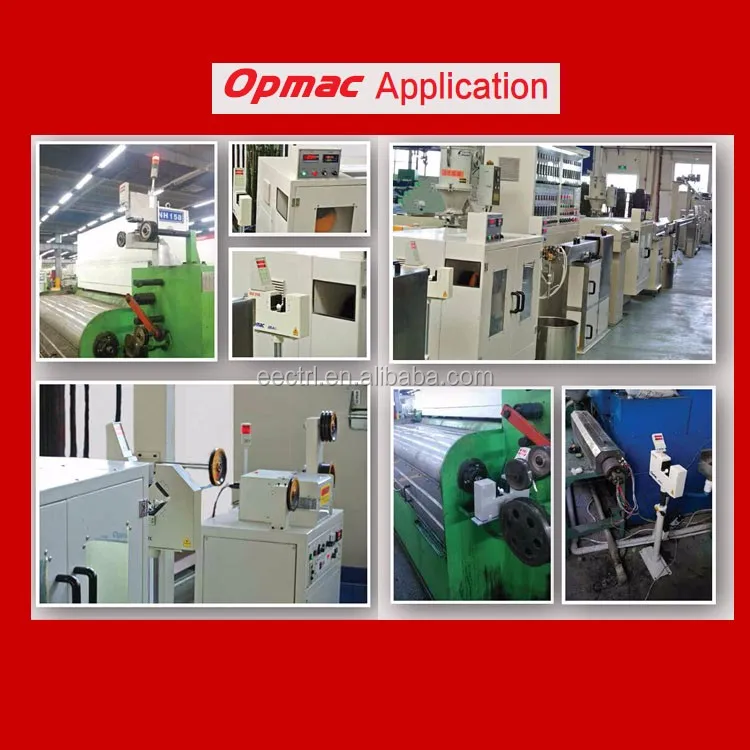

Ideal choice for online diameter measurement of all kinds of wire,
metal stick, glass pipe, tube, and so on.
