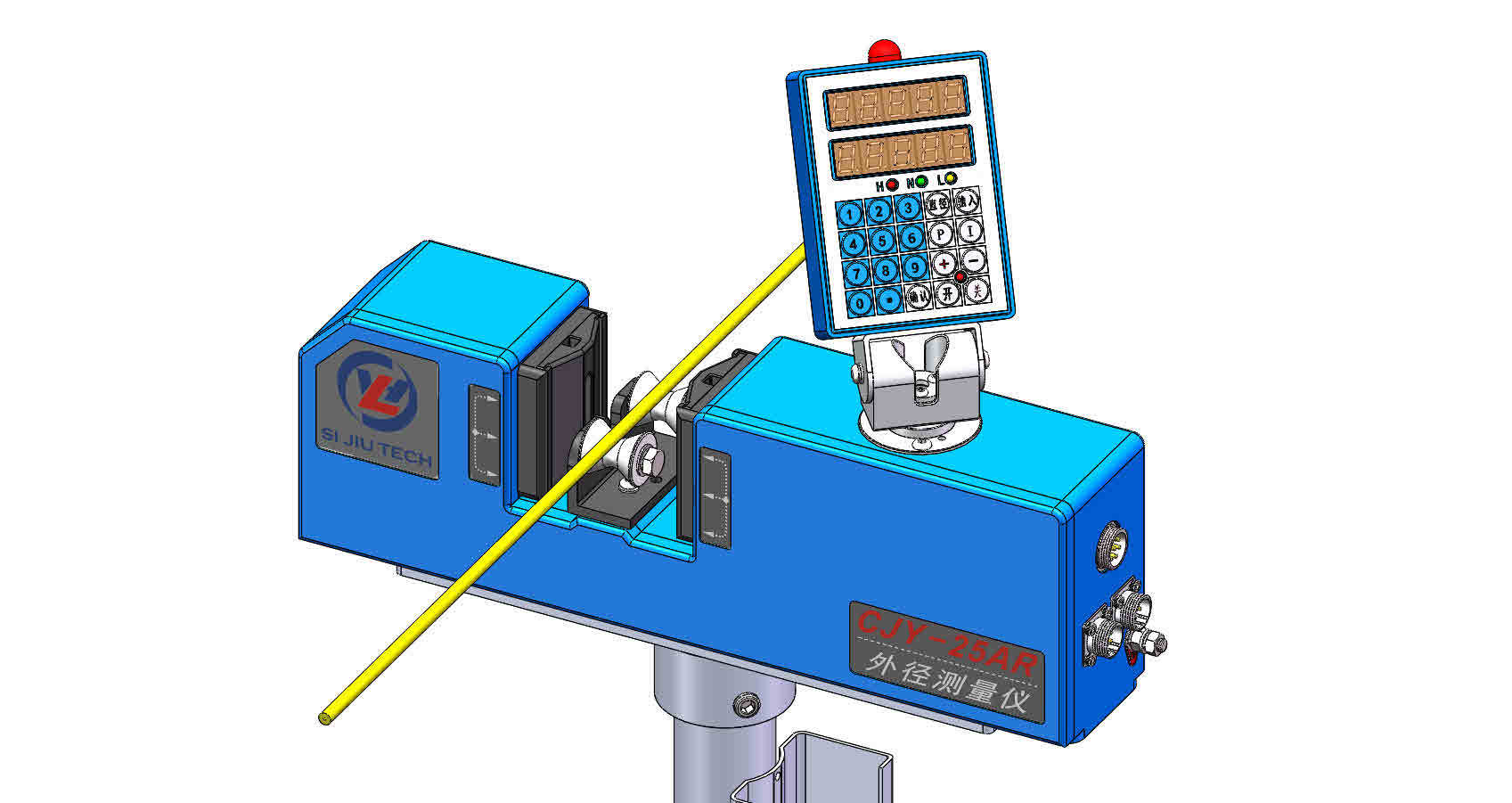

Wholesale custom high quality electronic caliper measuring laser caliper

Click here to contact

Product details

Product Description

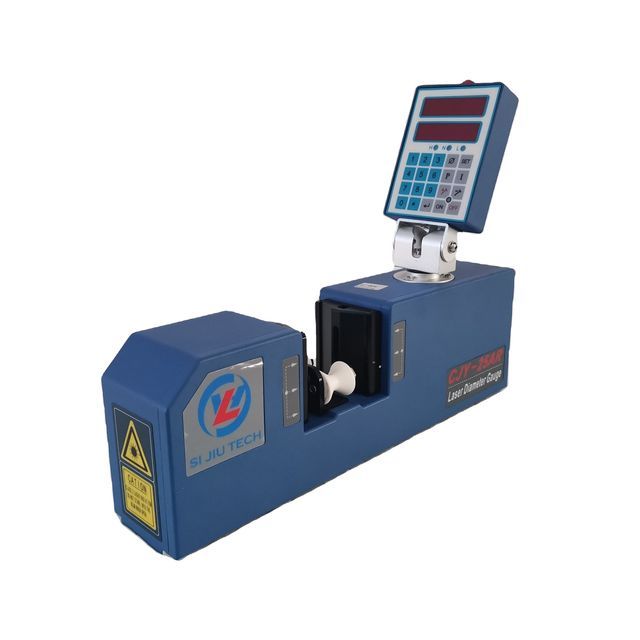

Product number:	CJY-25AR
Measuring range:	0.1-25mm
measurement accuracy:	± 2 μm ± 0.008% Dz mm ("Dz" is the actual diameter of the measured object)
solve:	0.001mm
Scan speed:	600 scan cycles/s
Display mode:	Double-row 5-digit digital tube display
Working Standards:	Non-Contact Laser Scanning
light source:	The second generation visible laser, wavelength 650nm
communication method:	Communication method: RS485 interface is used to communicate with other equipment (communication protocol: 1.ASCⅡ code protocol; 2. MODBUS RTU protocol)
Data Acquisition and Analysis:	Support (need an external computer and install related software)
Abnormal alarm function:	Double relay contact output, upper and lower deviation signals output respectively (external sound and light alarm 24V DC and the following)
power supply:	100V~240V AC/1.0A 50~60HZ
Product power consumption:	≤ 40W
Working temperature:	0~45℃
Working environment humidity:	35-85% (non-condensing)
Other environmental requirements:	The air does not contain corrosive gas, violent volatile oil, water vapor and dust.
Product Weight:	About 2.8KG
Product Size:	31965250mm
Product Protection:	IP65
