450nm blue dot laser diode module 1mw 16mmx70mm or 22mmx110mm details
After-sales Service Provided:Engineers available to service machinery overseas;Model Number:SMB;
Brand Name:SUNDAY;Size:16mmx70mm or 22mmx110mm;
Output power:1mw;CNC or Not:Yes;
Application:Other;Packaging Detail:carton case,firm and safe package for air transmission;
Place of Origin:China;Certification:Other;
Payment Terms:L/C,T/T,Western Union,paypal;Port:Changchun;
Supply Ability:50000 Piece/Pieces per Month;Laser Type:DIODE;
Wavelength:450nm;Delivery Detail:7-15 days;
Applicable Material:Glass;
Product Description

 Laser Diode Module

 High-quality laser diode,optical glass lens, driver circuit and housing

Better line quality

High reliability, high stability, long life,low price
Wavelength
405nm,450nm,532nm,635nm,650nm,780nm,808nm,850nm,980nm.
Output power
1mw to 200mw

Beam divergence
1.5mrad
Line thickness
Less then 2mm at 3m
Fan angle
5°、10°、30°、45°、60°、75°、90°
Laser line accuracy
<30”(at 5m)
Operating Voltage
DC3V-5V
Operating Temperature
 10℃~35℃
Storage Temperature
-30℃~80℃
Dimensions
8mmx10mm,12mmx45mm 16mmx70mm,22mmx110mm or customer size.
MTTF
8000 hours

Laser Diode

Laser diode can be used laser pointers, indicators, scanner, DVD, medical systems. Sunday’s laser diode has long time working life for more than 8000 hours even with high temperature 50 c.

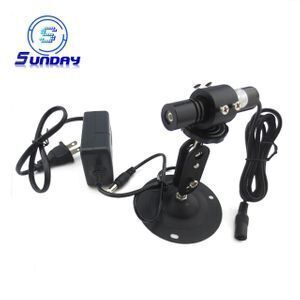

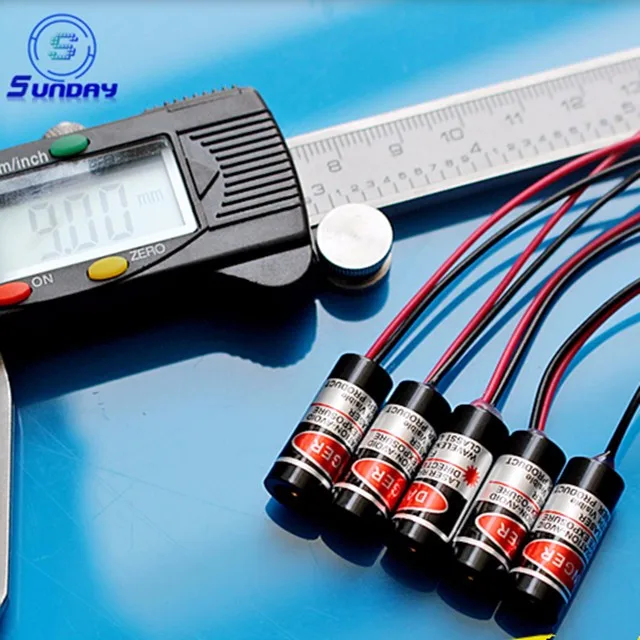

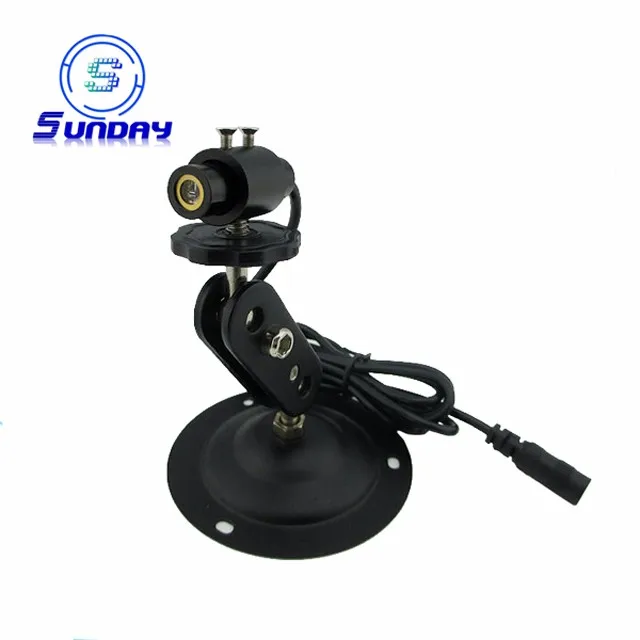

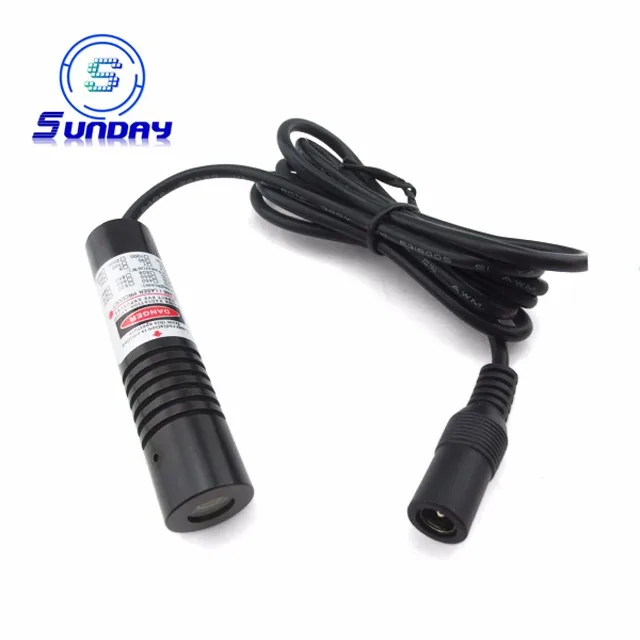

 Dot Laser Module

High-quality laser diode,optical glass lens, driver circuit and housing.

High reliability, high stability, long life,low price.

 Cross Laser Module

 Machine vision

Industrial inspection
Industrial marking devices
3D contour mapping

Line Laser Module

Machine vision
Industrial inspection
Industrial marking devices
3D contour mapping     Positioning & visualization
Biomedical                        High-end alignment
Laser targeting devices and so on..

Manufacture Testing

POLISHING

We have low-speed polishing machine and high-speed polishing machine

TOOLING

More than 3000 kinds of raduis toolings

Coating

6 coating machine

Surface Quality Testing

Zygo Testing Surface Flatness

Focal Testing

exhibition

Sunday Attend exhibition in Shanghai,zhenzhen,laser world munich,Optatec.

Quality guarantee


 Packing safety


Delivery deadline


Contact Information


450nm 1mw laser module, blue laser module, dot laser module
above is detail introduction of 450nm blue dot laser diode module 1mw 16mmx70mm or 22mmx110mm, include price, model, picture and supplier of 450nm blue dot laser diode module 1mw 16mmx70mm or 22mmx110mm.
