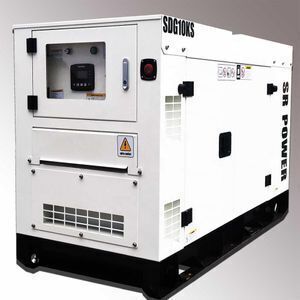

50HZ 3Phase 380v 10kva low price of SR POWER sound proof diesel generator portable

Product details
Rated Voltage:230/400;Place of Origin:Jiangsu China;
Port:shanghai;Product Name:Diesel Generator Set;
Generator Type:Electric Power Silent Diesel Generator;Engine Brand:YANGDONG;
Speed:1500;Packaging Detail:Carton/ Veneer Case;
Color:Customers' Requirement;Warranty:12 Months/1000 Hours;
Phase:3P4W;Engine Model:YD380D;
Alternator:164B;Frequency:50;
Model Number:SDG10KS;Supply Ability:60 Set/Sets per Month;
Rated Current:15A;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:SR POWER;Options:Automatic Transfer Switch;
Power factor:COS =0.8;
Product Description



Control System

Support engine and alterantor monitoring,measurement and protection.

This is long-running and back-up unit to integrate the best way to control.

Support Modbus standard modem,RS232/RS485/USB and internet.

Rainy canopy

Industrial waterproof canopy ensure generator all days running.

Industrial silencer (7 meters the noise is lower than 73 dB)

Engine

Advanced design and precise manufacturing ensure low fuel consumption.

Strong power and perfect low speed performance.

Excellent start performance Reliable running quality less spare parts involved provides easy maintenance and repair job.

Fuel injector and pump were tested fully in various environments which provide excellent.

Forklift holes

With base frame for lift hole and generator canopy lifting hole.

Fuel tank

Standard 8 hours generator running base frame fuel tank (100% load)

Alternator

Excellent design ensures compact structure and perfect appearance.

Excitation enhanced system improves start and short circuit’s protection performance.

Less parts involved and the most markets demand lead to cheap price and fine quality.

Core parts won t be involved in repair ob A R can be replaced easily examining diode doesn’t disassemble rotor.



 YANGDONG SERIES DIESEL GENERATOR 10-63KVA 50HZ 3 PHASE
Generator ModelSDG10KSSDG12KSSDG15KSSDG20KSSDG25KSSDG30KSSDG38KSSDG50KSSDG63KS
ReferenceSDG10KS-3SDG12KS-3SDG15KS-3SDG20KS-3SDG25KS-3SDG30KS-3SDG38KS-3SDG50KS-3SDG63KS-3
Rated Power(kW/kVA)8/1010/1212/1516/2020/2525/3130/3840/5050/63
Max.Power(kW/kVA)9/1111/1413/1718/2222/2828/3433/4244/5555/69
Frequency (Hz)505050505050505050
Voltage (V)220~440220~440220~440220~440220~440220~440220~440220~440220~440
Current (A)15 19 23 30 38 47 55 72 89
ControllerCOMAP IL9COMAP IL9COMAP IL9COMAP IL9COMAP IL9COMAP IL9COMAP IL9COMAP IL9COMAP IL9
Battery (Ah) 1x12V-60Ah1x12V-60Ah1x12V-60Ah1x12V-60Ah1x12V-60Ah1x12V-60Ah1x12V-60Ah1x12V-80Ah1x12V-80Ah
Fuel Tank Capacity (L)708080100100100120140140
Cooling Fluid Volume (L)101010101010252525
Fuel Consumption (L/kw hr.) (50% Loading)0.30.30.30.30.290.290.240.240.24
Running Time under 50% Load (hr.) 292924251815201918
Noise Level behind 7 Meters (dBA)656767686868686868
Engine YD380DYD480DYND485DYSD490DY495DY4102DY4105DY4102ZLDY4EZLD
Power Output (kW/1500rpm)111417212733404863
Start MethodElec. StartElec. StartElec. StartElec. StartElec. StartElec. StartElec. StartElec. StartElec. Start
Displacement (cc)1.3571.8092.1562.543.2983.8574.2144.2144.214
Oil Capacity (L)101010151515131313
Alternator 164B164C164D184E184F184G224C224D224E
Rated Power (kVA)1113.51622.627.531.3405063
Power Factor (Cosφ)0.80.80.80.80.80.80.80.80.8
Voltage RegulationAVR/BlushlessAVR/BlushlessAVR/BlushlessAVR/BlushlessAVR/BlushlessAVR/BlushlessAVR/BlushlessAVR/BlushlessAVR/Blushless
N.G.(kg)(Open Type)440460480520690700890920920
G.W.(kg)(Open Type)52054056060079080099010201020
Product Dimension (mm)(Open Type)1350*650*11701350*650*11701350*650*11701380*650*11701600*650*11701600*650*11701700X700X15001750X700X15501800*880*1600
N.G.(kg)(Silent Type)53075076097010501080130014001400
G.W.(kg)(Silent Type)610830840107011501180140015001500
Product Dimension (mm)(Silent Type)1680*800*10501800*900*10501800*900*10501900*1000*10501900*1000*10501950*1000*11502200X1000X12502400X1000X12502400X1000X1250



Genset Features



• Compact structure high-strength chassis

• Easy operation and maintenance, Low cost

• Good performance damping system

• Compliance with international electrical safety standards of electrical system

• 8 hours base tank

• High-performance maintenance-free batteries with isolation switch

• 50℃ radiator

• Forklift bottom hole design, easy to transport

• Industrial type muffler

• Noise reduction structure,Low overall noise

• Convenient power output interface and ATS Interface

• IP56 (control system)

• The personalized design for user



Packaging & Shipping





Our Services

Send Customized Request

Book a Factory Tour



Company Information





Factory picture





Our partner





Product Warranty



Product Maintenance



Before you buy

 Before you buy our generator sets,You should tell us…

 What is the situation for the power supplying there?

A .  Power supplying well, just about power supply bureau inspection, monthly that lead to power off in the hotel (or restaurant, bank, shop & store, etc.)

B.  Power supplying bad, power failure often

C.  No power supplying, such as in island or very wild field

What is the local voltage there?

A. 115/230V   B. 220V   C. 380V   D. 400V   E. 415V   F. 440V

What is the biggest power load should be for generator power                KW

Facilities for the generator, ventilation and smoke venting situation

Air intake and exhaust door                  A. Have          B. Without

Smoke venting pipe                               A. Have          B. Without

*Because bad air ventilation and smoke venting situation will lead to the generator overheated and adnormal work

What is the facilities the generator will be placed

A. Build a house for the generator outdoor

B. Basement of the big building

C. Installed with weatherproof canopy placed outdoor

D. With idea

Local government requirement for noise level

The generator will creat great noise if it isn’t soundproof design type (you can buy soundproof type or build a soundproof house for the generator), you’d better to realise area noise level requirement from local Environmental Protection Agency.

What is the ATS system?

If there is no person to start and stop the generator everytime, please buy ATS box, it will start and stop the generator automatically when mains supply (city power supplying ) off or on.

Automatic paralleling control system

If you must buy several units of generator for huge power load, we suggest you use our paralleling control system to provide enough power automatically.
