high tenacity vacuum lifter for carton

Product details
Applicable Industries:Manufacturing Plant,furniture factory;After-sales Service Provided:Field maintenance and repair service;
Air guide tube length:10meter;Place of Origin:CN;GUA;
Max Lifting Height:2500mm;Dimension(L*W*H):3500x3000x350mm;
Payment Terms:L/C,T/T;Brand Name:KMAG;
After-sales Service Provided:Engineers available to service machinery overseas;Vacuum motor:SIEMENS;
Working pressure:50Kpa;Certification:ISO9001;
Condition:New;Lift tube compression ratio:1:3;
Max.load weight:60kg;Showroom Location:Spain,Thailand;
Port:GUANGZHOU/SHENZHEN;Vacuum lifting tube diameter:160mm;
Local Service Location:Viet Nam,Indonesia,Spain,Thailand,Malaysia;Supply Ability:10 Set/Sets per Month;
Place of Origin:Guangdong China;Warranty:One Year;
Lifting speed:50m/min;After Warranty Service:Video technical support,Online support,Field maintenance and repair service;
Packaging Detail:Wooden Packing;
Product Description

Product Application

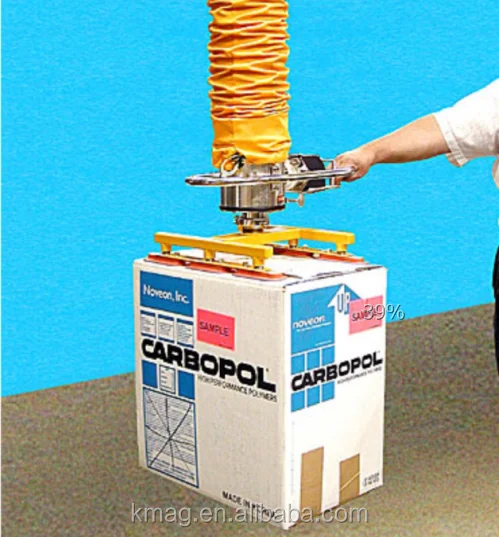

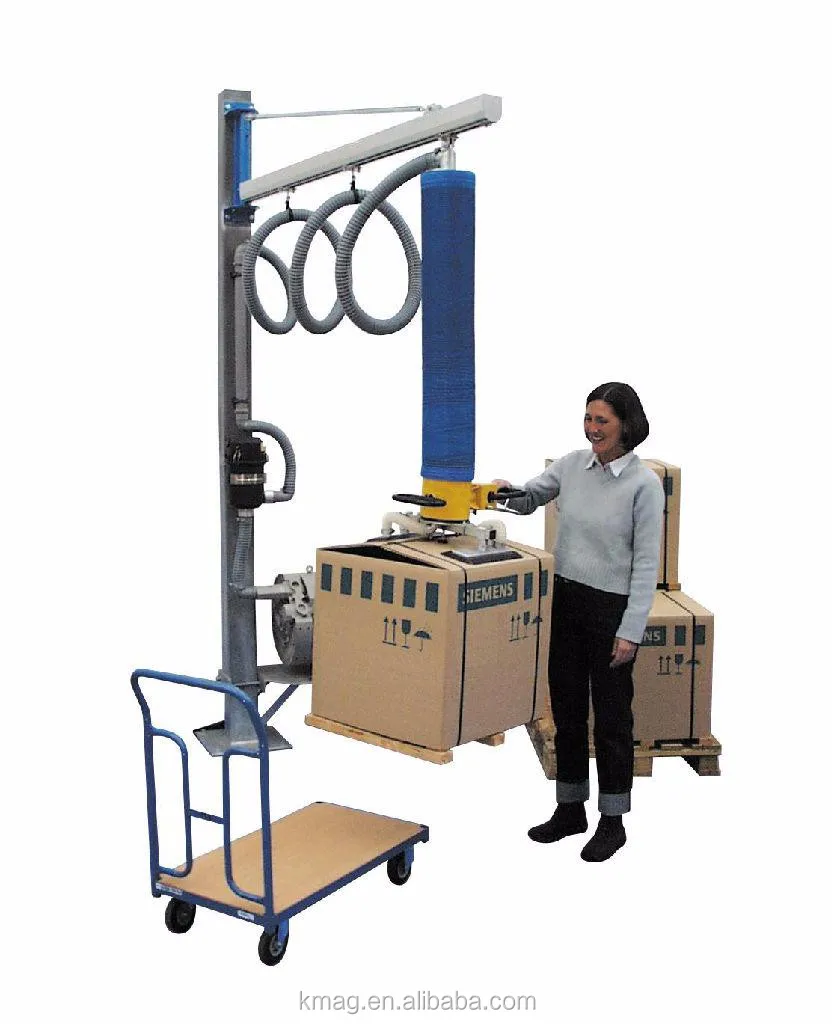

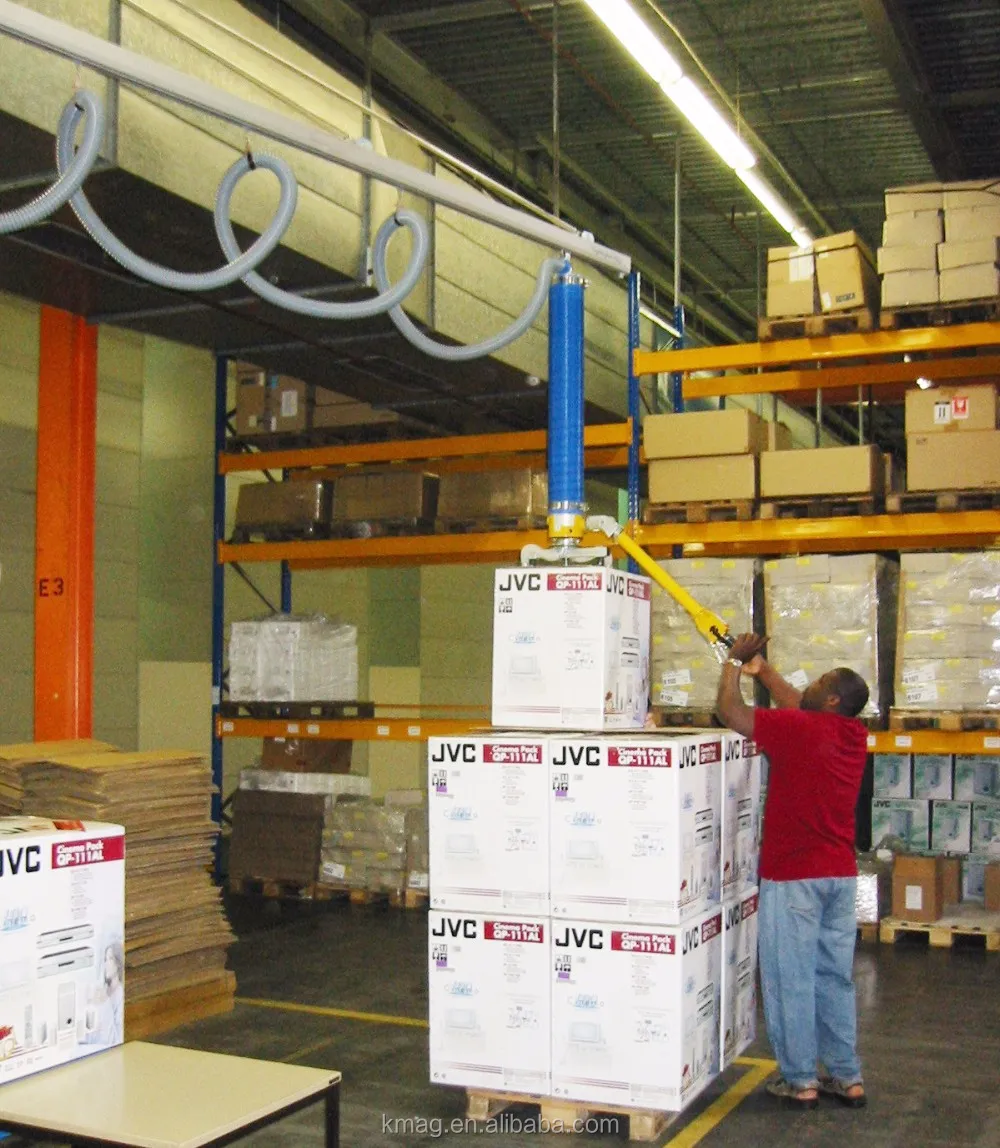

This machine is mainly used to carry heavy objects such as cartons, bags, wood, metal, glass.

Manual handling: work efficiency is low, too heavy things need to be carried together by several people, and it involves the safety of the work environment. Europe and the United States, labor is expensive, greatly increasing costs

Machine handling: A person can simply operate the entire handling process on his own, and can handle up to 200kg. The most important thing is to save labor costs and reduce costs. We deliberately designed the safety device. When the machine suddenly loses power, the suction cup will slowly drop. Create a safe working environment for employees.

KVL140
KVL160
KVL180
KVL200
KVL230
KVL250
Max bearing weight
40KG
60KG
80KG
100KG
120KG
150KG
Lifting tube diameter(D)
140MM
160MM
180MM
230MM
230MM
250MM

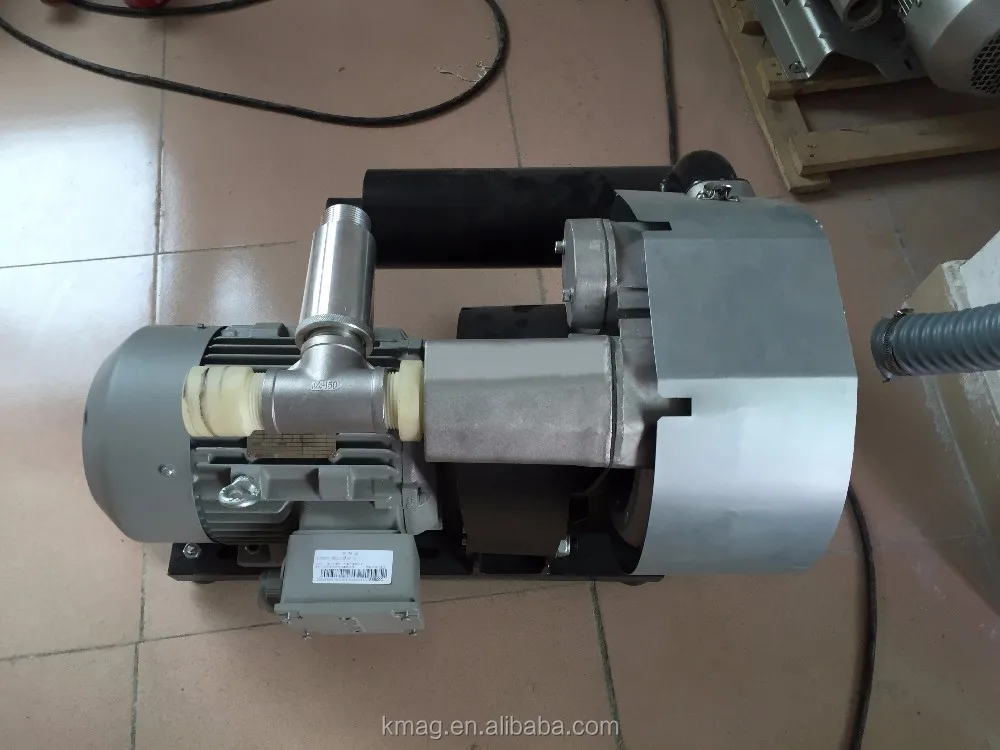

Vacuum motor power
3KW
3KW
5.5KW
5.5KW
5.5/7.5KW
5.5/7.5KW
Column height
Can be customized (within 5meter)
Arm length
Can be customized (within 5meter)

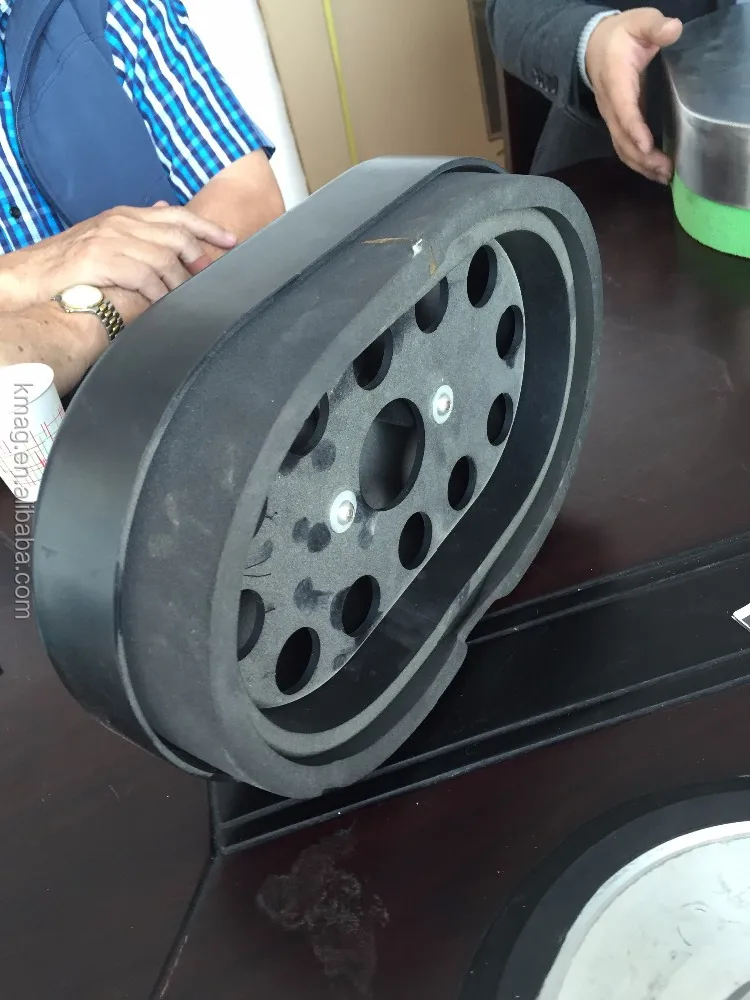

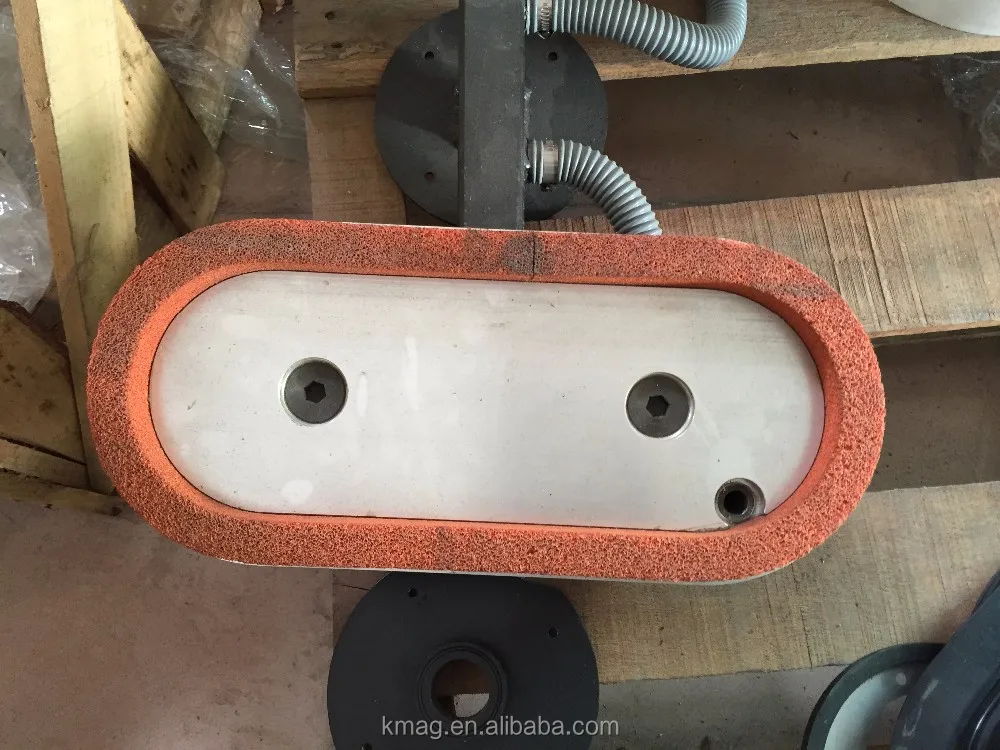

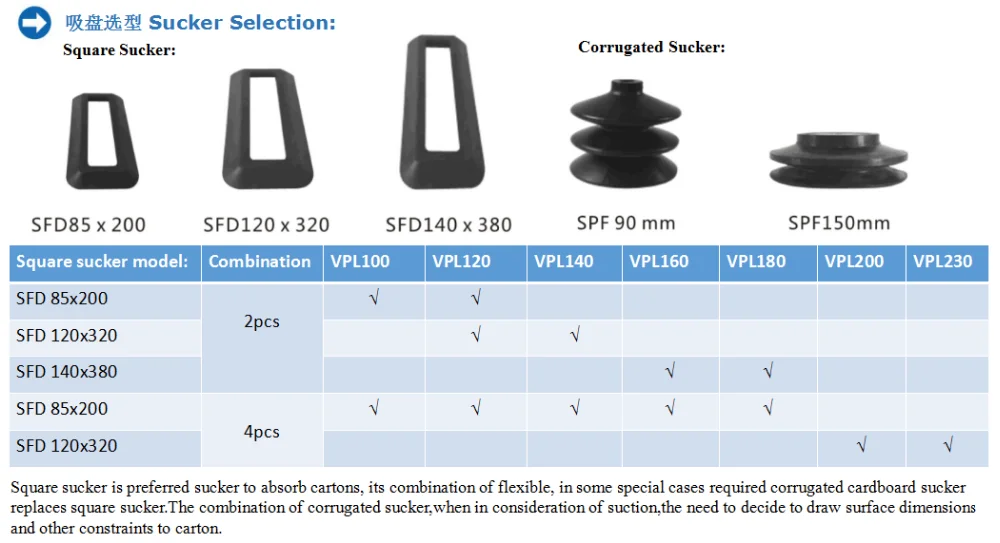

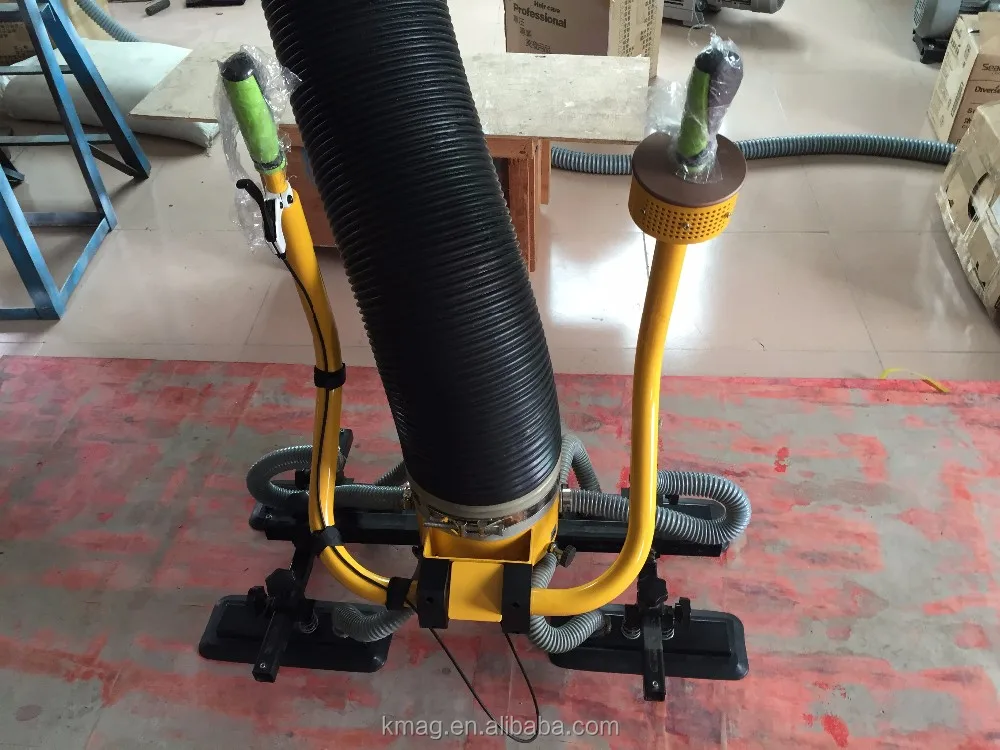

Sucker

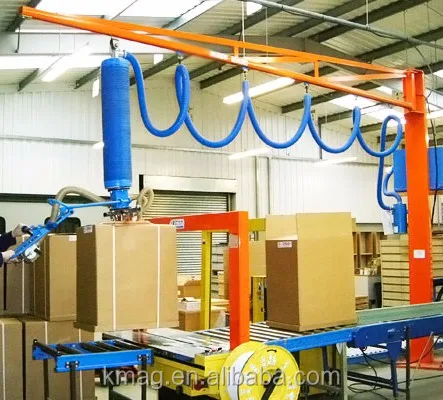

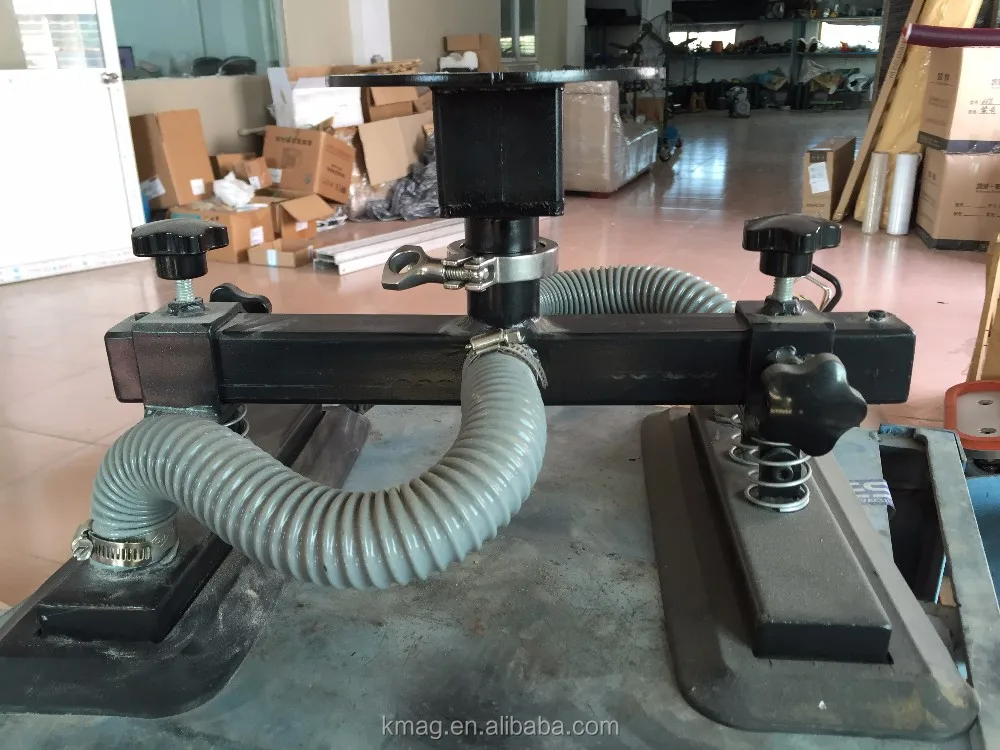

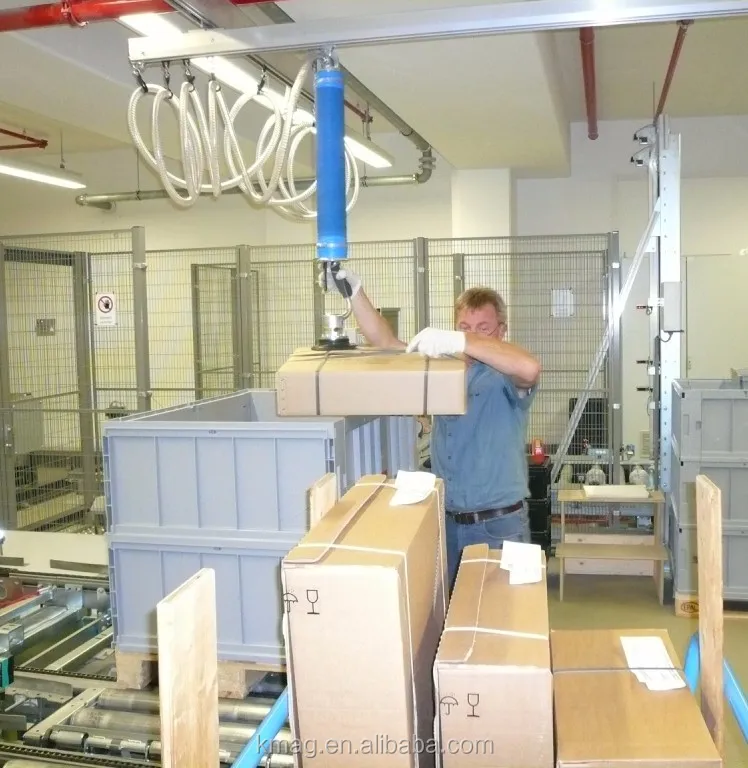

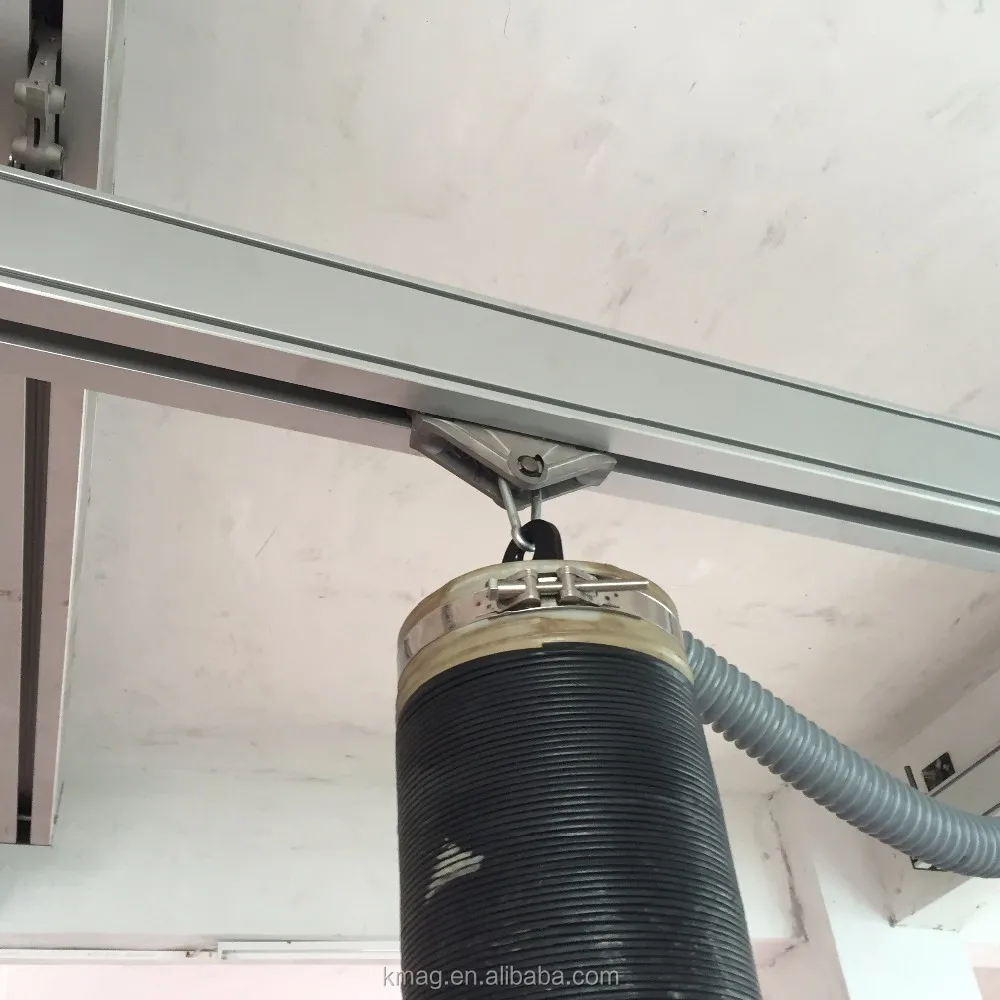

Detailed Images
Packing & Delivery
Packaging
Size
As the machine size
Weight
As the machine weight



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
