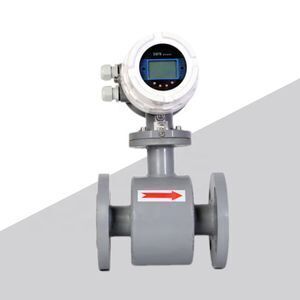

High Quality Electromagnetic Flow Meter Sensor Water Magnetic Flowmeter

Supplier: Tianjin Kailong Instrument Technology Co., Ltd.
Region: Tianjin, China
Price: $265.00 /set
Min. Order: 1 set

Click here to contact

Product details

Span:	1.4-120000m^3/h;	Power supply:	24VDC/3.6 battery;
Temperature:	-25℃-60℃;	Packaging Detail:	carton/standard export packing for High Quality Electromagnetic Flow Meter Sensor Water Magnetic Flowmeter;
Supply Ability:	1000 Set/Sets per Month High Quality Electromagnetic Flow Meter Sensor Water Magnetic Fl;	Diameter:	DN10-3000mm;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;	Product Name:	Magnetic Flow meter;
Connection:	Threaded,Flange;	Medium:	Conductive liquid;
Brand Name:	kailong;	Accuracy:	1.0%;
Place of Origin:	Tianjin China;	Port:	Tianjin;
Model Number:	LDG;	Rated Pressure:	1.6MPa;
Type:	Variable Area Water Flowmeters,Variable Area Oil Flowmeters;	Output signal:	Pulse / 4~20mA / RS485;

High Quality Electromagnetic Flow Meter Sensor Water Magnetic Flowmeter

Product Description

Electromagnetic Flow Meter Description

Electromagnetic Flowmeter is suitable for pipes with diameters of 10 mm to 3000mm. They are based on Faraday’s law of Electromagnetic Induction. The meterfeatures flanged construction and is available with choice of Liner and Electrode materials. It has excellent accuracy and flow rangeability. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.

Electromagnetic Flow Meter Detail

Electromagnetic Flow Meter Main Features

1.High-precision measuremen. It is Not affected by fluid density, viscosity, temperature, pressure and conductivity changes.

2.Simple structure,reliable function,the long working lifetime of no transmission.

3.There are no block and cut-off parts,so the phenomenon of pressure loss and liquid block is not existed.

4. Low Installation requirements. The front straight pipe segment is only required to be 5D, and the back straight pipe segment is 2D.

5.There are a variety of choices of lining and electrode, which can meet the requirements of measuring a variety of conductive flow

6.Modbus-rs485, HART, GPRS, PROFIBUS and other communication signal output (optional)

7.There are two models:integration and separation

8.High definition LCD displayer

Electromagnetic Flow Meter Parameter

Normal diameter	10-30000mm
Measure medium	all of liquids and liquid-solids whose electric conductance ratio is less that 5us/cm
velocity range	0.3-10m/s
Degree of accuracy	±0.5%R, ±1%R ( < DN20)
Environment temperature	Sensor	-25℃- +60℃
	Incorporate type	-10℃- +60℃
Output signal	4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max)
Cable entry size	M181.5 M201.5
Supply voltage	110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
Power dissipation	≤15VA
Digital communication	RS-485, support standard Mudbugs-RTU protocol; GPRS
Signal electrode and the ground electrode material	Stainless steel 316L, Hastelloy C, Hastelloy B, titanium, tantalum, platinum
Form of electric pole	Interpolating, extrapolating electrode need to customize
Number of electrodes	Standard configuration 3-4 electrodes(two measuring electrodes plus a grounding electrode),according to the caliber configuration
Flange standard	Conform to the international GB9119 (according to customer’s demand)
Connecting flange material	Standard carbon steel and stainless steel are needed to be customized

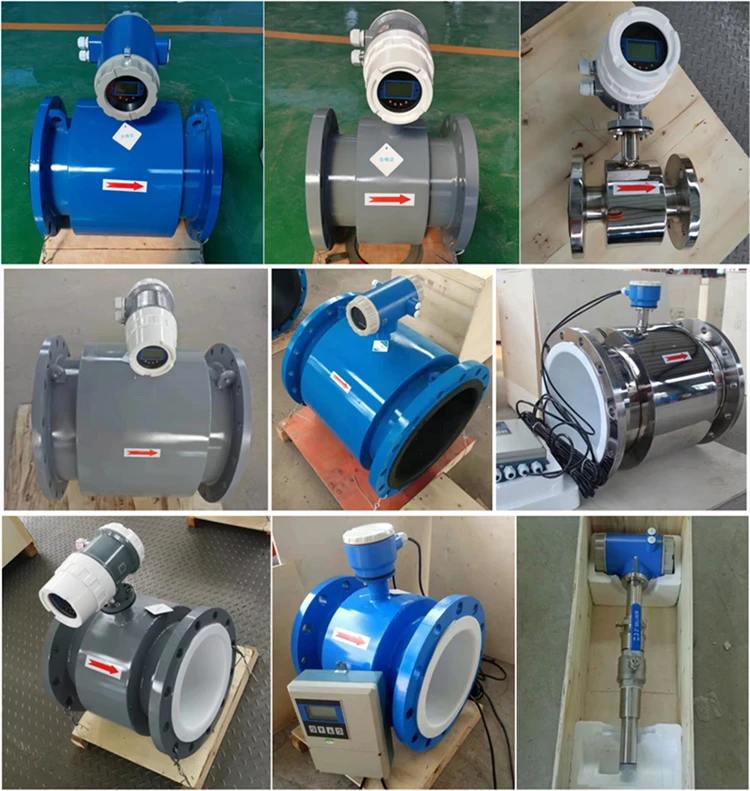

Electromagnetic Flow Meter Photos

Product Uses

Electromagnetic Flow Meter Application

Packaging & Shipping

Packing and shipping

Company Information

Factory Introduction

Tianjin kailong Instrument Technology Co. Ltd. is a company that integrates processing, production, sales and technical services. Now it has the ability to design, develop, detect and manufacture products. It is a comprehensive and diversified enterprise. The main products are Electromagnetic Flowmeter, Vortex Flowmeter, Turbine flow meter and so on. We will adhere to the spirit of development, strict and demanding, striving for the best, and set customer satisfaction as our eternal goal. We will give you best and competive price for you.

Welcome to inquiry!!!

FAQ

FAQ

Q:Is the quality of your products reliable?
A:As for the quality of the product, you can rest assured that our company has been producing this product for nearly ten years.
Q: Can I visit your factory?
A: You’d be warmly welcomed.
Q: How long is your warranty for your product?
A: Normally our warranty is 12 months. Lifetime maintenance.
Q: How do you support the aftersale service?
A: By phone call, by operating video, by sending our engineer to your work field.

Q: Could we buy through trade assurance?
A: we very recommend you to do trade assurance in alibaba.
Q: How is your payment term?
A: It is negotiatable. Normally for 1 sets, 100% TT in advance. For more, 30% deposit, balance after products

are finished when deliver to you.
