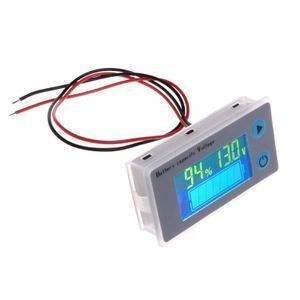

JS-C33 10-100V Universal LCD Car Acid Lead Lithium Battery voltage Capacity Indicator meter tester

Supplier: Shenzhen Feng Chipsource Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Jane Chen
Price: $2.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Input current:	5-6mA;	Supply Ability:	100000 Piece/Pieces per Week;
Place of Origin:	Guangdong China;	Cable length:	30cm;
net weight:	21g;	voltage:	10-70V;
Packaging Detail:	Carton;	Port:	China;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	display:	LCD display;
Model Number:	JS-C33;	Lithium Battery:	work 3-16s;
Model:	JS-C33 battery testers;	Acid Lead Battery:	work 12V 24V 36V 48V;
Working temperature:	-10~55°;	Brand Name:	Original Brand;

Product Description

JS-C33 10-100V Universal LCD Car Acid Lead Lithium Battery voltage Capacity Indicator meter test

This product is a universal instrument, the color LCD screen, with low power consumption,

long time switch, can display the battery voltage, can be used in a variety of lighting conditions.

Features:

1. The patented product, neutral packaging production, with simple dustproof waterproof

surface, with full protection cover.

2.The color liquid crystal material, light clear display, display the soft night.

3.To customize the type of battery, suitable for lead-acid, lithium-ion batteries, lithium iron

phosphate, metal hydride battery.

4.To display the percentage of remaining battery power,voltage, temperature value.

5.The 10~100V wide input voltage,reverse protection.

6.The product can go to sleep after 10 seconds.

7.The low power red mark flashes to remind.

8.The installation is simple, with a buckle, without screws.

9.The open programming mode

Parameter:

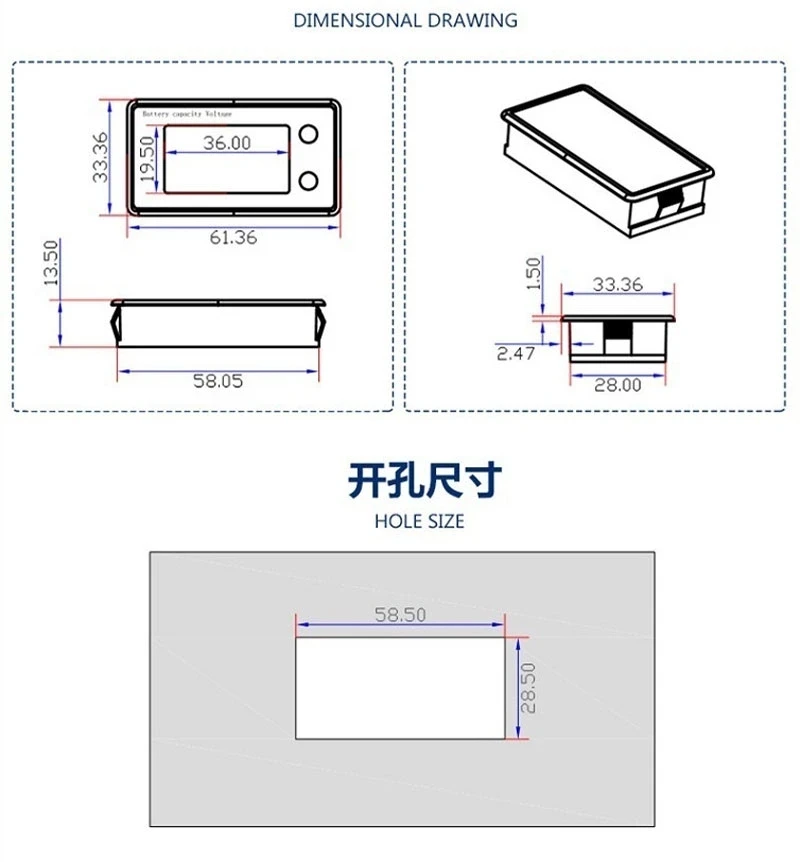

Product size:61.5mm*33.5mm*13.5mm

Installation size:58.5mm*28.5mm

Display size:36mm*19.5mm

Working voltage:10V-100V

Power waste:5-6mA (LED ON)

Voltage accuracy:±0.1(Typical),±0.5(Max)

Sleep power:6-12uA (20V)

Working temperature:-10~55°

Instruction:

1. PH2.0 terminal products supporting the use of wire, connected to the circuit board face should plug back.

2. External NTC temperature sensor, please put the sensor to measure the temperature of the parts, do not

squeeze the sensor( selective assembly).

3. Red line to the positive terminal, black line to the negative terminal.

4. After the instrument is powered on , which shows the percentage of the battery power, the voltage value,

and the symbols of the analog battery.

5. Press the button to turn off the instrument. In close mode, you can wake up the instrument by pressing

any button.

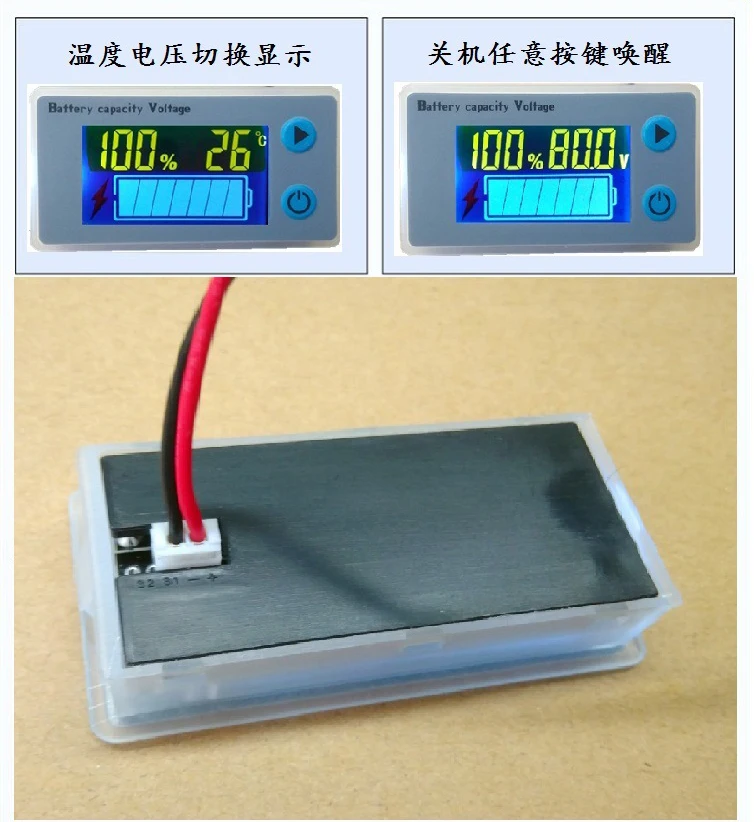

6. Click the button , you can switch the voltage value and temperature value display.

7. The battery symbols on the display interface, from the right to the left, are 7 display boxes representing the

pool power from low to high.

8. The voltage on the display interface is measured in real time, and the voltage value is displayed on

10-100V.

9. The percentage on the display interface is the percentage of the remaining battery power

10. When the battery is connected to the charger or the discharge of the high current load, the display

parameters will fluctuate

11. The red lightning flashes the alarm when the battery is low

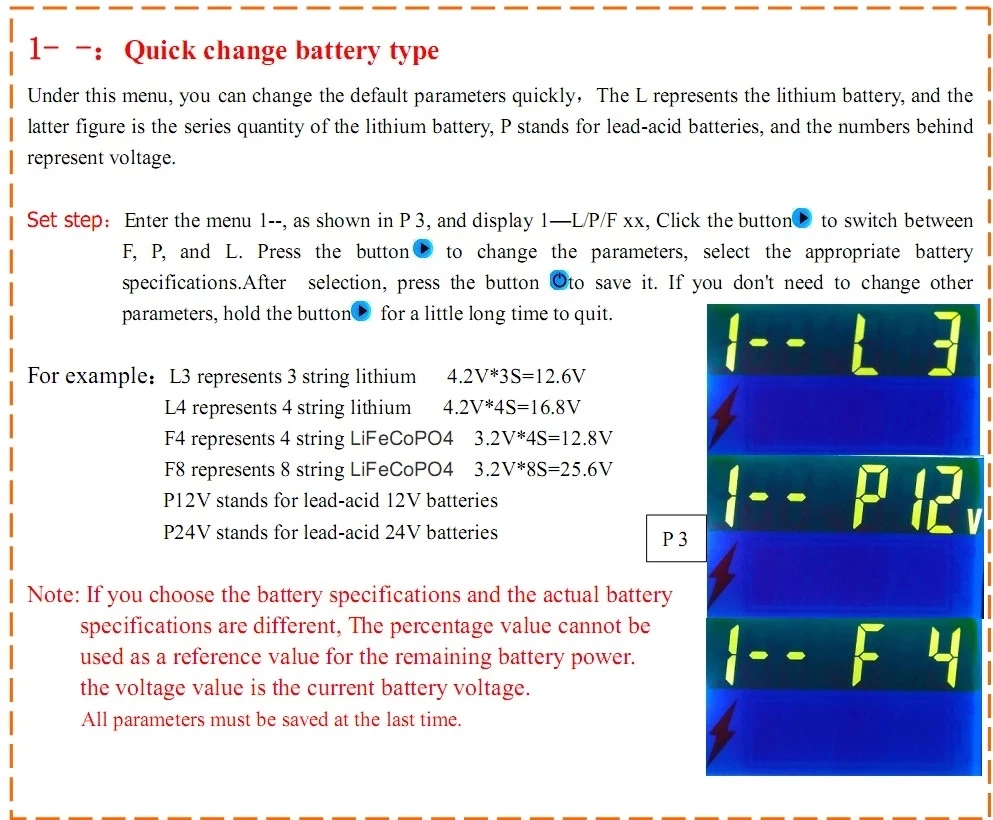

12. If the battery specification is special, you can enter the set mode 3-- and reset the upper and lower limits of

the measured battery voltage.

Package include:

1pcs Battery Capacity Indicator Voltage Meter

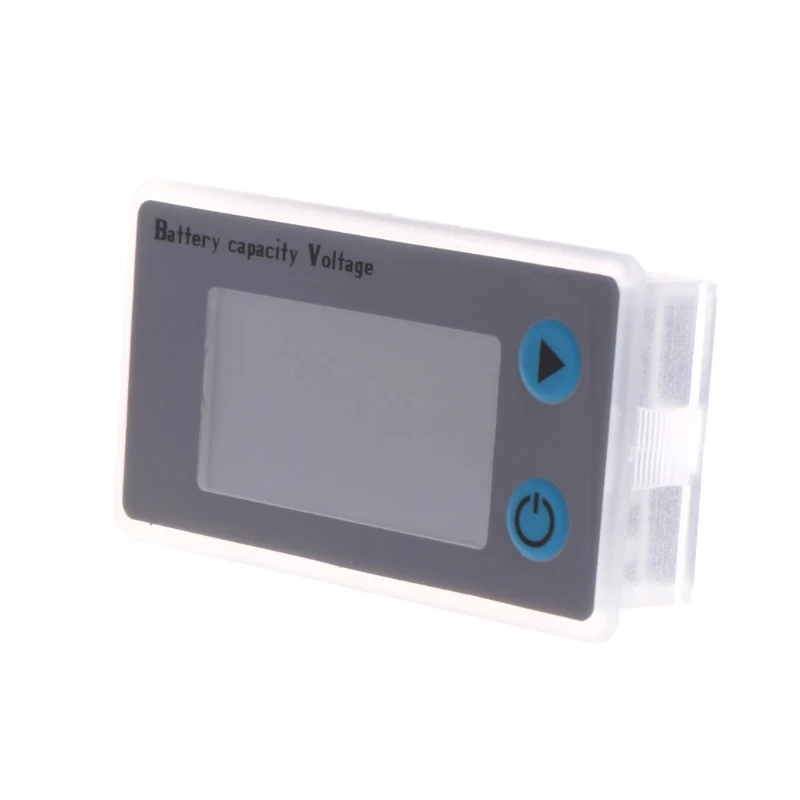

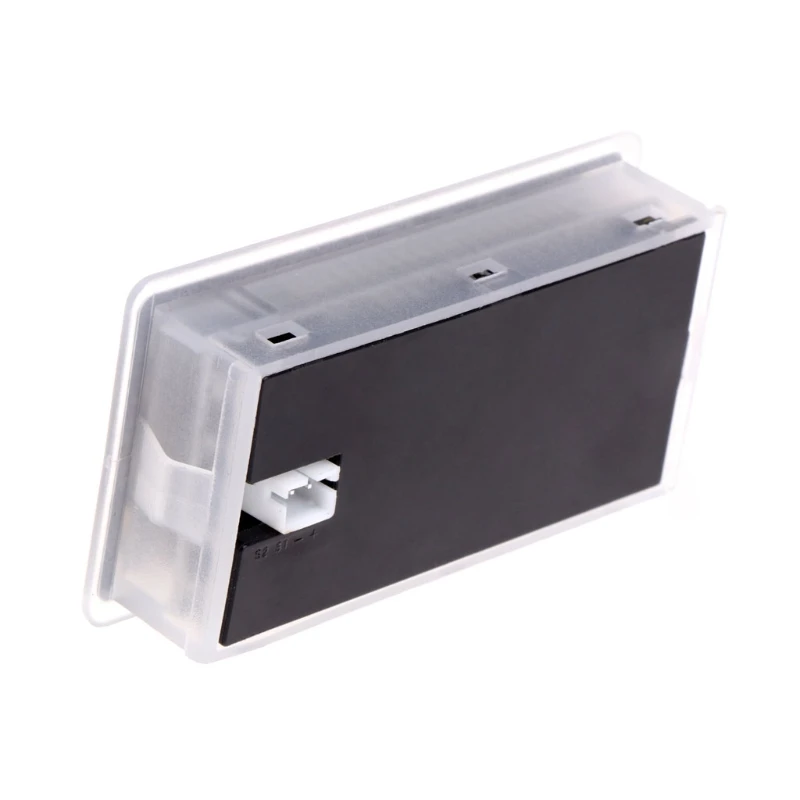

Product Shown
