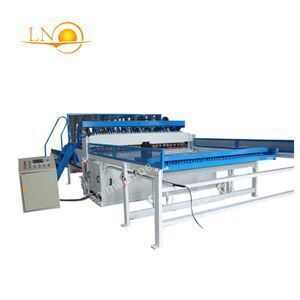

Galvanized Fully Automatic Brick Force Wire Mesh Welding Machine for making Welded Wire Mesh

Supplier: Anping County Laien Wire Mesh Machine Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Ms Linda Yan
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	LE-DHWJ-78;	Payment Terms:	L/C,D/P,T/T,Western Union;
Production Capacity:	45times/min;	Warranty:	1 year;
Packaging Detail:	Best Price Welded Wire Mesh Machine Packed in Wooden Case To Escaped The Damage During The Transportaion.;	Condition:	New;
Wire diameter:	1.6-2.5mm;	Supply Ability:	5 Set/Sets per Month Galvanized Fully Automatic Brick Force Wire Mesh;
Power (kW):	5;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Name:	Galvanized Fully Automatic Brick Force Wire Mesh;	Warranty:	One Year;
Weight:	3.2T;	Weight (KG):	35000;
Port:	TIANJIN;	Brand Name:	Laien;
weft wire distance:	150mm, 300mm;	Key Selling Points:	High Productivity;
Voltage:	380V,50HZ;	Certification:	SGS ISO;
line wire distance:	65mm,115mm,165mm, 230mm etc;	Control system:	PLC;
Machine Type:	Wire Mesh Welding Machine;	Net Width:	700mm;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ;	Place of Origin:	Hebei China;

Laien Galvanized Fully Automatic Brick Force Wire Mesh Welding Machine for making Welded Wire Mesh

Product Description

The machine adopts synchronons control technique, welding time and sub-control welding is composed of PLC program system. The mesh produced can be used for fences, high-speed railway fences, construction mesh, chicken mesh etc.

Items	Description
Finish Mesh Type	With curver wire mesh fence pannel
Welding Wire Diameter	Φ3-6(mm)
Welding Aperture	5050-300300(mm)
Welding Width	2500(mm)
Number of Electrodes	51
Welding Speed	70times/min
Power	Three phase 380V±10% 50HZ
Welding Power	50HZ/380V(transformer capacity ≥120KVA)
Rated Voltage	AC380V 50HZ
Feeding wire type	pre cutted wire
Weight	5T
Overall Dimension	30x7.5×1.6m
Curver Making	Online curver

Advantages

1.This machine adopts Japan Mitsubishi brand electronic synchronous control technique, welding time and sub-control welding are all composed of digital integrated circut, which has high control accuracy, stable performance, firm welding spots and without burned mark.

2.The welding speed is fast and the operation is simple and easy to master.

3.The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out.

4. The mesh drawing system is controlled by motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.

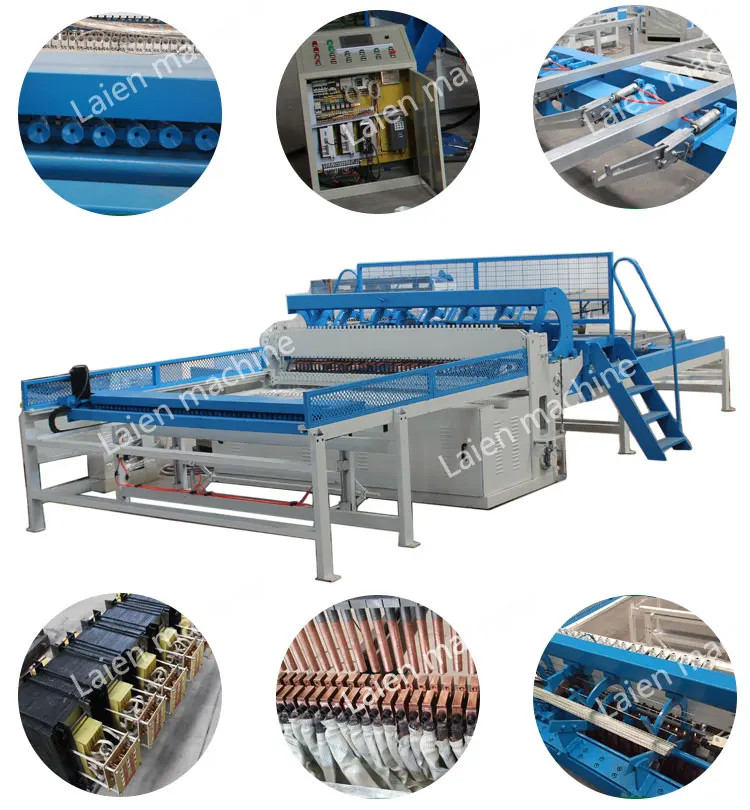

Detailed Images

application

Certifications

Company Information

Hebei Laien Wire Mesh Machine Manufacturing Co.Ltd is located in Anping County - the well-known hometown of wire mesh, Hebei province, China, covers a total area of 67000 square meters. And we have more than 100 sets of processing machinery and over 300 employees, among them, there are more than 70 technicians. This is a enterprise that professional engaged in wire mesh equipment research and development, production, processing, manufacturing. We have passed ISO9001, CE and SGS Certificates through consistent efforts of all staff members. Our company has been rated as an advanced company of scientific&technological progress and civilized company by the government for several years.

Our business philosophy: Diligence makes the machinery, Innovation wins the future. Best Quality satisfies the customers.
