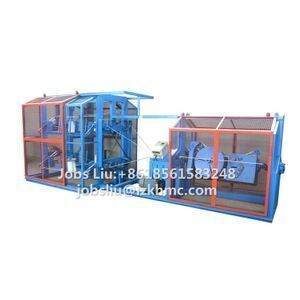

12 spindles yarn twisting machinery twister rope making machine/pet rope braiding machine

Supplier: Laizhou Kaihui Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Cynthia Wu
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	KAIHUI;	Payment Terms:	30%TT as production;
After-sales Service Provided:	Engineers available to service machinery overseas;	Color:	Customers' Requirement;
Suitable material:	Plastic yarn;	Rope structure:	4 Strand/3 Strand;
Usage:	Yarn twisting;	Product:	Twine;
Supply Ability:	18 Set/Sets per Month PP/PE/PET cotton Material twisted rope making machine;	Port:	Qingdao;
Diameter scope:	3-40mm;	Warranty:	12 months since B/L date;
Payment Terms:	L/C,T/T;	Type:	Automatic;
Frequency converter type:	Energy-saving;	Packaging Detail:	Nude or packaged according to customer requirements. Package including wooden case or plastic film Plastic film is free.;
Place of Origin:	Shandong China;

DESCRIPTION OF PRODUCT

Name of Production Line

Rope twisting machine/ Twisted rope machine/ Twister/ Sisal fiber rope twisting machine/ Yarn twist stranding machine/ Ring twister/ Twisting machine for yarn/ Filament yarn twisting machine/Twisted rope making machine

Characteristics

The production line consists of rope making device and strand making device, which can produce rope with Dia.3-30mm. It simplized the working steps and make it one time working from rope making to strand making, thereby increased production efficiency.

Specifications

Model	M88	M77	M66	M55	M44	M33
Revolution of principal Axis	300 r/min	320 r/min	350 r/min	420 r/min	620 r/min	900 r/min
Rope Diameter	32-40mm	20-32 mm	18-26 mm	12 -18 mm	5 -12 mm	3 -7 mm
Direction of twist	s/z	s/z	s/z	s/z	s/z	s/z
Motor power	20KW-4	18KW-4	15KW-4	7.5KW-4	5.5KW-4	3KW-4
Dimension (m)	142.22	12 * 2.2* 2.1	9.2* 2.2 * 1.9	7.8* 2.2* 1.8	5.2* 2.* 1.8	4.21.8 1.7
Output (t/day)	1.4-2	1.4-1.8	1-1.5	1-1.2	0.7-1	0.2-0.6

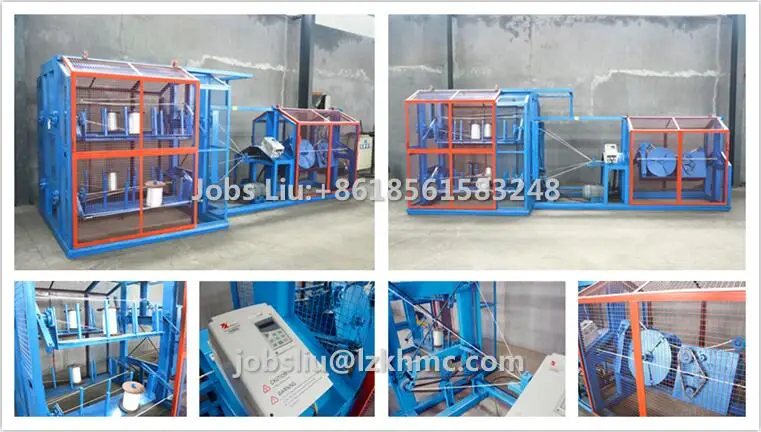

Machine details

Advantages of M Series Rope Making Machine:

*Raw materials saving

*Energy saving

*Low maintenance rate,

*Labor Saving

*Operating safety

*Low noise pollution.

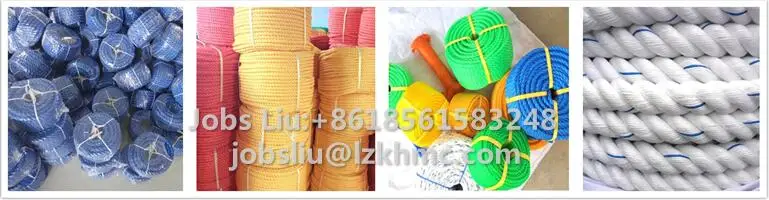

Finished Products

Twisted Rope/Baler Twine/Yarn/Thread

Advantages of the ropes made by our M series rope making machine

*Light weight

*Soft

*Tensile resistance

*Acid and alkali resistant,

*Bright-coloured

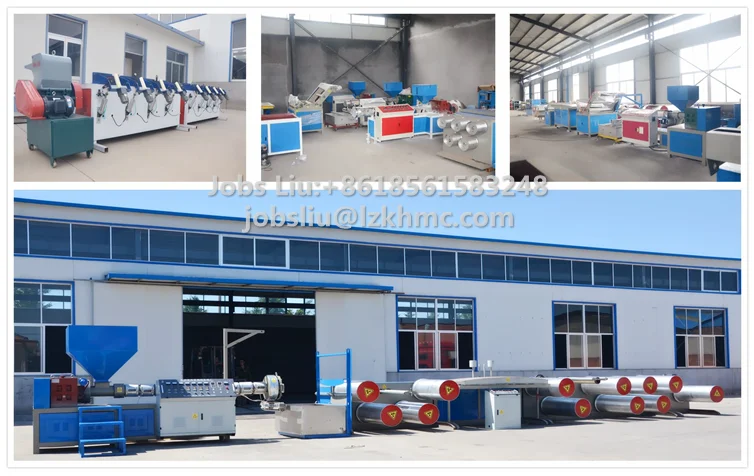

COMPANY OVERWIEW

Introduction of Our Company

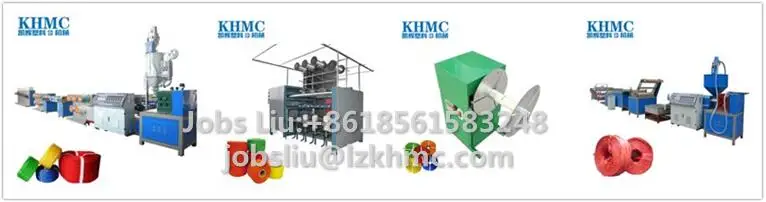

LAIZHOU KAIHUI MACHINERY CO.,LTD, whose predecessor is LAIZHOU QINGJI PLASTIC MACHINERY FACTORY, is a manufacturer expert in develping & manufacturing plastic machineries with over 30 years' experience in producing and exporting. Our main products are plastic extruding machines and auxiliary equipments including twisting, winding and braiding machine, which can be used to produce all kinds of ropes, threads, baler twines, raffia strings, nets, tapes, films, granules and flakes, etc.

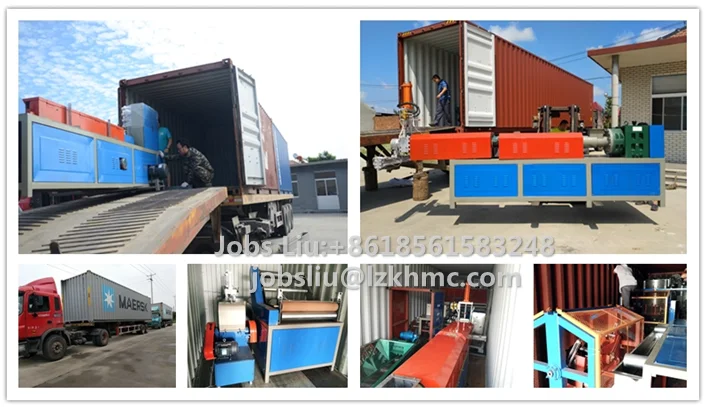

Shipment & Delivery

Our goods have been shipped to many countries in Southeast Asia, West Asia, Middle East, Africa, Eastern Europe and South America.Our vision is to build our own brand and sell our machineries to all over the world!
