3d adjustable welding table with jig machine platens

Product details
Supply Ability:1000 Set/Sets per Month;After-sales Service Provided:Engineers available to service machinery overseas;
Thickness:25mm;Roughness:Ra 1.6;
Port:Shenzhen/Guangzhou;Weight:500~3200kg;
Place of Origin:Guangdong China;Maximum capacity:2000Kg/m2;
Condition:New;Brand Name:Xuanchi;
Payment Terms:T/T;Dimensions:1m-4m (or OEM);
Usage:Welding;Certification:ISO 9001:2008;
Accuracy:0.10/1000mm;Support:by support leg&Spacer frame&rail type;
Packaging Detail:Wood packaging, or according to customer needs packaging;D16 Series diagonal grid:50x50±0.05mm;
Type:Soldering Station;Material:Steel Welding Tables (Q345);
Product name:3D welding table;D28 Series diagonal grid:100x100±0.05mm;



3D welding tables:

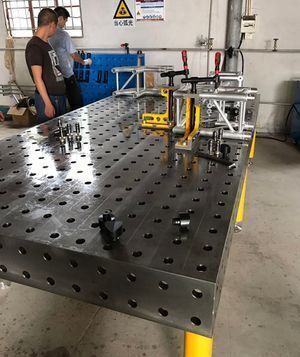

  •  Five working surfaces the locating piece can be installed on. Also can be extended via any of its five working surfaces.
  •  For its material divided into: Steel Welding Tables (Q345) and Casting Welding Tables (HT300).
  • For its hole diameter divided into: D28 series and D16 series.
  • Diagonal Grid: D28 is 100*100mm; D16 is 50*50mm.
  • Supporting: legs, steel frame and hydraulic lift box, according to the requirement.
  • Components can be equipped after your selecting:

        1) Tools for supporting: U-Shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge

2) Spare parts for Locating
3)Tools for clamping and fixing
4)Spare parts for locking working piece
5) Auxiliary Tools

Features:

Almost all workpiece can be fixed precisely at certain points or surfaces with locating piece, adapting piece, fastening piece and supporting piece, in the process of assembling or welding.
• Imprecise dimensions of workpiece can be adjusted during preliminary working process.
• It is easy to use existing parts in the workshop to imitate workpiece assembly via CAD.

Sizes:

3D Welding Table
Parameters of D28 Basic Tables Parameters of D16 Basic Tables
DimensionSteel NumberCastl NumberDimensionSteel NumberCastl Number
1000x1000x200xck28-10001xck28-101011000x500x100xck16-10001xck16-10101
1200x1200x200xck28-10002xck28-101021000x1000x100xck16-10002xck16-10102
1500x1500x200xck28-10004xck28-101041200x800x100xck16-10003xck16-10103
2000x1000x200xck28-10005xck28-101051200x1200x100xck16-10004xck16-10104
2000x1500x200xck28-10006xck28-101061500x1000x100xck16-10005xck16-10105
2400x1200x200xck28-10007xck28-101071500x1500x100xck16-10006xck16-10106
3000x1500x200xck28-10008xck28-101082000x1000x100xck16-10007xck16-10107
4000x2000x200xck28-10009xck28-101092400x1200x100xck16-10008xck16-10108
6000x2000x200xck28-100010----
8000x2400x300xck28-100011----

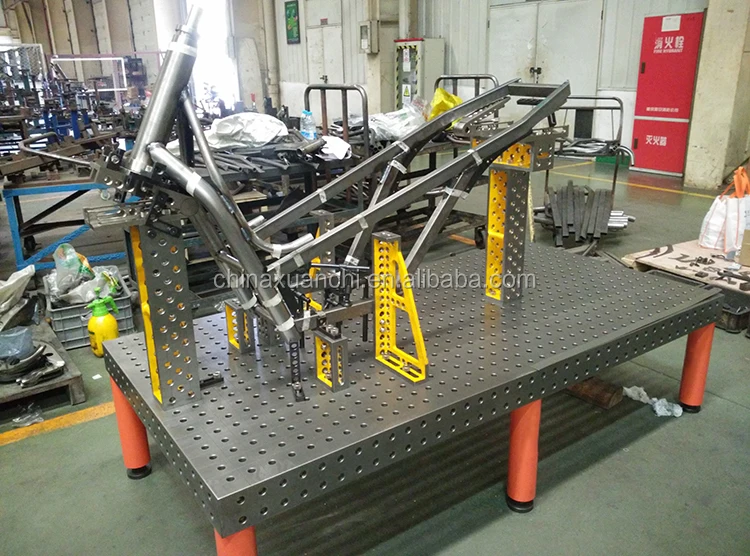

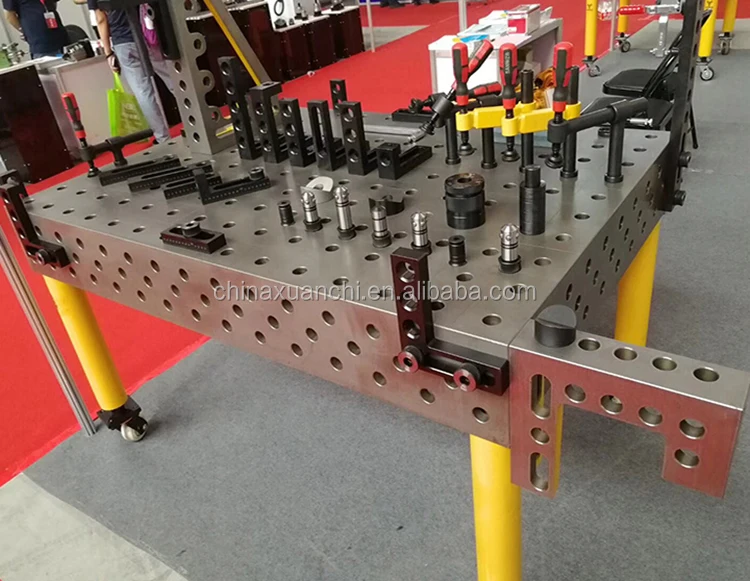

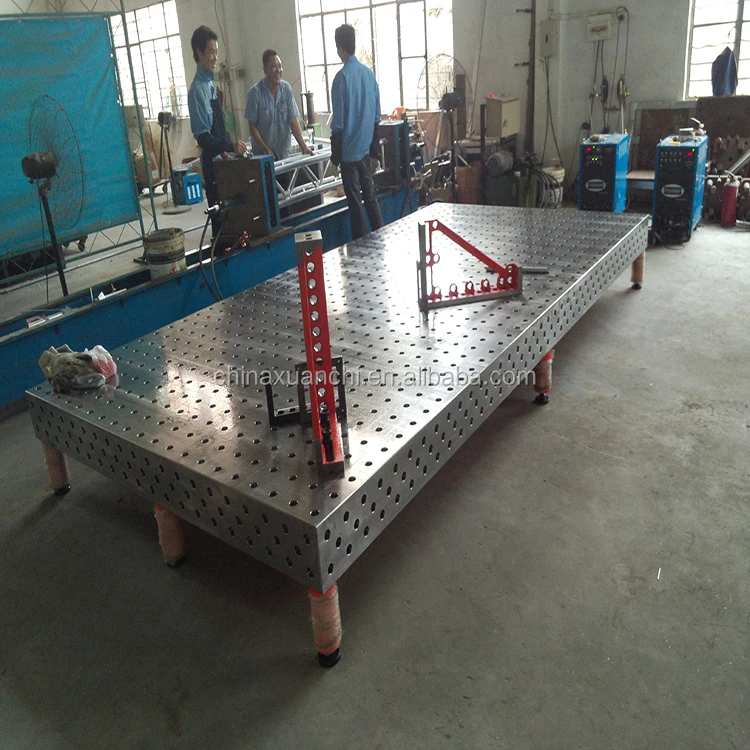

Wedling table pictures:











yj yj yj yj yj yj

Q: Can I make customized for the 3D welding table?

A: Yes, the material and size can be changed as per your requests.



Q: How long is your delivery time?

A: Generally it is within 5 days, definitely according to quantity.



Q: How to chose good 3D flexible cast iron welding platform?

A: Chose one high and bigger brand factory, brand is important for the quality and won’t do the low price competition.

     Carefully looking the material, regular casting factory has strict material report and casting quality assurance



Q: How can I get the quotation of the project?

A: If you have drawing, we can offer you our quotation according to your drawing.

     If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
