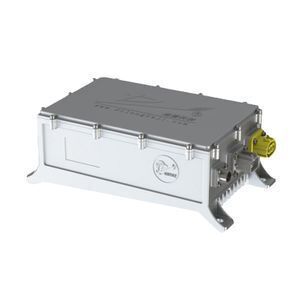

6.6kW fully sealed OBC
- 235.00 >=10 pieces
| Max Iutput Current: | 32A; | Dimensions: | 300*186*122mm; |
| Port: | Xingang,China; | Packaging Detail: | carton with inner protective material; |
| MAX Efficiency: | ≥94%; | Place of Origin: | Hebei China (Mainland); |
| Product name: | OBC; | Rated Input Voltage: | 220Vac; |
| IP Grade: | IP67; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Supply Ability: | 100000 Set/Sets per Month automotive charger; | Brand Name: | DILONG; |
| Input voltage range: | 85~265Vac; | Type: | water-cooled; |
| Model Number: | DA6K6M20A-602C; | Frequency range: | 47Hz~63Hz; |
| Protocol: | CAN Communication; |
Introduction:
This power supply is designed to charge for new energy car high-voltage battery. Also can be applied to filed related to constant voltage and current. Adopting advanced fully digital resonant frequency modulation technology, it has higher efficiency, better energy-saving ability, smaller volume, better reliable working method and longer MTBF than similar products.
Parameter | |
Rated power | 6600W |
Input voltage range | 85~265VAC |
Output voltage | 100~200VDC 210~420VDC 350~750VDC |
Transfer efficiency | ≥95%(MAX) |
Control method | CAN/ENABLE |
Cooling | Water |
Dimension(L*W*H) | 284*120*197mm |
We are an automotive supplier and partner to automakers worldwide. As a technology company,
we design innovative solutions for smart mobility, with a particular focus on intuitive driving and reducing CO2 emissions.
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production
Q: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
