HSS Gear Hobbing Cutter

Product details
Accuracy:Class A,AA to DIN3968 standard;Supply Ability:1200 Piece/Pieces per Month;
Payment Terms:L/C,T/T,Western Union;Usage:Gear Hob;
Coating:TiN,TiAlN,Oerlikon Balzers Coating;Profile:profile to GB or DIN3972-2 standard;
Brand Name:xw;Mateiral:HSS M2,M35,ASP2030,ASP2052,S390;
Model Number:gear hobbing cutter;Packaging Detail:gear hobbing cutter is packed in cartons;
Port:Chongqing,Shanghai;Material:HSS;
Hob Type:gear hobbing cutter for finishing cut;Place of Origin:Chongqing China;
Module:m0.2-m12;Pressure Angle:PA20 degree;

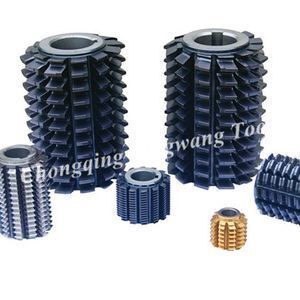

HSS Gear Hobbing Cutter

Standard Gear Hobbing Cutter in Module and DP as following:

(1, small module gear hob ----m0.2~m1  OD:20-32   class A,classAA

(2, standard gear hob----- m1~m12 OD:55-150 class A,class AA

(3, pre-shaving gear hob------m1~m12 OD:55-150 class A  classAA

(4, pre-grinding gear hob ----m1~m12 OD:55-150 class A, classAA

(5, topping gear hob  --------m0.2~m12 OD15-150 class A, classAA

(6, chamfering gear hob ----------m0.8~m12 OD:15-150 class A,class AA

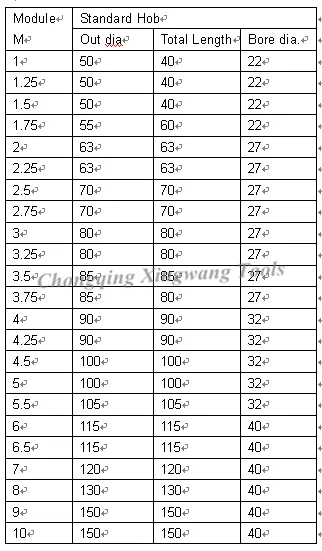

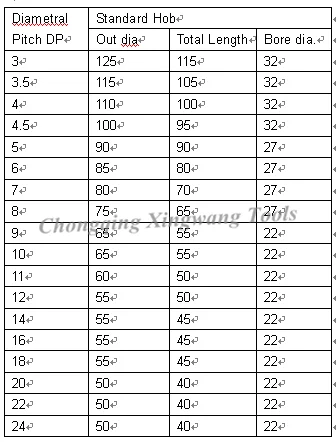

Conventional Specificfations of Module and DP Gear Hobbing Cutter with Standard Profile:







We are a quality manufacture & exporter of gear cutting tools as following:

(1,Module and DP Gear Hob Cutter for Finishing Cut, Pre-grinding, Pre-shaving

(2,Spline Hob: Involute Spline Hob and Parallel Side Spline Hob

(3,Worm Wheel Hob:Shank Type Worm Hob or Bore Type Worm Gear Hob

(4,Roller Chain Sprocket Hob

(5, Timing Pulley Hob

(6, Carbide Hob

(7, Gear Shaper Cutter: Bowl Type Shaper Cutter,Disk Type Shaper Cutter and Shank Type Shaper Cutter

(8,Gear Shaving Cutters: Conventioanl Shaving Cutter and Plunge Shaving Cutter

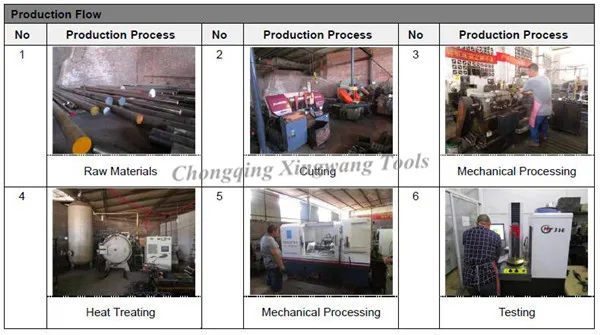

Process of Producing HSS Stanard Gear Hobbing Cutters as belows:





Please contact us for more details on gear cutting tools gear hobbing cutters.
