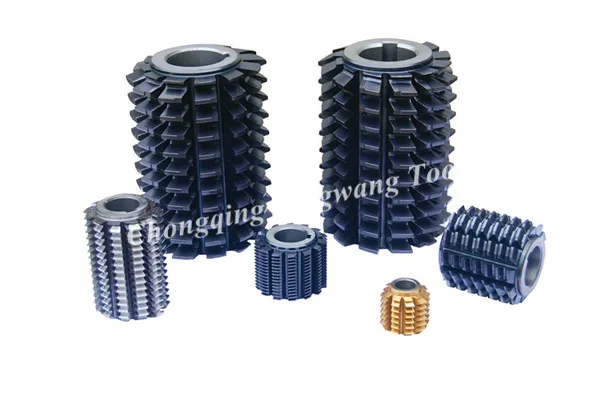

HSS Fine Pitch Gear Hob
-
Supplier: Chongqing Xingwang Tools Manufacture Co., Ltd. -
Region: Chongqing, China -
Contact: Ms rose zou -
Price: $50.00 /piece -
Min. Order: 1 piece
Product details
| Material: | HSS; | Coating: | TiN/TiAlN; |
| Place of Origin: | Chongqing China; | Outside Dia.: | 20mm-32mm; |
| Port: | Shanghai; | Payment Terms: | L/C,T/T,Western Union; |
| Module: | m0.2-m1; | Model Number: | small module hobs; |
| Brand Name: | XW; | Supply Ability: | 1200 Piece/Pieces per Month; |
| Usage: | Gear Hob; | Material: | M2/M35/M42/ASP2030/S390; |
| Packaging Detail: | Oilpaper+Plastic Packages+Standard export cartons or as customer's requirement; | Accuracy: | Class AA/A/B; |
HSS Small Module Gear Hob:
1.Module: m0.2-m1
2.Outside Dia.: 20mm-32mm
3.Material: M2/M35/M42/ASP2030/S390
4.No. of Thread: Single
5.Direction: Left Hand/Right Hand
6.Accuracy: Class AA/A/B
7.Coating: TiN/TiAlN
8.Specifications(mm) of HSS Fine Pitch Gear Hobs
Module | Outside Dia. | Overall Length | Hole Dia. |
0.1 | 25 | 10 | 8 |
0.12 | |||
0.15 | |||
0.2 | |||
0.25 | |||
0.3 | 15 | ||
0.35 | |||
0.4 | |||
0.5 | |||
0.6 | |||
0.7 | 25 | ||
0.8 | |||
0.3 | 32 | 15 | 13 |
0.35 | |||
0.4 | |||
0.5 | |||
0.6 | 20 | ||
0.7 | |||
0.8 | |||
0.9 | |||
1 |
Gear Hob Cutter in HSS M-35,M-42,ASP2030 and ASP2052,in class of accuracy B/A/AA as per DIN3968 can be supplied by XW as per requirement of the customers in various profiles mentioned below.
Feature:of Gear Hobs
- Involute Spline Gear Hobs
- Standard Gear Hobs upto 25 Module/1 DP
- Parallel Spline Gear Hobs
- Worm Wheel Gear Hobs
- Roller Chain Sprocket Hobs
- Timing pulley Hob cutters
- Serration Hob cutters
- Special Profile Corrugation Hob Cutters & any other special profile as per Customers requirement
Note:for Hob Cutters
- The above Gear Hob Cutters can be supplied with latest PVD Coatings
- The above Gear Hob Cutters can be supplied as per BS, JIS, DIN, ASA standards
