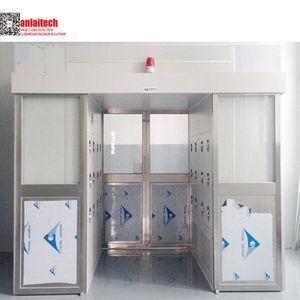

Epoxy powder coated steel or SUS 304 Air Shower

Supplier: Guangzhou Anlai General Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Vanessa Wang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	130010002100;	Payment Terms:	T/T;
Power(W):	600w;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory;
Warranty:	12 Months;	Voltage:	380V;
Place of Origin:	Guangdong China;	Certification:	CE ISO;
Application:	Cleanroom Entrance;	Port:	guangzhou;
Supply Ability:	5000 Set/Sets per Month;	Condition:	New;
Brand Name:	Anlaitech;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	Standard export packing (Stretch film+foam+Wooden case);	Weight:	300KG;
Clean room:	General Clean Room;	After-sales Service Provided:	Free spare parts;
Product name:	Cleanroom Air Shower;

Air shower clean room, stainless steel air shower

Completely self-contained, pre-wired, fully equipped Air Shower/Tunnel systems help solve decontamination problems
Modular design lets you order a system to suit your cleanroom
HEPA filter/blower modules (rated 99.99% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles
Solid-state microprocessor panel provides programmable control over access door operation.
Electromagnetic interlocking doors minimize contamination and automatically release in the event of power failure or when the emergency stop button is pressed
Energy-efficient LED lighting mounted on the ceiling
Available in white powder-coated or stainless steel to meet various cleanroom requirements
Variety of sizes and door configurations
Economical to operate and easy to maintain
An ionizing bar is available as an optional accessory

CHOOSE THE CAT NUMER FOR QUOTATION!

Optional parts for air shower & Tunnel:

1. Inter Phone

2. Auto-opening Door

3. Ionizing Bar

Product Description

Clean Room Air Shower Quick Details:

1. Name: AL-AS1300/P1 Stainless Steel Air Shower

2. Brand Name: anlaitech

3. Material: epoxy powder coated outside, stainless Steel SUS304 inside

4. Feature: LCD display control

5. Outside dimension: 1300×1000 ×2100 (mm)

Description:

Applicable: people

Materials: epoxy powder coated outside, stainless Steel SUS304 inside

Number of Nozzle: 24(Two Sides) Stainless Steel 304

Mouth Diameter of Nozzle: Φ30mm

Speed of Air Flow at the Nozzle: >25m/s

Dimension of High Efficiency Air Filter (mm): 600×600×120

Dimension of Air Shower Area (mm): 800×930×1960

Outside Dimension (mm): 1300×1000×2100

Lock: Electronic Interlock

Pre-Filter: 600*350*10(mm), 1PC, synthetic fiber with aluminum

HEPA Filter: 1PC, 600*600*120(mm)

FAN: 1PC, Power: 0.55KW, Air Volume:1500/PC, Air Pressure:1200Pa

LAMP: 2PCs, Power:20W

Shower Time: 0-99s adjustable

HEPA Filter Efficiency: H13,99.995%@0.38um.

Maximum Power Consumption: 1.1KW

Air Showers

Material reference:

Air Shower &Tunnel Details:

Our Services

Factory testing (all the sets you ordered):

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.

Factory test include:

--appearance testing

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--noise testing

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Testing:
