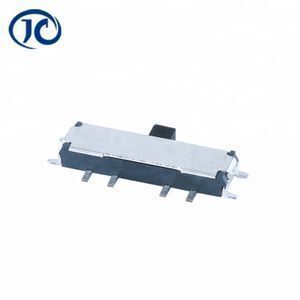

JC-SK01L Series 12V supplier hot selling small silver 3 position slide switch

Click here to contact

Product details

Package Type:	1000pcs/bag in bulk 3000pcs/reel in reel;	Max. Voltage:	12V DC;
Mechanical Life:	10000 Cycles;	Selling Units:	Single item;
Single package size:	20X15X4 cm;	Place of Origin:	Zhejiang China;
Single gross weight:	1 KG;	Brand Name:	jinchen;
Model Number:	JC-SK01L;	Max. Current:	50mA;

Product Description

JINCHEN ELECTRONICS FACTORY OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: SMALL ORDER WELCOME...

4: SUPPORT 7 DAYS REFUND MONEY

5: ONLINE PAYMENT.

6: AFTER SALES SERVICES 24/7

Action: Contact us now!

Specification
Items	Standard
Rating	50mA 12V DC
Insulation resistance	100 MΩ min. 100V DC
Compressive strength	110V AC for 50Hz/1 min
Contact resistance	50MΩ max.
Operating temperature range	-30°c to + 85℃
Lifetime	10,000 Cycles min.
Operating force	200 ± 50gf
Travel	1.5 ± 0.1mm
Height	Various height from 1mm to 7mm
