Steel Gas Filling Pillow Rice Food Vacuum Sealer Packaging Machine

Supplier: Wenzhou Huaze Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr HUA ZE
Price: $25800.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Online support;	Certification:	CE,ISO9001-2015;
Down film width(mm):	350;	Air supply:	0.8 M pa;
Showroom Location:	None;	Power supply:	380 V 50 Hz;
Packaging Detail:	wooden pallet;	Condition:	New;
Cooling water:	0.15 M pa;	Packaging Type:	Bags,Pouch;
Applicable Industries:	Food & Beverage Factory;	Brand Name:	HUAZE;
Key Selling Points:	Automatic;	Payment Terms:	L/C,T/T;
Packaging Material:	Plastic;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Ningbo;	After Warranty Service:	Field maintenance and repair service;
Upper film width(mm):	320;	Capacity:	200-400 cycles/h;
Warranty:	1 year;	Application:	Food,Machinery & Hardware,Medical;
Product name:	Vacuum Packaging Machine;	Voltage:	380 V 50 Hz;
Type:	Vacuum Packing Machine;	Automatic Grade:	Automatic;
Supply Ability:	10 Set/Sets per Month;	Power consumption:	10kw;
Dimension(LWH):	44507002050 mm;	Weight:	2000 Kg;
Driven Type:	Electric;	Place of Origin:	Zhejiang China;
Local Service Location:	None;

Discount promotion, click banner for details

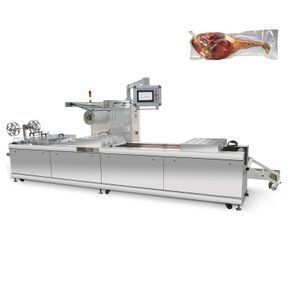

Steel Gas Filling Pillow Rice Food Vacuum Sealer Packaging Machine

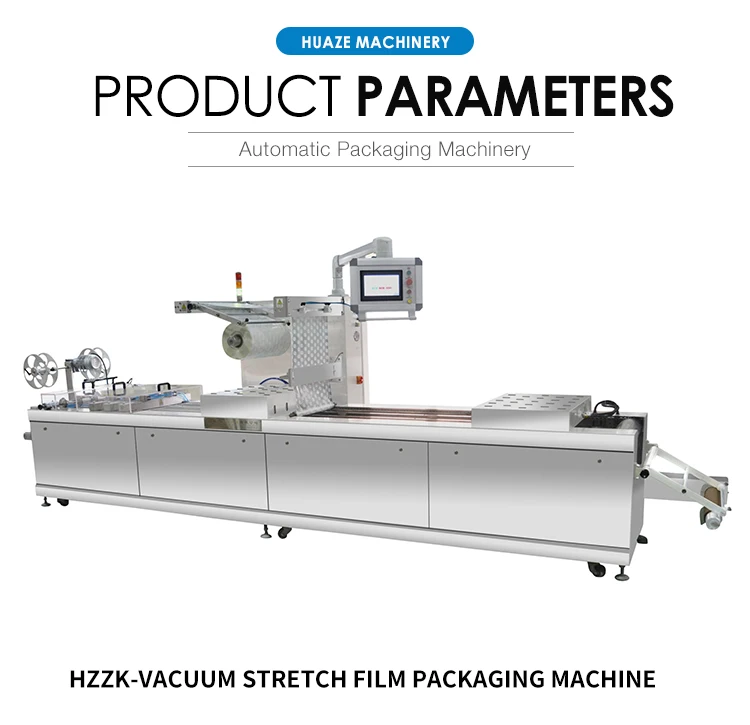

Product Parameters

Product description:

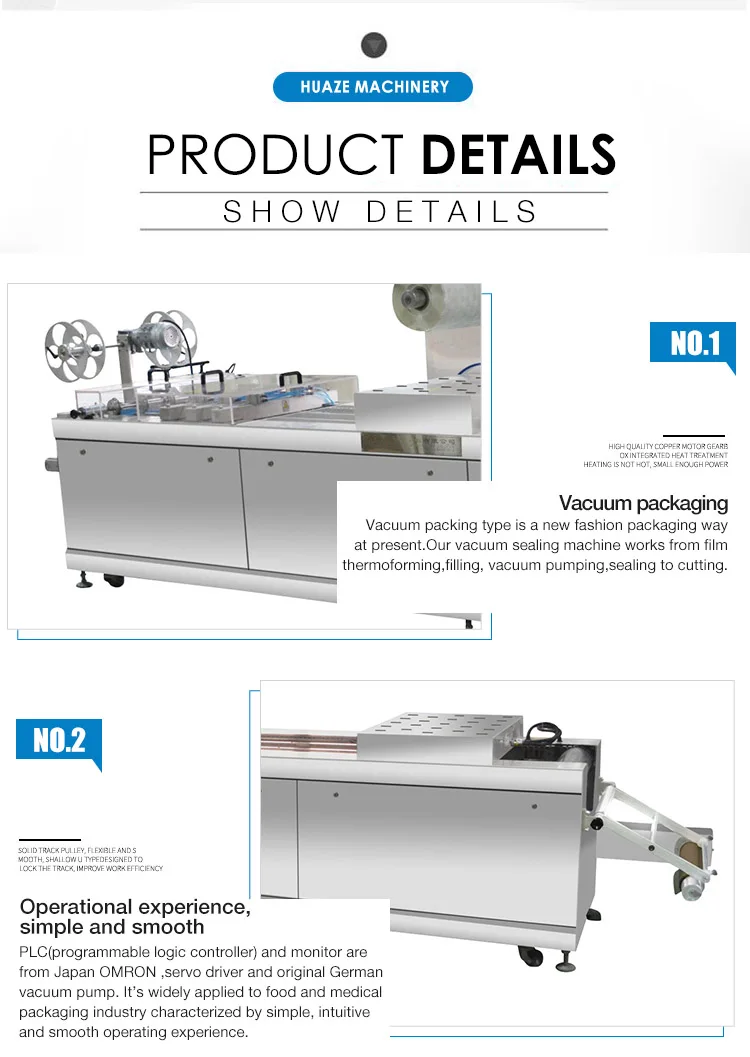

Vacuum packing type is a new fashion packaging way at present. Our vacuum sealing machine works from film thermoforming , filling, vacuum pumping,sealing to cutting.
PLC(programmable logic controller) and monitor are from Japan OMRON ,servo driver and original German vacuum pump. It’s widely applied to food and medical packaging industry characterized by simple, intuitive and smooth operating experience.

Technical data:
Mode	HZ-320
Upper film width(mm)	320mm
Down film width(mm)	350mm
Power supply	380 V 50 Hz
Power consumption	13Kw
Cooling water	0.15 M pa
Air supply	0.8 M pa
Capacity	200-400 cycles/h
Weight	2000 Kg
Machine dimension(LWH)	44507002050 mm

Features:
1.PLC and monitor are from Japan OMRON,simple,intuitive and smooth operating Experience.
2.Thermoforming molds are made of aluminum alloy with durable and changeable easily with water cooling system available.
3.Servo driver and original German vacuum pump,Schneider electrical parts let machine performance stable and long service life.
4.Machine frame,case are made of 304# steel.
5.Special clamp chain fix the down film,let various thickness film forming well.
6.Waste film edge can be recycled,preventing pollution.

Application Field
