hot sale high quality factory price water jet stone cutting machine

Supplier: Foshan Yuanli Precision Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Liu Tommy
Price: $26000.00 /set
Min. Order: 1 set

Click here to contact

Product details

cutting accuracy:	±0.1mm;	Supply Ability:	100 Set/Sets per Month;
Fast positioning accuracy:	±0.025mm;	Brand Name:	Yuanli;
Packaging Detail:	1.Whole film packaging machine. 2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process. 3.Anti-collision package edge.;	Power(W):	30 37KW;
Type:	Stone Cutting Machine;	Condition:	New;
Power:	50/60HZ;	Weight:	3.9T;
Port:	Guangzhou/Shenzhen;	Applicable Industries:	Manufacturing Plant;
Voltage:	220V/380V/415V;	Structure:	Cantilever;
Voltage:	220V 380V;	repeatability:	±0.01mm;
After-sales Service Provided:	Online support,Video technical support;	Place of Origin:	Guangdong China;
Warranty:	1 year;	Dimension(LWH):	4200*3600MM;
Payment Terms:	T/T,Western Union,Alipay/wechat;	CNC control system:	AC servo system;
Key Selling Points:	High-accuracy;	Warranty:	12 Months;
Production Capacity:	1000sets/years;	Traverse Angle:	6000 mm/min;
Certification:	ISO;

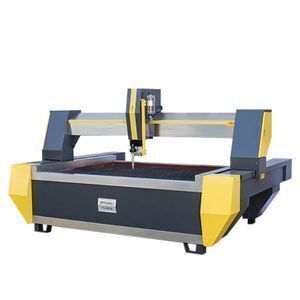

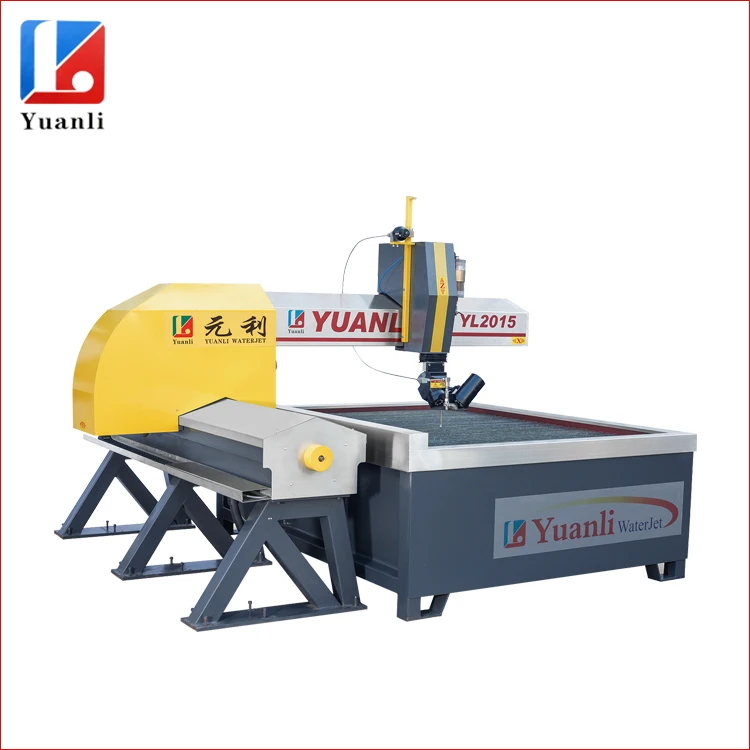

hot sale high quality factory price water jet stone cutting machine

Features Of Product:

1. It has the cutting ability of full direction ,can carry out any plane curve cutting.

2.The structure of platfrom is specially reinforced,it will not be shaking when the cutting head is running,and the cutting speed is fast and the precision of machining is strong.

3.The screw mandrel and the lead rail are provided by taiwan's manufacturers,the X axis and the Y axis with the oil-immersed,it has the effect of lubricating,with the structure of water-proof and dustproof,can make sure the machining precision of cutting platfrom,and improve the lifetime of the screw mandrel and lead rail.

4.The cutting head is equipped with the pneumatic water switch that can improve the productive efficiency.

5.The stainless steel protection cover is dust-proof,waterproof,rustproof,erosion proof,making the platform bright all year.

After-Sale Services

1.Installation and training: we can send technician to your place for the complete installation and training. The buyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.

Item		Water jet stone cutting machine
Model		YL2515
Structure		Cantilever
Cutting table size		2600*1600mm
Stroke	X-axis	2500mm
	Y-axis	1500mm
	Z-axis	150mm
CNC Controller		Step System / AC Servo System
Accuracy		±0.1mm
Cutting	Repeatability	±0.05mm
	Traverse speed	6500/15000 mm/min
Power supply		220V/380V/415V AC,50Hz
Turbocharger parameters
Item	Waterjet cutting machine
Model
Maximum pressure	450Mpa
Normal operating pressure	350-380Mpa
Main motor power	37KW /30KW
Gantry	Variable
Cooling	Wind/Oil/Water
High-pressure cylinder	Imported
Inlet valve	Imported
Ceramic rod	Imported
Accumulator	Single taper
Power supply	415/380/220V AC 3P

COMPANY PROFILE

Foshan Yuanli Precision Machinery Co.,LTD.CNC water jet can cut on any plane and material such as glass,granite, marble and steel plate etc., the cutting materials' thickness can be reached to 150mm maximum; It can enhance the productivity efficiency substantially by installing the reliable pneumatic high pressure water switch control device on the cutting head;and the unique sand valve design makes the sand flow more smoothly and easier to be cleaned.Our company can customize different sizes according to user requirements;and our products and design can also ment the traditional consumers' habits,The pursuit of high-quality low-consumption products, to provide a wide range of after-sales service is our commitment to each client.
