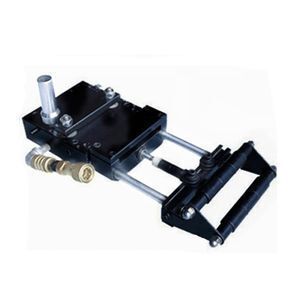

AF-5C 150mm Press Pneumatic Strip Air Feeder

Supplier: Shenzhen Xuting Mould Technology Business Department
Region: Guangdong, China
Contact: Ms Tovi D
Price: $360.00 /set
Min. Order: 1 set

Click here to contact

Product details

Use:	Sheet;	Dimension(LWH):	45x20x15cm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	1 Year;
Certification:	ISO9001:2008;	Power(W):	pneumatic;
Brand Name:	XT;	Delivery Detail:	0 days after payment;
Weight:	50KG;	Condition:	New;
Type:	Feeder Machine;	Place of Origin:	Guangdong China (Mainland);
Max. Feeding Length:	150mm;	Single package size:	50X25X15 cm;
Max. Feeding Width:	150mm;	Single gross weight:	50 KG;
Package Type:	carton;	Voltage:	380V;
Selling Units:	Single item;

Product Description

Detailed Images

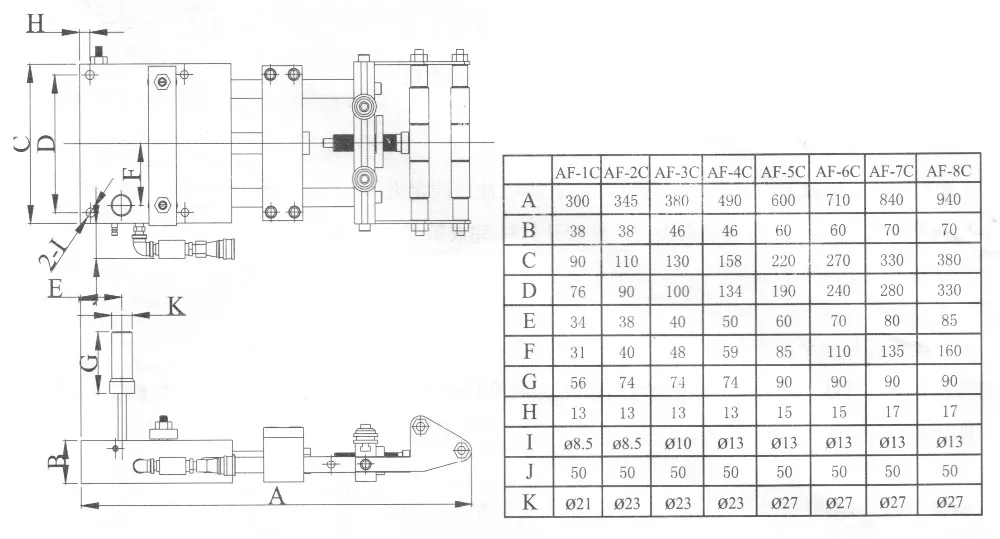

Feed size :

Feed width : 0-150mm

Feed length : 0-150mm

Feed thickness : 0-2mm

Feed speed : 80rpm

Air consumption : 100.5L/mm

Weight : 46kg

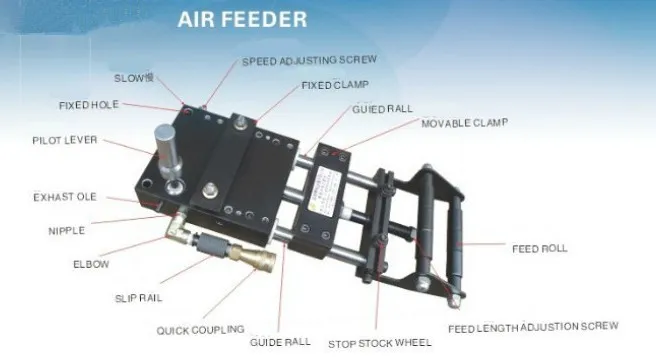

Feature :

1.Resistant, easy operation
2.high stability, precision and accurate feeding
3.Suitable for automated processing of thicker material
4.Plywood using a slider-type multi-cylinder under the pressure of plywood
5.The machine uses the new pneumatic slow scales, in order to eliminate vibration of rapid feeding

Packing & Delivery

AF-5C 150mm Press Pneumatic Strip Air Feeder

Feed size :

Feature :
