New products microwave puffing and baking machine for snack

Product details
Payment Terms:L/C,T/T;After-sales Service Provided:Engineers available to service machinery overseas;
Cooling system:Water & oil cooling system;Packaging Detail:wooden cases;
Weight:2500kg;Dimension(L*W*H):11000*1150*2000mm;
Usage:puffing & baking & roasting;Delivery Detail:within 30 work days;
Material:Stainless Steel 304;Condition:New;
Control way:PLC;Heating source:Electricity;
Certification:CE;Conveyor belt:Teflon;
Model Number:JN-60;Place of Origin:Shandong China (Mainland);
Voltage:380V, can be customized;Type:microwave puffing and baking machine;
Warranty:12 month;Application:snack food factory;
Installation:Under Technician's Guidance;Port:Qingdao Port;
Magnetron:Toshiba;Brand Name:ADASEN;
Supply Ability:300 Set/Sets per Year;Product name:New products microwave puffing and baking machine for snack food;
Power(W):60KW;

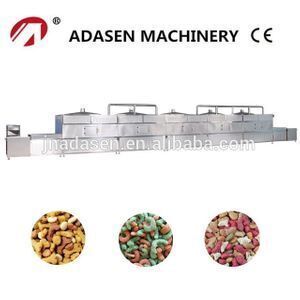

New products microwave puffing and baking machine for snack food

Product Description

General Description

Machines with automatic temperature control system, automatic microwave density control system, heating time control system, automatic alarm system,optional PLC control system,water cooling system to ensure that the equipment 24 hours of continuous work.

Equipment structuremicrowave machine

1.Microwave heating system

?Microwave heating boxes,2mm thickness 304 stainless steel.

?In order to facilitate cleaning and operation, the box body is favorable for the discharge of the gas to be cleared.

?The top has a wet discharging hole, with a wet exhaust hood. Inter layer gas exchange.

2.Microwave suppression system

?The machine equipped with microwave suppressor to prevent microwave leakage.

3.Transmission system

?Transmission motor, frequency control, speed adjustable.

?Using Teflon high-temperature microwave special conveyor belt, pneumatic deviation device,directional guide, without correction.

4.Cooling,exhaust system

?Equipment cooling system:using closed cooling tower.

?Equipment exhaust system:environmental low-noise centrifugal fan.

5.Control and detection system

?The equipment control system adopts intelligent PLC one-touch control mode. ?Equipped with Raytek infrared radiation thermometer, far infrared probe temperature range: (0 ~ 300 degrees).

?Equipment is equipped with 1 sets of color LCD TV monitoring and control settings.PLC can help monitor the working state of each magnetron.

Technical Parameters

Power supply

380V±10% 50HZ±1% three-phase five-wire(adjustable)

Microwave power adjustment range

0-60KW(adjustable)

Ambient temperature

-5-40°C

Relative humidity

≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas

Height of the inlet and outlet



60 mm(adjustable)

Microwave leak



accord with a country GB10436-89 standards(<5 mw/cm^2)

Equipment safety



accord with GB-5226Electrical safety standard

accord with a country GB16798-1997 Food machinery

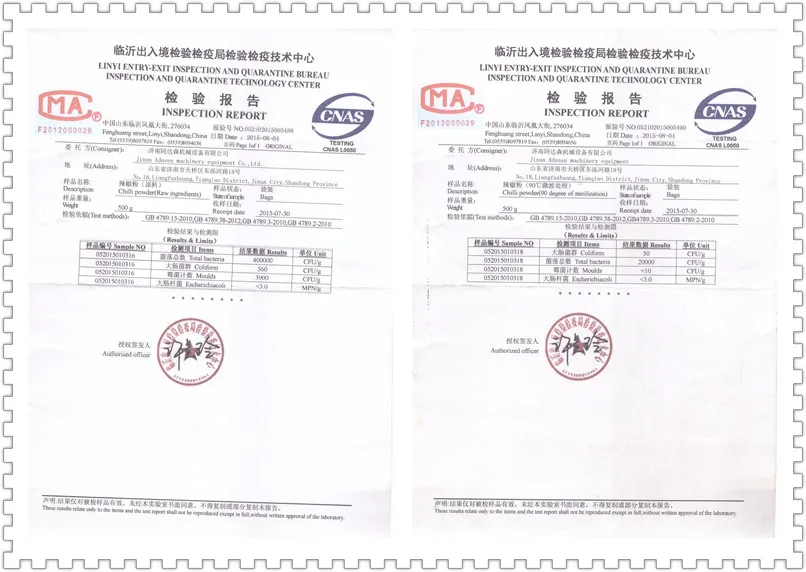

Reference of machine reportmicrowave

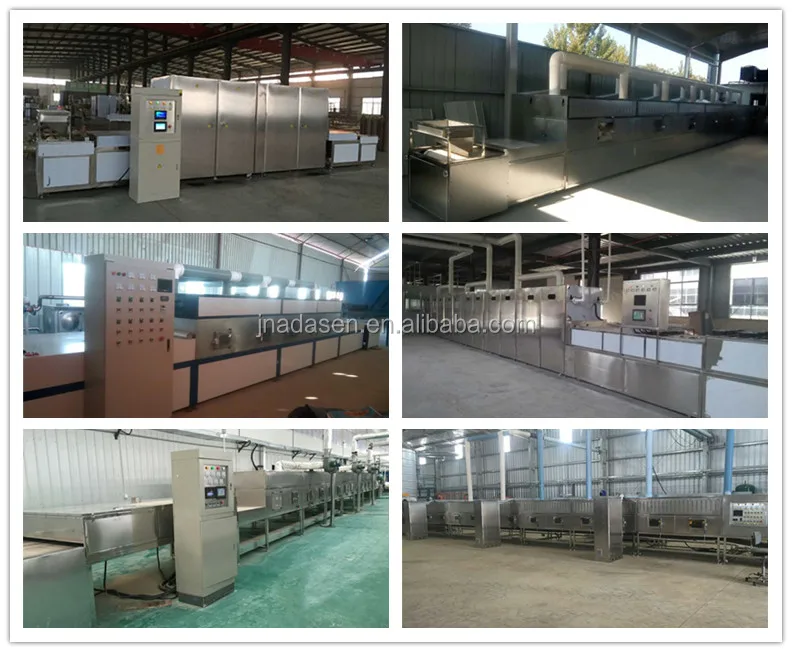

Reference of new type microwave machinemicrowave machine

Why choose us

Company information

Adasen company is a hi-tech enterprise that is engaged in professional developing,producing and selling on microwave energy applying equipment,which is one of the biggest scale microwave energy equipment manufacturer in China since 2009.Our machine models from JN-12 to JN-300.Used in food,medicinal materials,wood, paper products, chemicals, liquid sterilization etc.The equipment can be specially designed according to your products' features.

Adasen microwave certificate&awards

microwave Certification_

Adasen microwave workshop

1microwave factory

Adasen microwave workers

Microwave worker 1

Adasen microwave customers

1microwave customers

Our Services

Adasen Guarantee

Before payment,free contact for the most suitable machine and free professional design for each customer especially.

After sale service,24 hours technical support by phone, email/whatsapp/skype .For the whole equipment,warranty is 12 months,within 12 months,if have equipment quality problems,we will provide accessories freely. After the expiration of the warranty period,if have spare parts problem,we only receive the cost of required replacement parts.We commit we will provide free technical support of equipment all whole life.

Packing and Shipping

1.Transportation:By vessel

2. Delivery Term:FOB/CFR/CIF

3. Delivery time:25 work days after having received deposit

4. Package:wooden cases(fully meets with export package requirements)

5. Payment Terms:50% deposit by T/T,balance 50% paid by T/T before shipment.50% deposit by T/T,balance 50% paid by L/C before shipment.

wooden package

FAQ

Adasen microwave company

1. Why choose us?

Answer: Adasen~Microwave Equipment Expert Beside You!Send inquiry to Adasen now!

1. Professional technology, this food drying machine has been developed once by once, enjoying high reputation.

2. Good after-sales service: English instruction manual,common problem can be solved by whatsapp/skype/wechat visual telephone. During the guarantee period, if there is any broken, we will offer you spare parts and technical support.

3. Fast delivery and good service.

4. All the machines are strictly inspected before making shipment.

2. Are you a factory or trading company ?

Answer : We are the manufacturer.As only the machine made by ourself ,quality can be trusted,and most important thing is we can do better service after sales. we know how to fix the problem in each parts easily, so welcome to visit to our factory.

3. Can you guarantee your quality ?

Answer: Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

4. Can you design your machine according to our requirements ?

Answer: Yes, we can . Because for different product , will select different kind belt . And you maybe have warehouse area limitation . About the power source , your side maybe 400V,415V,380V etc.
