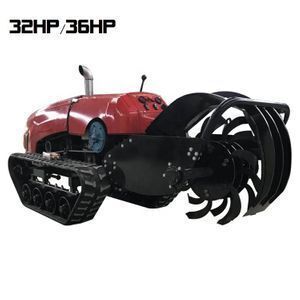

32HP/36HP agricultural cultivators small tillage machine remote control trencher for sale

Supplier: Jining Haohong Industrial And Mining Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Jane Haohong
Price: $5200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Farm Cultivator;	Weight:	1000kg;
Product Name:	agricultural tillage;	Local Service Location:	United States;
Showroom Location:	United States;	work type:	remote control;
Brand Name:	HAOHONG;	Usage:	agriculture machinery;
Condition:	New;	Engine type:	Diesel;
After-sales Service Provided:	Free spare parts,Video technical support,Online support;	Supply Ability:	500 Set/Sets per Month;
Payment Terms:	T/T,Credit Card;	Port:	Qingdao,etc.;
Key Selling Points:	remote control & crawler self-propelled;	Place of Origin:	Shandong China;
After Warranty Service:	Video technical support,Online support,Spare parts;	Power Type:	Diesel;
Dimension(LWH):	270012001050mm;	Working Width:	1200mm;
Packaging Detail:	separate packing in wooden case or nude packing together in container 32HP/36HP agricultural cultivators small tillage machine remote control trencher for sale;	weight:	850kg(host);
Certification:	SGS;	Model:	HHGY-32;
Use:	Farm/ greenhouse/orchard;	Engine:	CHANGCHAI;
Product Type:	Agricultural Farm Machinery;	Color:	Blue/ red;
Warranty:	1 year;	Applicable Industries:	Farms,Home Use,Retail,agricultural micro tillage machine;

32HP/36HP Agriculture Cultivators Tillage, Trencher,Lawn mower... for sale

Product Description

Host parameters
Engine	Changchai/32HP
Gear position	Ahead 3/Back 1
Remote control distance	100m
Weight	900kgs
Size	280012001200(The size includes rotary tillage)
Tiller parameters
Rotary tillage depth	20cm
Rotary tillage width	1.2m
Work efficiency	1400m²/h
Knife shaft speed	300rpm/min
Weight	160kgs
Trencher parameters
Trench depth	30-35cm
Trench width	30cm
Work efficiency	800-1000square meters/h
Cutter disc speed	550rpm/min
Type	Cutter disc type
Weight	132kg
Lawn mower parameters
Cutter grass width	1.2m
Stubble height	3-5cm
Work efficiency	1500m²/h
Knife shaft speed	1000rpm/min
Type	flail mower
Weight	150kgs
Sprayer parameters
Spray nozzle	7pcs
Tank capacity	160L*2
Spray height	8-10m
Spray width	5-6m
Size	250011501100mm
Weight	110kgs
Fertilizer drill parameters
Fertilization depth	20-25cm
Tank volume	150L
Type	Ditching, fertilizing and covering multi-function
Weight	196kgs
Ridging parameters
Ridge height	20cm
Ridge bottom width	70cm
Ridge width	40cm
Ditch width	30cm
Unilateral width	25cm
Weight	18kgs
Back fill parameters
Backfill width	110cm
Spindle speed	550rpm/min
Type	Spiral type
Weight	24kgs
Bulldozer parameters
Height	36cm
Width	112cm
Weight	44kg
Tansportation parameters
Loading capactity	500kg
Platform height from the ground	110cm
Weight	86kg

Remote-controlled track-type trencher, mainly composed of gearbox and main engine transmission box. Mainly used for farm/orchard etc. ditching and rotating cultivation and fertilizing and transportation. There are NINE major functions: 1- Fertilizer. 2-Ditch/Trencher. 3-Rotary tiller. 4-Lawn mower .5-Sprayer. 6-Ridger. 7-Transportation platform.8-Backfill soil 9-Bulldozer. One machine saves labor and your valuable time. The working principle of this machine is two-way power of the engine, which is transmitted through the V-belt to the gearbox, and the gear-driven machine runs the ditching work and completes the fertilizing operation once. Rotary tillage, weeding and backfill operations completed by replacing attachments.
