multifunction agriculture machinery remote control sprayer lawn mower cultivators

Supplier: Jining Haohong Industrial And Mining Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Jane Haohong
Price: $5050.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	270012001050mm;	Engine:	CHANGCHAI;
Working Width:	1200mm;	Use:	Farm;
Product Type:	Agricultural Farm Machinery;	Warranty:	12 months;
Brand Name:	HAOHONG;	Certification:	ISO9001;
Packaging Detail:	wooden box or nude package in container multifunction agriculture machinery remote control sprayer lawn mower cultivators;	After Warranty Service:	Video technical support,Online support,Spare parts;
Showroom Location:	United States;	work type:	remote control;
Package Preview:	;	Applicable Industries:	Farms,Home Use,Retail;
Place of Origin:	Shandong China;	Key Selling Points:	remote control;
Engine type:	Disel;	weight:	850kg;
Power Type:	Diesel;	Weight:	850kg;
Local Service Location:	United States;	Color:	Yellow;
Type:	Farm Cultivator;	Payment Terms:	T/T;
Condition:	New;	Product Name:	agriculture machinery remote control sprayer lawn mower cultivators;
Model:	HHGY-32;

multifunction agriculture machinery remote control sprayer lawn mower cultivators

Application

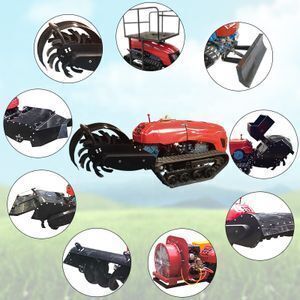

multifunction agriculture machinery remote control sprayer lawn mower cultivators is a kind of easy-to-use and widely-used agricultural machinery. The remote control is used to control the whole machine. 3 + 1 walking gearbox, 230mm international engineering rubber track, one machine with nine functions. Only one host is needed to realize the functions of rotary ploughing, furrowing, weeding, fertilizing, pesticide application, backfilling, ridge, bulldozer and transportation platform by changing different attachments, greatly improving the use of the field management machine Rate, if farmers want to complete a variety of operations, they do not need to buy new machines, so their cost input has been reduced.

Specification

Host parameter
Engine	Changchai/32HP
Gear position	Ahead 3/Back 1
Remote control distance	100m
Weight	900kgs
Size	280012001200(The size includes rotary tillage)
Tiller parameters
Rotary tillage depth	15cm
Rotary tillage width	1.2m
Work efficiency	1400m²/h
Knife shaft speed	300rpm/min
Weight	150kgs
Trencher parameters
Trench depth	30-35cm
Trench width	30cm
Work efficiency	500-600m/h
Cutter disc speed	300rpm/min
Type	Cutter disc type
Lawn mower parameters
Cutter grass width	1.2m
Stubble height	5-10cm
Work efficiency	1500m²/h
Knife shaft speed	2000rpm/h
Type	flail mower
Sprayer parameters
Spray nozzle	7pcs
Tank capacity	160L*2
Spray height	5-6m
Spray width	10-12m
Size	250011501100mm
Fertilizer drill parameters
Fertilization depth	15-20cm
Tank volume	150L
Type	Ditching, fertilizing and covering multi-function
Ridging parameters
Ridge height	20cm
Ridge bottom width	70cm
Ridge width	40cm
Ditch width	30cm
Unilateral width	25cm
Back fill parameters
Backfill width	110cm
Spindle speed	550rpm/min
Type	Spiral type

Product Description

Configuration diesel engine 23.5kw, Choose 3+1 gear box (high and low speed),Forward speed 1.48-5.59km/h,reverse speed 0.85 km/h,Walking system is tracked (rubber and steel tracks can be used in two forms),operation way is remote control,remote control distance more than 100m. this machine configuration the tiller, lawn mower, aslo can Optional the Cultivation, fertilization, weeding, spraying and traction and so on. The utility model is a typical self-propelled multifunctional machine tool.
