BV THW THHN electrical wire cable 2.5mm 4mm 10mm 16mm single core pvc insulated copper cable wire
- 0.15 >=3000 meters
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| standard: | BS6004 IEC227; | Packaging Detail: | 10days after confirming the order; |
| Voltage: | 450/750V300/500V300/300V.(600/1000V; | Insulation Material: | PVC; |
| Packing: | 100/200/305/500Meter; | Certification: | CCC CE RoHS; |
| Application: | Heating; | Conductor Material: | Copper; |
| Model Number: | single cable; | Port: | ningbo/shanghai/guangzhou; |
| Jacket: | PVC; | Type: | Insulated; |
| Place of Origin: | Zhejiang China; | Brand name: | HOLDEN; |
| Conductor Type: | Stranded; | Keyword: | single Cord; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Conductor Material: | Copper; |
| Color: | Red/black/blue/yellow+green; | Supply Ability: | 2000 Kilometer/Kilometers per Day; |
| Brand Name: | HOLDEN OR OEM; | Application: | indoor/ outdoor /industray supply; |
Product Description
| Coductor | Copper / Aluminum, based on client's requirements | |
| Construction | Bare copper wire | |
| Insulation jacket | ||
| PVC sheath | ||
| Colors | Assorted upon request | |
| Voltage | 300/500V, 450/750V | |
| Application | The cables are used for general purpose, as building wire for power, lighting and control wiring. They can be place into trucking and conduit. | |
| Specifications | CCC ISO certificated | |
Strict QC | ||
Prompt delivery | ||
| OEM/ODM | Available | |
Sample | Free, freight charge prepaid or negotiation | |
+
Normal area (mm2) | Structure (mm) | Insulation thickness (mm) | Approx overall dia. (mm) |
1.0 | 1/1.13 | 0.60 | 2.50 |
1.5 | 1/1.38 | 0.70 | 3.00 |
7/0.52 | 0.70 | 3.20 | |
2.5 | 1/1.78 | 0.80 | 3.40 |
7/0.68 | 0.80 | 3.60 | |
4.0 | 1/2.25 | 0.90 | 4.00 |
7/0.85 | 0.90 | 4.20 | |
6.0 | 1/2.76 | 0.90 | 4.80 |
7/1.04 | 0.90 | 5.00 | |
10.0 | 7/1.35 | 1.00 | 5.80 |
16.0 | 7/1.70 | 1.00 | 6.80 |
25.0 | 7/2.14 | 1.20 | 8.50 |
35.0 | 7/2.52 | 1.20 | 10.00 |
50.0 | 19/1.78 | 1.40 | 11.90 |
70.0 | 19/2.14 | 1.40 | 13.70 |
95.0 | 19/2.48 | 1.60 | 15.80 |
120.0 | 37/1.95 | 1.60 | 17.20 |
150.0 | 37/2.20 | 1.80 | 19.30 |

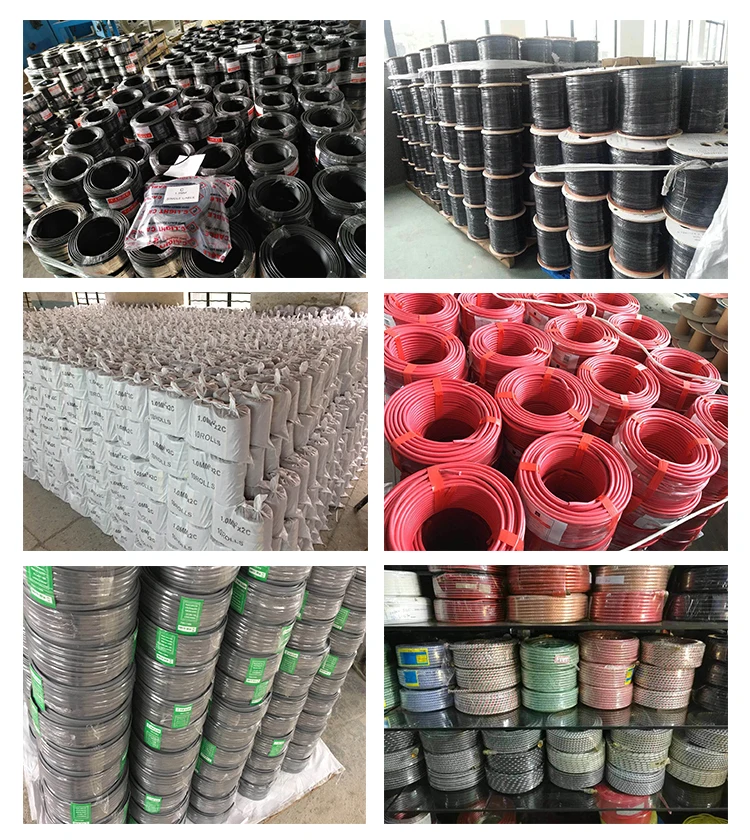

Product and Factory
