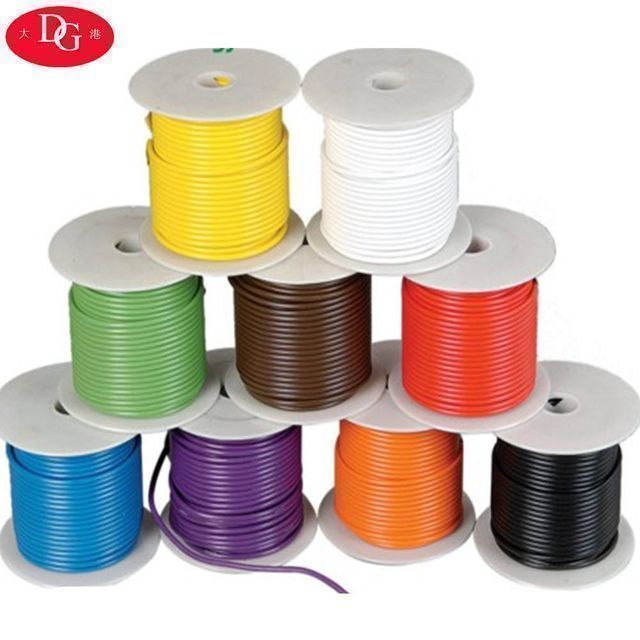

1.5mm 2.5mm 4mm 6mm 10mm indoor wiring cable copper wire

Housing with power cord

application:

These cables are used to be pulled into raceways and conduits for electrical installations such as power, lighting, appliance and switchgear wiring

Coordination code:

• 0.75mm²& 1.0mm²Solid conductor wire H05V-U
• 1.5 mm²& 2.5mm²Solid conductor wire H07V-U
• 1.5 mm²to 120 mm²Stranded conductor wire H07V-R

put up:

• Ref: 6491X or 6491X HR*
• Conductor: Class 1 or 2 solid/stranded pure copper per BS6360/IEC60228-1
• Insulation: PVC Type TI 1 to BS7655 / *PVC Type TI 3 HR to BS7655

Standard color:

red, yellow, blue, black, green, yellow/green, brown, gray other colors on request

Package:

• Size 0.75mm²to 35mm²In reels/coils of 100 yards and 100 meters
• All sizes available on 500m and 1000m non-returnable wooden reels
• Custom lengths available upon request

Technical data:

• maximum. Working temperature: 70^EuropeC/*105^EuropeC
• Rated voltage: 450/750V (0.75mm is 300/500V²& 1.0mm²)
• Standard: generally BS6004

normal size
