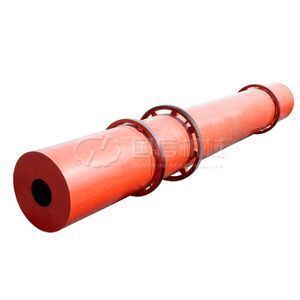

Alfalfa Hay Agro Waste Pellet Production Line Rotary Dryer Drying Equipment

Supplier: Gongyi Guoxin Machinery Factory (General Partnership)
Region: Henan, China
Contact: Ms Lisa Chen
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Keywords:	Hay rotary dryer;	Name:	Alfalfa Hay Waste Pellet Production Line Rotary Dryer Drying Equipment;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	Hay rotary dryer directly loading into 40HQ container, small parts packed by wooden box.;
Dimension(LWH):	15000X1500X2500mm;	Port:	Qingdao,Shnghai,Dalian,Guangzhou;
Key Selling Points:	Energy saving;	Condition:	New;
Local Service Location:	United States;	Showroom Location:	United States;
Supply Ability:	120 Set/Sets per Year Hay rotary dryer;	Power(W):	22000-55000;
Application:	coal,sand;	Voltage:	Customized;
Material moisture:	<85%;	Brand Name:	Guoxin;
Working type:	Automatic;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Diameter:	800-3000mm;	Warranty:	1 Year;
Type:	Rotary Drying Equipment;	Temperature range:	10 ~200;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;	After-sales Service Provided:	Online support,Video technical support,Free Spare Parts,Field installation, commissioning and training,Field maintenance and repair service;
Certification:	CE,ISO;	Heating source:	Wood chips,coal,gas,diesel etc.;
Material:	Steel;	Color:	Customer's Request;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Place of Origin:	Henan China;

Alfalfa Hay Agro Waste Pellet Production Line Rotary Dryer Drying Equipment

Hay rotary dryer is a new technology developed by Guoxin. It is suitable for treating crushed hemp flowers and leaves with high efficiency and good drying effect. Can dry fresh cannabis to 10-15%. The drying temperature and speed of the hemp drying equipment can be controlled.

In addition,If you want to smash some fresh hemp plants before drying, we can offer required peripherals such as branch and leaf separator,hemp shredder.

Hay rotary dryer instruction:

Capacity:500-8000kg/h.

Moisture input: <85%. Moisture output:10-15%.

Fuel: Coal,gas,diesel,wood chips,boiler etc.

Purpose:Extracting CBD and oil

Drying temperature:0-300 degree centigrade.

Raw material:hemp leaves and flower.

The working principle of Hay rotary dryer :

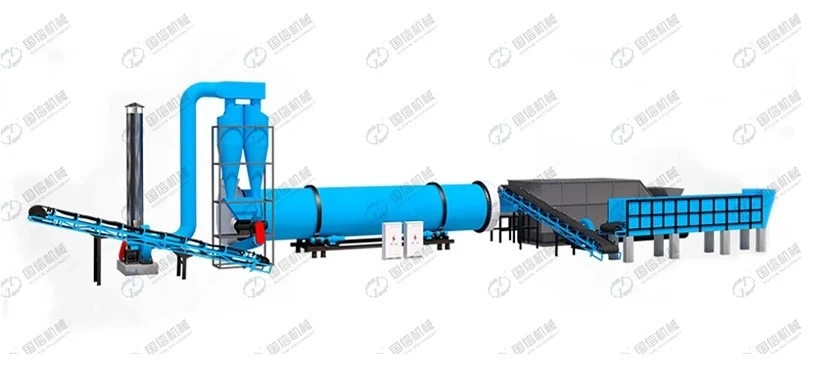

The hemp is transported by the scraper conveyor to the inside of the rotary hemp drying equipment. and the front is equipped with a hot blast stove. The generated hot gas enters the dryer through the fire separating device, and the material is dispersed through the low-speed rotation and bending plate.

so that the high-temperature airflow passes through the material and make heat exchange, the hemp drying equipment has a certain angle of inclination, and sufficient air volume to drive the material forward.

Finally, the dried material is discharged from the discharge port.The temperature generated by the heat source enters the long refractory lining chamber to maintain a low temperature. Adding auxiliary air to the chamber to maintain a lower temperature level.

Technical parameters of rotary Hay rotary dryer :

Model	Rotor diameter (mm)	Drum length (m)	Reducer model	Ratio	Speed (r/min)	Power (kw)
Φ0.6X0.8	Φ600	8	JZQ350-16-1		8	3
Φ0.8X1.0	Φ800	10	JZQ450-16-11		7.2	4
Φ1.0X10	Φ1000	10	JZQ450-16-11		6.73	5.5
Φ1.2X12	Φ1200	12	ZL50-16-1		5.8	11
Φ1.5X 15	Φ1500	15	ZQ50-1611-2	16.46	4.8	18.5
Φ1.8X14	Φ1800	14	JZQ650-111	18.84	3.2	30
Φ2.2X18	Φ2200	18	JZQ750-111	31.5	3	37
Φ2.4X14	Φ2400	14	ZL850-13-1	27.6	2.83	45

The features of Hay rotary dryer :

1. The drying strength is large. Because the material is highly dispersed in the gas stream, the total surface area of the particles is extremely dry and effective.

2, Short drying time.

3. The rotary hemp drying equipment has a simple structure, a small footprint, and it is easy to construct and maintain.

4. Large processing capacity and high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%.
