MachineryOffers

12m Big capacity Continuous mesh belt hot air hemp dryer

Product details
Voltage:380V;Warranty:1 Year;
After-sales Service Provided:Engineers available to service machinery overseas;Weight:12 Ton;
Item:hot air hemp dryer;Type:Hot Air Furnace;
drying space:104m2;Humidity discharge capacity:875-937.5kg/hr;
Packaging Detail:hot air hemp dryer packing: standard container 20GP, 40GP,40HQ;Supply Ability:20 Set/Sets per Month hot air hemp dryer;
Certificate:CE/ISO9001:2008;Mesh Layer:4-5;
Port:Qingdao Port,Shanghai Port, as you required;Certification:ISO,CE;
Condition:New;Material:Stoving varnish, Stailess Steel, Color Steel tile;
Brand Name:Guoxin;Place of Origin:China;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Escrow;After-sales Service Provided:Field installation, commissioning and training;
Key Selling Points:High Productivity;Application:Food Processing;
Application:hemp, spice,herb,vegetable,herb,bean,grain,fruit;Design:Fully automatic and continuous drying.;
Power(W):29.5KW;Applicable Industries:Food & Beverage Factory,Farms;
Dimension(L*W*H):12*2*2.5m;fuel:Diesel,gas,electricity, hot air etc.;

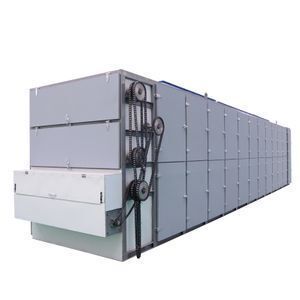

12m Big capacity Continuous mesh belt hot air hemp dryer

Brief introduction of Hemp biomass dryer:

The  Hemp biomass dryer is widely used for foods, Agriculture products, dehydrated vegetables, traditional Chinese medicinal materials,  fodder and chemical material and other processing industry.





The working principle of Hemp biomass dryer:

Hemp are fed by the feeding conveyor to the dryer. The material passes from the first layer to the last layer via the conveyor belt, it use hot air as the drying medium. The hot air passes through the material from the bottom to top. The final moisture comes out of the top of the hemp dryer. After drying, the dried material is conveyed by the discharge conveyor.





The structure of Hemp biomass dryer:

1.Feeding conveyor

2.Drying system

3.Fan

4.Heat resource

5.Discharge conveyor

6.Control system



Technical Parameters of Hemp biomass dryer:

Model No.

GX4-6

GX4-8

GX4-10

GX4-12



Dimension L*W*H (mm)

6000*2000*2300

8000*2200*2300

10000*2000*2300

12000*2000*2400



Layers

4

4

4

4



Drying area (m2)

29

45

57

69



Drying capacity of fresh hemp leaf

(30-40 ℃)

100-150   kg/hr

200 kg/hr

300   kg/hr

400 kg/hr




Total Power

15kw

19kw

26kw

27kw




Fan Power

11kw

15kw

18kw

22kw




Operating hours

24 hrs continuous working



Drying temperature

0-120 ℃












































 The details of Hemp biomass dryer:



The advantage of Hemp biomass dryer:



1. Big Capacity

2. Continuous work

3. High drying quality for each layer

4. Clean drying, not direct heating, heat exchange system







Our Techinical Support for Hemp biomass dryer:

1. After sale center in Oregon

2. More spare parts free when delivery

3. One year warranty



Options for Material for Hemp biomass dryer:



1. Color Steel tile

2. Stoving varnish paint steel

3. Stailess Steel





Customer visit our factory to check Hemp biomass dryer:



The working sites of Hemp biomass dryer:



   About GUOXIN:





  After sales service:

Guoxin Machinery Factory will dispatch one engineer to buy's working sites help buyer install drying processing line until the dryer get good effect.then our engineer will back to China.



If you are interested in our Hot air hemp dryer, please contact.



Linda Song(sales manager)
Mol/What'sapp:8618336446323
