Top Quality Ball Bearing Slide 45mm Linear Bearing
-
Supplier: Jinan Focus Bearing Co., Ltd. -
Region: Shandong, China -
Contact: Ms Sara Lim -
Price: $0.10 / >=10 pieces -
Min. Order: 10 pieces
| Model Number: | ball bearing slide 45mm; | Bearing Material: | stainless steel; |
| Bearing Certificate: | CO,ISO 9001; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; |
| Bearing Seals: | ZZ 2RS OPEN; | Precision Rating: | P0 P6 P2 P5 P4; |
| Type: | Linear; | Place of Origin: | Shandong China; |
| Bearing Clearance: | C0 C2 C3 C4 C5; | Port: | Guangzhou ,Shenzhen,Shanghai,Qingdao,etc.; |
| Supply Ability: | 10000000 Piece/Pieces per Month; | Bearing Package: | Box; |
| Bearing Brand: | NSK NTN KOYO; | Brand Name: | FCS OEM; |
| Bearing Service: | OEM Customized Services; | Packaging Detail: | 1. Industrial packaging: plastic bag + carton paper + carton or wooden ; plastic tube + carton 2. Commercial packing: 1pic/plastic bag + color box + carton 3. According to customs' requirements; |
| Product Name: | Top Quality Ball Bearing Slide 45mm Linear Bearing; | Bearing Type: | Linear Bearing; |
| Bearing Cage: | steel; |

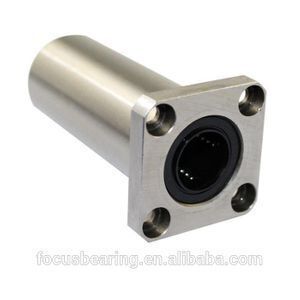

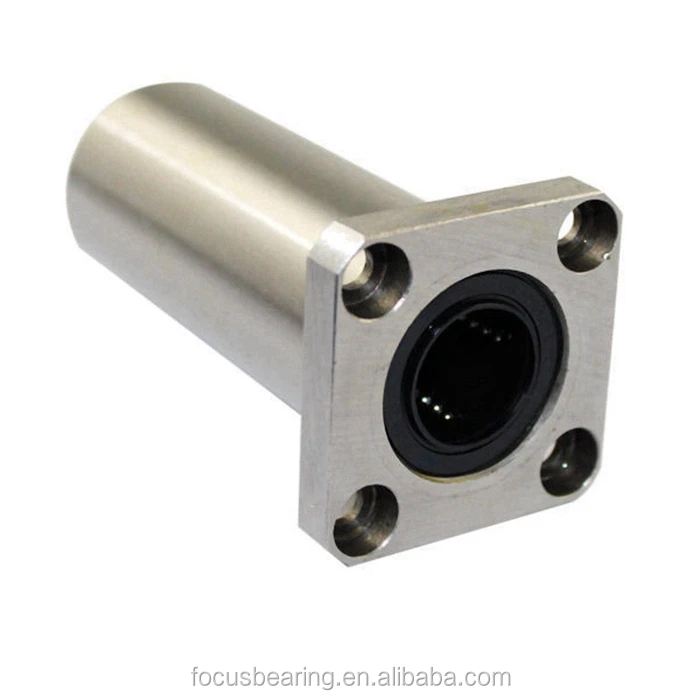

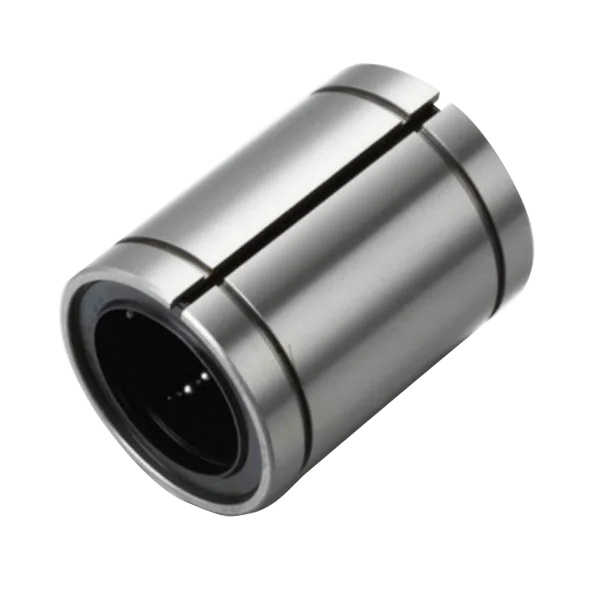

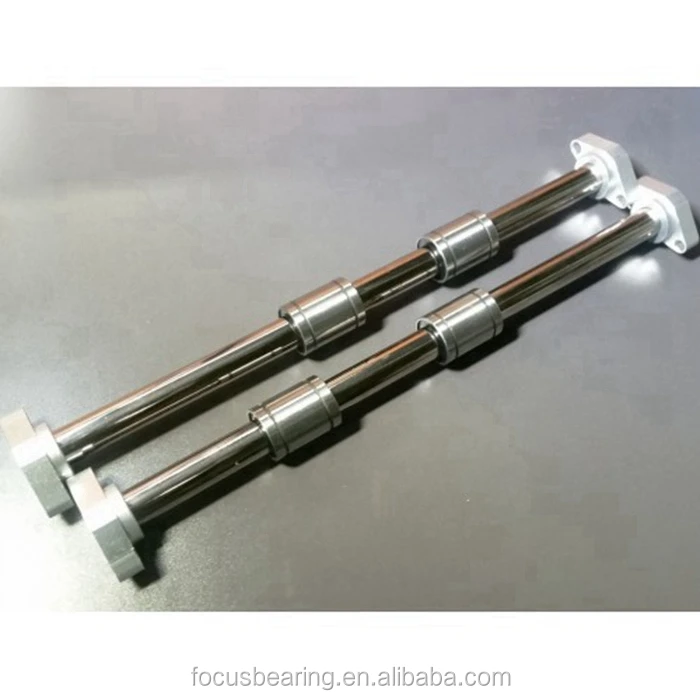

Top Quality Ball Bearing Slide 45mm Linear Bearing
A linear guide bearing or linear slide is a bearing designed to provide free motion in one direction. There are many different types of linear motion bearings.
Motorized linear slides such as machine slides, XY tables, roller tables and some dovetail slides are bearings moved by drive mechanisms. Not all linear slides are motorized, and non-motorized dovetail slides, ball bearing slides and roller slides provide low-friction linear movement for equipment powered by inertia or by hand. All linear slides provide linear motion based on bearings, whether they are ball bearings, dovetail bearings, linear roller bearings, magnetic or fluid bearings. XY Tables, linear stages, machine slides and other advanced slides use linear motion bearings to provide movement along both X and Y multiple axis.
"LM" metric standard type linear bearing
"LME" means inch standard type linear bearing
"UU" rubber seals on the both sides of the long type linear bearing

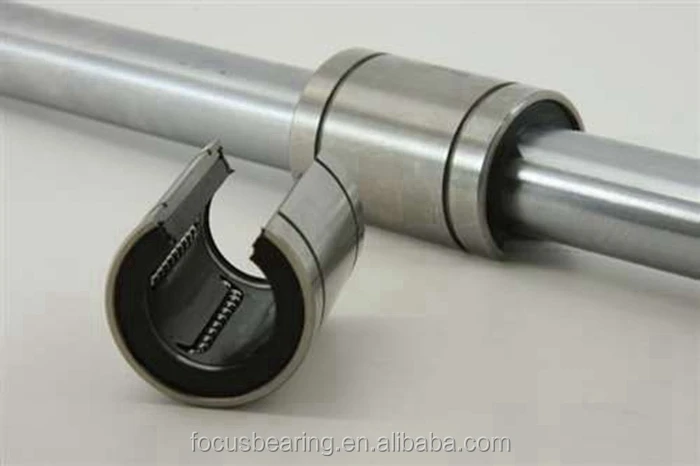

"OP" means open type linear bearing
"AJ" means adjustment type linear bearing
*LM...UU: LM...(cylinder), LM...OP(open type), LM...AJ(clearance adjustable)
*LME...UU: LME...(cylinder), LME...OP(open type), LME...AJ(clearance adjustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
| Bearing No. | Ball rows | Weight g | Inner diameter | Out diameter | Length |
| (mm) | (mm) | (mm) | |||
| LMF6UU | 4 | 26.5 | 6 | 12 | 19 |
| LMF8SUU | 4 | 34 | 8 | 15 | 17 |
| LMF8UU | 4 | 40 | 8 | 15 | 24 |
| LMF10UU | 4 | 78 | 10 | 19 | 29 |
| LMF12UU | 4 | 76 | 12 | 21 | 30 |
| LMF13UU | 4 | 94 | 13 | 23 | 32 |
| LMF16UU | 5 | 134 | 16 | 28 | 37 |
| LMF20UU | 5 | 180 | 20 | 32 | 42 |
| LMF25UU | 6 | 340 | 25 | 40 | 59 |
| LMF30UU | 6 | 460 | 30 | 45 | 64 |
| LMF35UU | 6 | 795 | 35 | 52 | 70 |
| LMF40UU | 6 | 1054 | 40 | 60 | 80 |
| LMF50UU | 6 | 2200 | 50 | 80 | 100 |
| LMF60UU | 6 | 2960 | 60 | 90 | 110 |
| LMF80UU | 6 | 5800 | 80 | 120 | 140 |
| LMF100UU | 6 | 10600 | 100 | 150 | 175 |
For More Please contact us : sales3(at)focusbearing.com
- Hot Sale Linear Bearing
- High Precison Linear Bearing
- High Speed Linear Bearing
Deep Groove Ball Bearing |
Needle Roller Bearing |

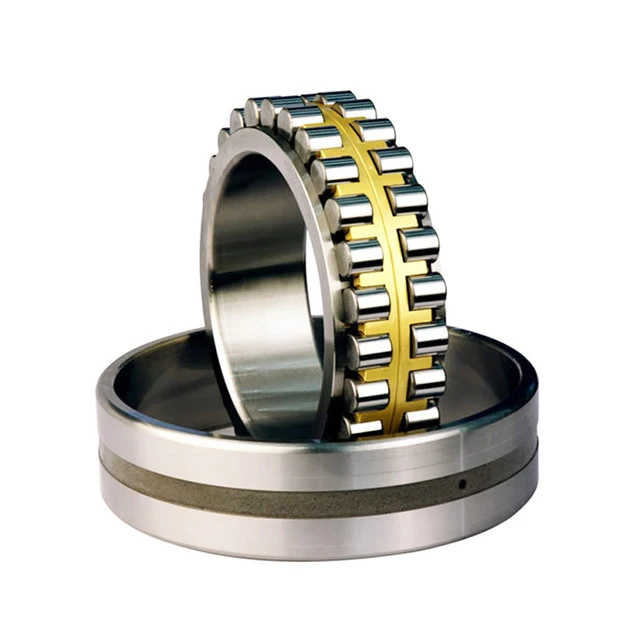

Cylindrical Roller Bearing
|

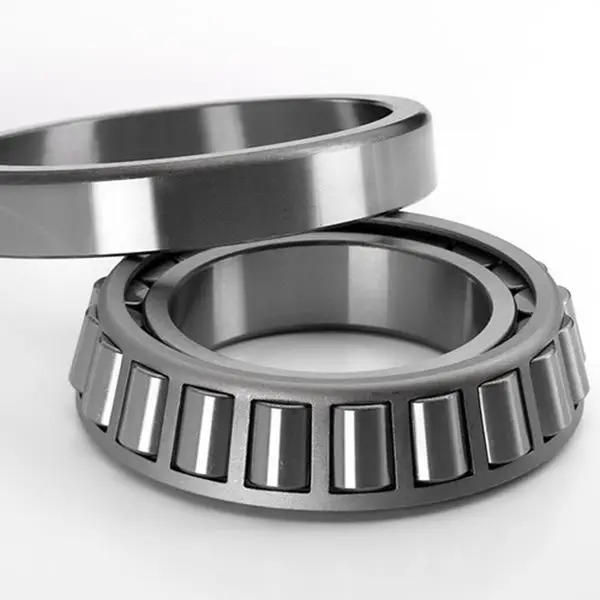

Tapered Roller Bearing |

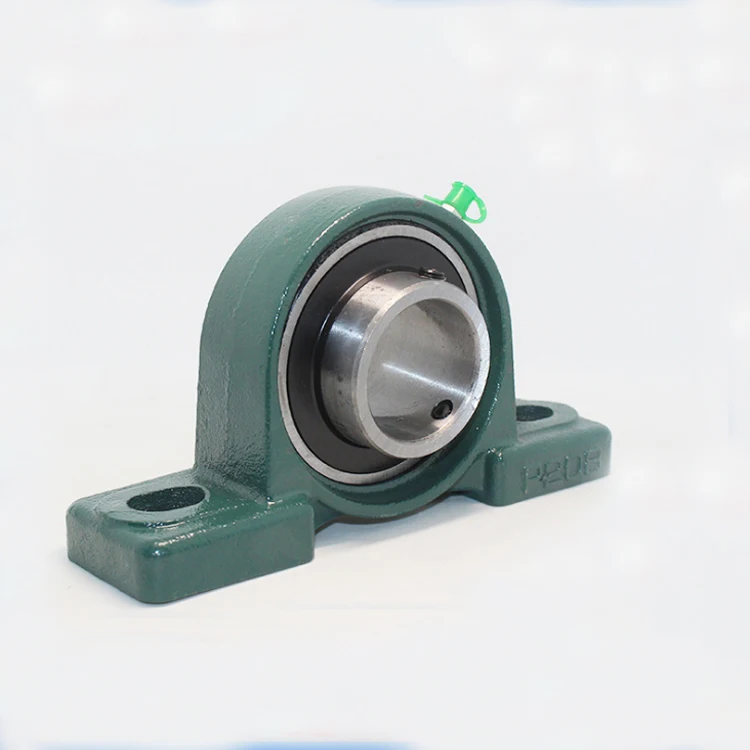

Pillow Block Bearing |
|
Linear Bearing
All of our certification is real,not fake!!not fake!! not fake!!
Contact us!Let us show you!!
FOCUS is a trustworthy bearings suppliers.Just like the name of our conmpany FOCUS.We focus on producing bearings more than ten years.We are a skillful and professional team.Our products are pre-tested, process controlled, final product re-inspected with considerate after-sales services.Strict and complete process ensure the quality of our product .Your requirements can be met in our company.

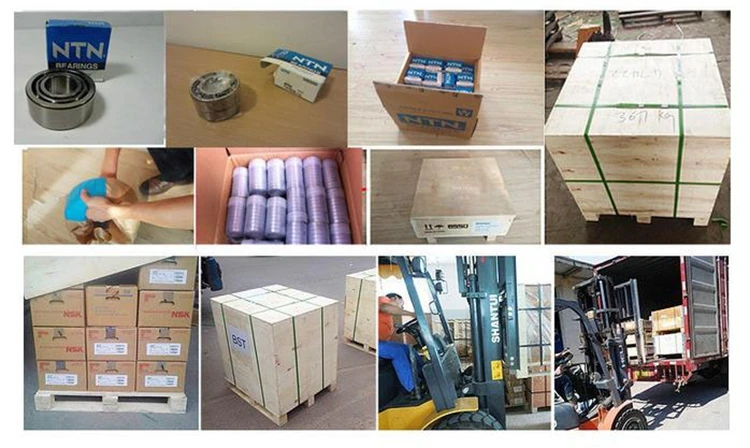

Packaging Details:
1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging:
a). plastic tube + carton + pallet;
b). plastic bag + craft paper + carton + pallet;
3. According to the requirement of customer.
Shipping:
1. Express Delivery: DHL,TNT,UPS,Fedex,EMS,ARAMEX ETC,2-4 working days to arrive if smooth
2. By Sea
3. By Air
Action now!!Contact us!!
Company Name | Jinnan Focus Bearing Co., Ltd. |
Sales Manager | Lucy Li |
What’sApp | 86+17854112922 |
Mobile | 86+17854112922 |
sales3(at)focusbearing.com | |
lixiaolu4939 | |
| Address | Mingquan square,dikou road, Jinan City,Shandong Province, China. Post code:250000 |
-
