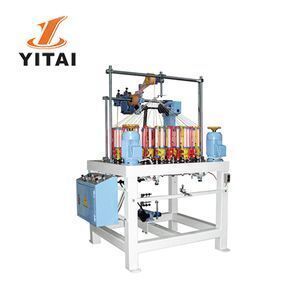

YITAI 48 Spindle High Speed Braiding Shoelace Making Machine

Supplier: Xiamen Yigo Industrial Co., Ltd.
Region: Fujian, China
Contact: Ms. Melody Wang
Price: $3400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Single gross weight:	550 KG;	After-sales Service Provided:	Engineers available to service machinery overseas;
Spindles:	48;	Brand Name:	YITAI;
Place of Origin:	Fujian China;	Warranty:	1 Year;
Package Preview:	https://sc02.alicdn.com/kf/HTB1u2T8dHorBKNjSZFjq6A_SpXa0.jpg_640x640.jpg;	Motor:	1 HP;
Head:	1;	Delivery Detail:	30 days after payment;
Model Number:	YTS 1/48;	Gross weight:	550 KGS;
Products:	Ropes, shoelaces, cords;	Machine size:	105012001600MM;
Net weight:	500 KGS;	Product name:	YITAI 48 Spindle High Speed Braiding Shoelace Making Machine;
Single package size:	105X120X160 cm;	Bobbin Size:	47*114 MM;
Selling Units:	Single item;	Package Type:	1 set yitai shoelace making machine in one standard wooden case with pp bag;

Why Choose Us ?

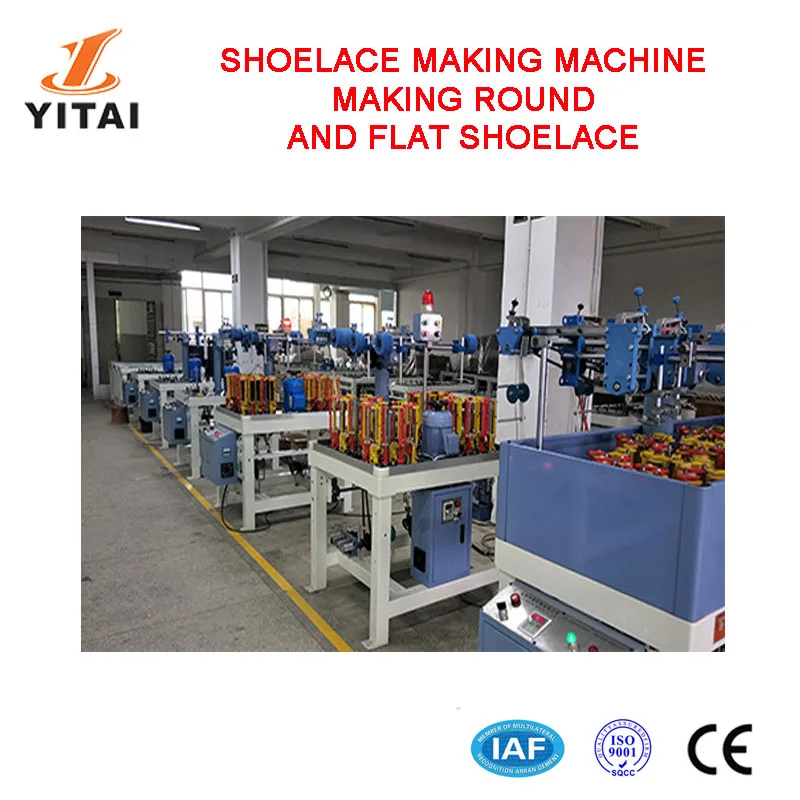

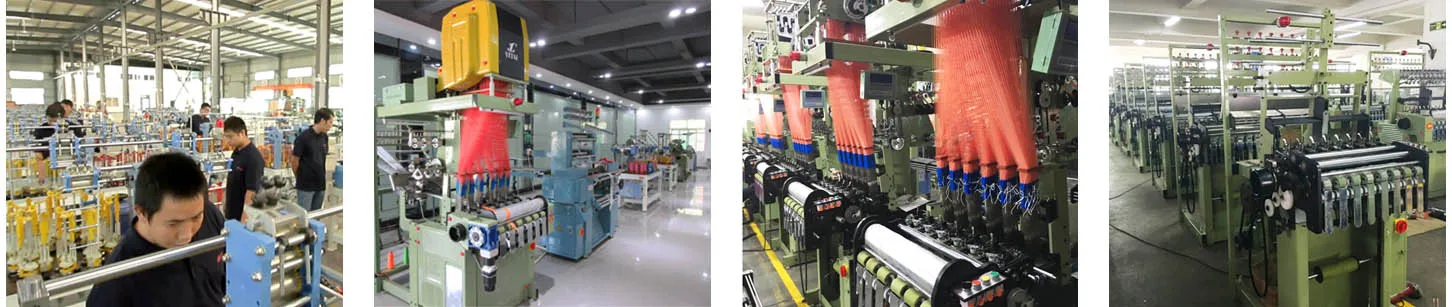

WORKSHOP SHOW ROOM JACQUARD LOOM NEEDLE LOOM

1. Specialized in textile machines since 1990

2. Engineers overseas after sale service available

3. Factory passed ISO 9001 certificate

4. All machines pass CE certificate

5. Patents for each machine

6. Have agents in India, Indonesia, Colombia, Argentina, Mexico, Peru etc.

7. Branch in Bangladesh

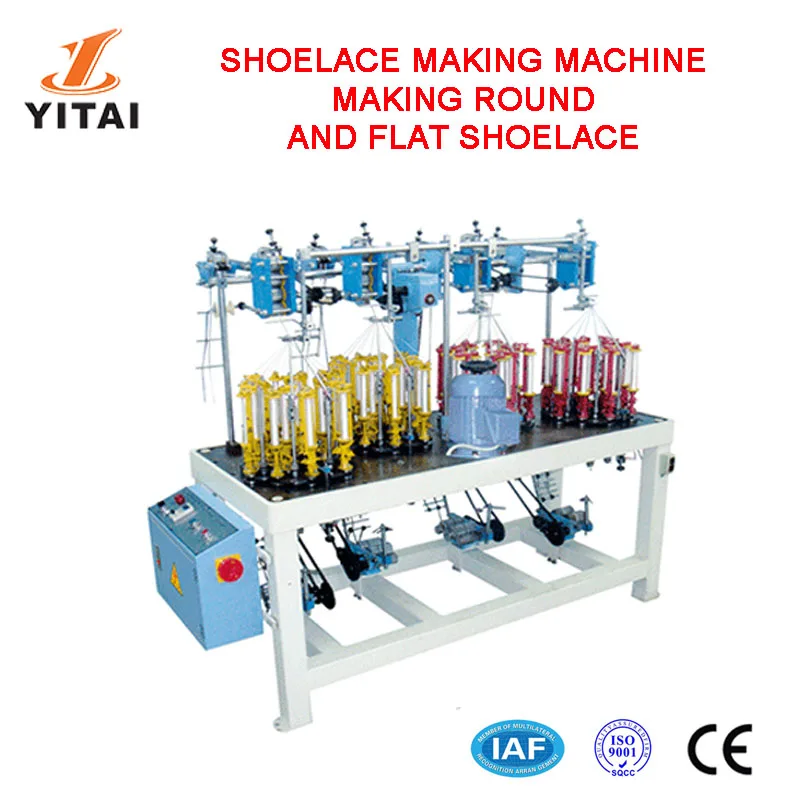

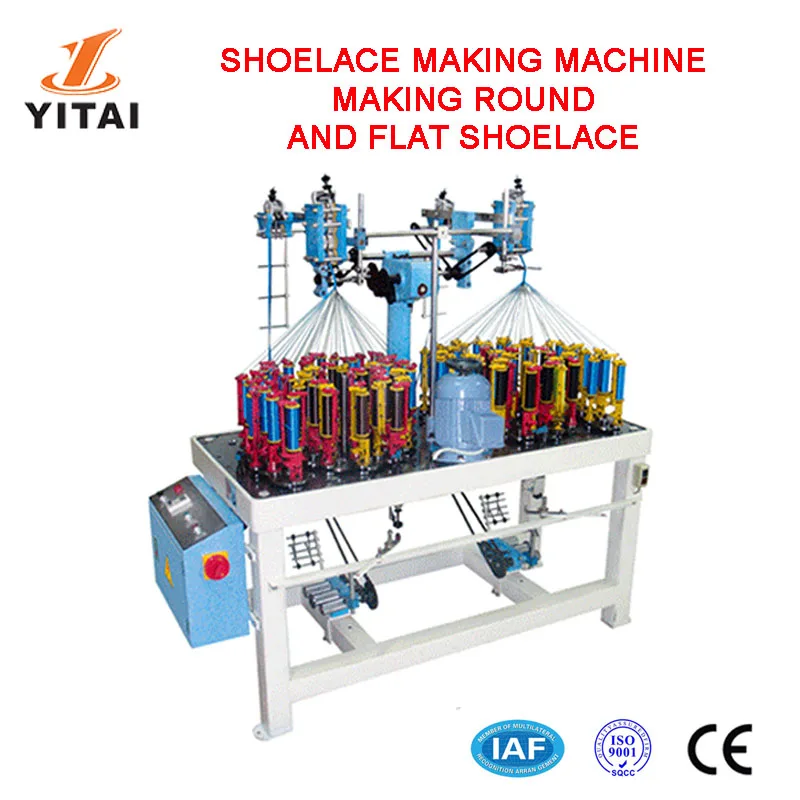

YYITAI 48 Spindle High Speed Braiding Shoelace Making Machine Information

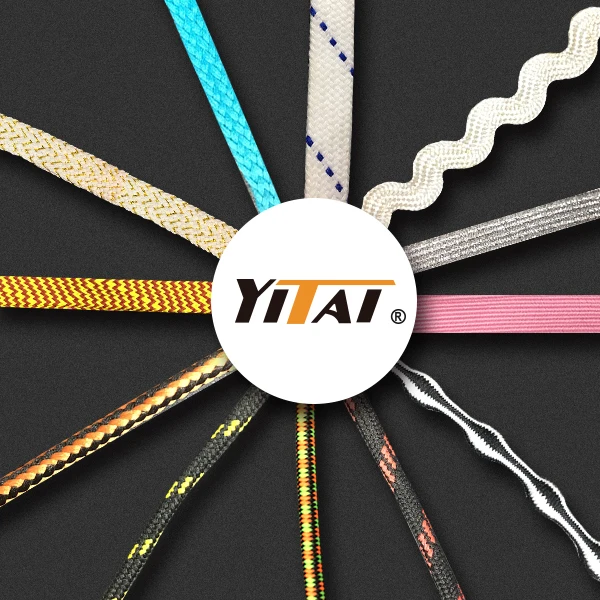

Making a variety of ropes and shoelaces. Braiding tape size:

YTS 4/16------DIA------1.5mm~11mm
YTS 2/24------DIA----- 2.5 mm ~15 mm
YTS 2/32-------DIA---- 4.0mm ~ 17mm
YTS 2/40-------DIA---- 4.0mm ~ 18mm
YTS 1/48-------DIA---- 4.0mm ~ 25mm
YTS 4/13--------W-------2.0mm~9.0mm
YTS4/17--------W-------2.0mm~13.0mm
YTS 8/9 -------W---------1.5mm~5.0mm
YTS 2/33-------W---------4.0mm~16.0mm
YTS 2/25(21,29 Spindles)-------W---------3.0mm~13.0mm
YTS 2/41-------W---------7.0mm~18.0mm
Big bobbin braiding machine tape size above 11mm

Model	Head	Spindles	Motor(HP)	Max speed of leaf tooth	Horngear size(mm)	Machine size(mm)	N.W.(KGS)	G.W.(KGS)	Bobbin type
YTS 4/16	4	16	1HP	360	90	120013001600	500	530	A,B
YTS 2/24	2	24	1HP	360	90	110014201600	500	530	A,B
YTS 2/32	2	32	1HP	360	90	105016001600	500	530	A,B
YTS 2/40	2	40	2HP	360	90	175012001600	500	530	A,B
YTS 1/48	1	48	1HP	360	90	105012001600	500	530	A,B
YTS 4/9	4	9	1HP	360	90	125012001600	500	530	A,B
YTS8/8	8	8	1HP	360	90	162010501650	500	530	A,B
YTS8/9	6	9	1HP	360	90	190010001600	500	530	A,B
YTS 4/13	4	13	1HP	360	90	95017001600	500	530	A,B
YTS 4/17	4	17	1HP	360	90	95019001600	500	530	A,B
YTS 2/21	2	21	1HP	360	90	13509501600	500	530	A,B
YTS 2/25	2	25	1HP	360	90	105014501550	500	530	A,B
YTS 2/29	2	29	1HP	360	90	105014501550	500	530	A,B
YTS 2/33	2	33	1HP	360	90	160012001600	500	530	A,B
YTS 2/41	2	41	2HP	360	90	170012501700	550	580	A,B
YTS-B 2/16	2	16	1HP	360	90	120014501750	550	580	C
YTS 2/26	2	26	1HP	360	90	105014501550	550	580	A,B
YTS 2/46	2	46	1HP	360	90	110017001600	550	580	A,B
