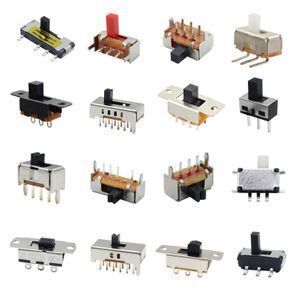

Micro mini 12 pin horizontal slide switch interruptor on-off mini Slide Switch
- 0.03 >=1000 pieces
| Current Rating: | 50mA; | Certificate: | ROHS SGS; |
| Place of Origin: | Guangdong China; | Insulation resistance: | ≥100MΩ Max; |
| Contact Resistance: | ≤50mΩ Min; | Max. Current: | 50mA; |
| Package Type: | Micro mini 12 pin horizontal slide switch interruptor on-off mini Slide Switch 1.Neutral packing : plastic bag for goods 2.Reel packing(According to customers' request ,but the price is different with neutral packing)It is usually 1000 pcs a set Delivery Time 1-2 days(small order,5-7days(big order); | Brand Name: | SHOUHAN; |
| Model Number: | slide switch; | Voltage rating: | 12V; |
| Single package size: | 1X1X1 cm; | Dielectric strength: | 250V AC for 1min; |
| Actuating Force: | 180gf±20gf; | Selling Units: | Single item; |
| Mechanical Life: | 10000 cycles/min; | Product name: | Micro mini 12 pin horizontal slide switch; |
| Max. Voltage: | 12V; | Operating temperature: | -25°C ~ 70°C; |
| Single gross weight: | 0.001 KG; |
Micro mini 12 pin horizontal slide switch interruptor on-off mini Slide Switch
Application of slide switch:
Consumer Electronics
Instrumentation
Computer Servers/Peripherals
Test/Measurement Applications
| Specification of slide switch | |
| Items | slide switch |
| Rating | 0.5A 12V DC |
| Insulation resistance | 100 MΩ min. |
| Compressive strength | 250V AC for 50Hz/1 min |
| Contact resistance | 50MΩ max. |
| Operating temperature range | -20°c to -70℃ |
| Lifetime | 5000 Cycles min. |
| Operating force | 250 ± 100gf |
| Travel | 1.5 ± 0.1mm |
| Height | Various height from 1mm to 7mm |
Q1: May I get free samples?
A: Sure, 10-20 pcs of free samples are available for normall models. We need to confirm height, operation force and price before shipment.
Q2: When can I get the quotation ?
A: We will send you quotation within 24 hours.
Q3: When can I get the samples ?
A: It depends on the Express( DHL,TNT,EMS etc), normally it will take 5-7 working days.
Q4: Can you accept small order, like 1000 pcs , 2000 pcs ?
A: Sure, but we suggest you buy more, because it really can save you time and freight charge in the near future.
Q5: What's the lead time of bulk order ?
A: Normally, lead time is 2-3 days. We will inform you lead time before order, and will confirm to you again after received payment.
Q6. What is the payment term ?
For small order, pls remit payment by PayPal. For big order, pls remit payment by TT.
Q7. Can you open mould for teminal order or uncommon modles ?
OK, we need time to discuss in details, such us the cost for open mould, and need to know the forecast, end product and lifespan.
If any other questions about slide switchm,welcome contact us as below detail:
