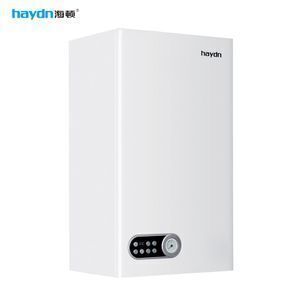

CE wall hung Gas Boiler Armenia Hot Seller

Click here to contact

Product details

After-sales Service Provided:	Overseas third-party support available;	Certification:	ISO9001;
Output:	Hot water & Heating;	Payment Terms:	T/T;
Structure:	Water Tube;	Pressure:	Low Pressure;
Style:	Vertical;	Dimension(LWH):	700400305mm;
Fuel:	Gas-fired;	Supply Ability:	100 Set/Sets per Day;
Ceretificate:	CE;	Usage:	Hot water & Heating;
Place of Origin:	Guangdong China (Mainland);	Type:	Natural Circulation;
Packaging Detail:	Boiler size (mm) : 760 x400 x 321 Packing size (mm) : 856 x 480 x 411;	Type:	Tankless;
Port:	Shen Zhen Port;	Weight:	29kg;
Power Source:	Natural Gas;	Brand Name:	HAYDN;

Technical Data:

Model		JLG35-B	JLG28-B(H)	JLG24-B(H)	JLG20-B(H)
Gas type		NATURAL GAS
						Rated gas pressure (Pa)	2000
Nominal heat input (kW)		35	28	24	20
Rated hot water productivity (L/min) (for temperature rise of 25°C)			14	12	10
		17.5
Heat output (kW)		31.5	25.2	21.6	18
Efficiency at rated thermal load		91%
						Efficiency at 30% rated thermal load	86%
Applicable water pressure (MPa)		0.04 to 0.8
Power supply		AC220/50Hz
Rated electrical power (W)		145	128
						Setting range of heating water temperature (°C)	29 to 80
Setting range of hot water temperature (°C)		30 to 60
						Expansion vessel capacity (L)	10	6
Release pressure of safety valve (MPa)		0.3
						Lift of pump(m)	6	5
Dimension of fume exhaust (mm)		Coaxial Æ60 to Æ110	Coaxial Æ60 to Æ100

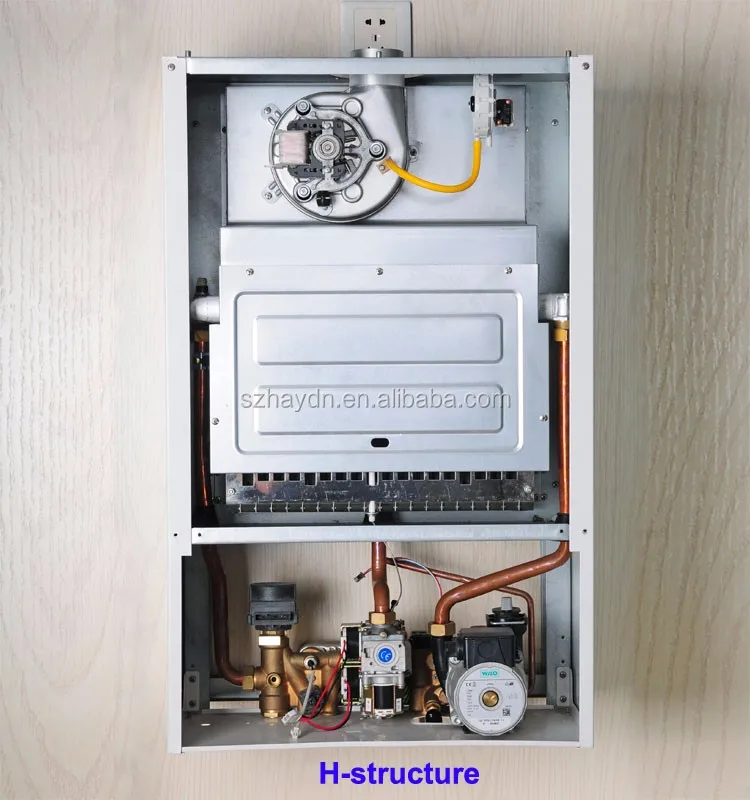

						Pieces of secondary exchanger (For type H)	14
CO Emission		less 30 p.p.m 0%O2
						Nox Emission	less 150 mg/kWh
IP Protection		IPX4D
Noise under normal working conditions (dB)		Less than 42
Boiler size	Color star/blue flame/elite. Series	758X463X321	700X400X310	700X400X310	700X400X310
(mm)	Smart/programer Series		760X 400X310	760X 400X310	760X 400X310
Case size	Color star/blue flame/elite. Series	880X540X396	800X480X410	800X480X410	800X480X410
(mm)	Smart/programer Series		860X485X420	860X485X420	860X485X420
Chimney case size(mm)			1170X195X115
Net weight (kg)		48	38	36	36
