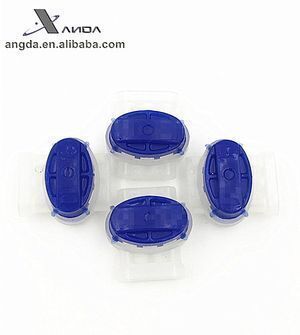

314 self-stripping Moistureproof waterproof electrical communication connector
-
Supplier: Yuyao Angda Communication Equipment Factory -
Region: Zhejiang, China -
Contact: Ms Sher Shi -
Price: $0.10 / >=10000 pieces -
Min. Order: 10000 pieces
Product details
| Port: | FOB NINGBO; | Payment Terms: | L/C,T/T; |
| Packaging Detail: | 50PCS/BOX,2000PCS/CTN; | Place of Origin: | Zhejiang China; |
| Packing: | 50PCS/BOX,2000PCS/CTN; | Color: | transparent bottom, blue lid; |
| Material: | PP or Flame retardant nylon; |
Wire Range
22-14 AWG Solid or stranded,tinned or untinned (0.5-1.5mm2) copper conductors.
For use with common thermoplastic insulated wires: T, TF,TFF,TFN,TFFN,AWM,
TEW,SAE-GPT with a maximum insulation diameter of .150 inches (3.8mm).
Installation Instructions
1.Insert 2 or 3 unstripped wires completely into connector and check their position by
looking through the translucent connector body.
2.Hold tool perpendicular to the wires and make the connection by driving the cap down
flush with the top edge of the connector body.
Wire Range
22-14 AWG Solid or stranded, tinned or untinned
(0,5-1.5 mm2) copper conductors. For use with
common thermoplastic insulated wires: T, TF, TFF,
TFN, TFFN, AWM, TEW, SAE-GPT with a maximum
insulation diameter of .150 inches (3,8 mm). Maximum
recommended current for general purpose applications:
22 AWG - 3 AMPS, 20 AWG - 5 AMPS, 18 AWG -
7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS.
Installation Instructions
1. Insert 2 or 3 unstripped wires completely into
connector and check their position by looking
through the translucent connector body.
2. Hold tool perpendicular to the wires and make the
connection by driving the cap down flush with the
top edge of the connector body.
(Voltage rated at 600 volts maximum, building wire:
1000 volts maximum, signs, fixtures and luminaires.
Operating Temperature: 105°C.
22-14 AWG Solid or stranded, tinned or untinned
(0,5-1.5 mm2) copper conductors. For use with
common thermoplastic insulated wires: T, TF, TFF,
TFN, TFFN, AWM, TEW, SAE-GPT with a maximum
insulation diameter of .150 inches (3,8 mm). Maximum
recommended current for general purpose applications:
22 AWG - 3 AMPS, 20 AWG - 5 AMPS, 18 AWG -
7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS.
Installation Instructions
1. Insert 2 or 3 unstripped wires completely into
connector and check their position by looking
through the translucent connector body.
2. Hold tool perpendicular to the wires and make the
connection by driving the cap down flush with the
top edge of the connector body.
(Voltage rated at 600 volts maximum, building wire:
1000 volts maximum, signs, fixtures and luminaires.
Operating Temperature: 105°C.
Wire Range
22-14 AWG Solid or stranded, tinned or untinned
(0,5-1.5 mm2) copper conductors. For use with
common thermoplastic insulated wires: T, TF, TFF,
TFN, TFFN, AWM, TEW, SAE-GPT with a maximum
insulation diameter of .150 inches (3,8 mm). Maximum
recommended current for general purpose applications:
22 AWG - 3 AMPS, 20 AWG - 5 AMPS, 18 AWG -
7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS.
Installation Instructions
1. Insert 2 or 3 unstripped wires completely into
connector and check their position by looking
through the translucent connector body.
2. Hold tool perpendicular to the wires and make the
connection by driving the cap down flush with the
top edge of the connector body.
(Voltage rated at 600 volts maximum, building wire:
1000 volts maximum, signs, fixtures and luminaires.
Operating Temperature: 105°C.
22-14 AWG Solid or stranded, tinned or untinned
(0,5-1.5 mm2) copper conductors. For use with
common thermoplastic insulated wires: T, TF, TFF,
TFN, TFFN, AWM, TEW, SAE-GPT with a maximum
insulation diameter of .150 inches (3,8 mm). Maximum
recommended current for general purpose applications:
22 AWG - 3 AMPS, 20 AWG - 5 AMPS, 18 AWG -
7 AMPS, 16 AWG - 10 AMPS, 14 AWG - 15 AMPS.
Installation Instructions
1. Insert 2 or 3 unstripped wires completely into
connector and check their position by looking
through the translucent connector body.
2. Hold tool perpendicular to the wires and make the
connection by driving the cap down flush with the
top edge of the connector body.
(Voltage rated at 600 volts maximum, building wire:
1000 volts maximum, signs, fixtures and luminaires.
Operating Temperature: 105°C.
