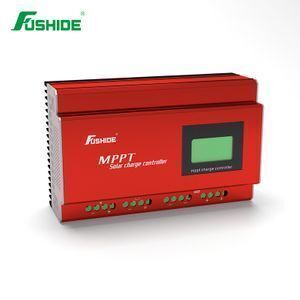

solar charge controller 10A/20A/40A/60A/90A MPPT high quality and high efficiency
- 60.00 piece
| Single gross weight: | 1.5 KG; | Model Number: | FSD-A; |
| Max PV Voltage: | 40VDC~150VDC; | Application: | Charger Controller,Solar Working Station,Solar System Controller; |
| Type: | MPPT; | frequency: | 50HZ/60HZ; |
| Package Type: | Carton box; | Place of Origin: | Zhejiang China; |
| Working temperature: | -10℃~50℃; | Display: | LCD; |

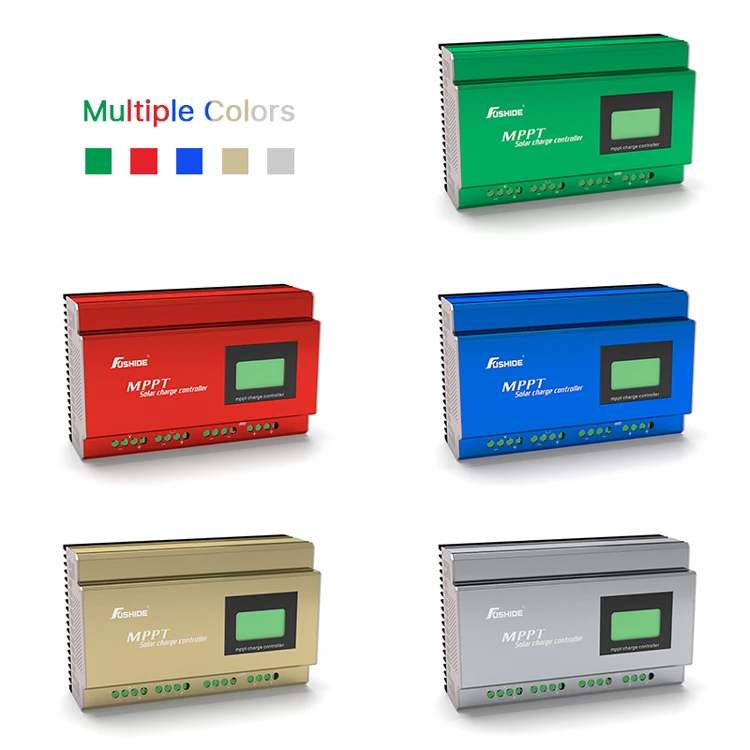

| Selling Units: | Single item; | Color: | Blue/Red/Green; |
| Work Time (h): | settable; | Brand Name: | FUSHIDE; |
| Single package size: | 25X14X9.5 cm; | IP: | 54; |
INDEPENDENT DUAL-OUTPUT MPPT CHARGER CONTROLLER
Features
• Independent Dual-output for MPPT charger and DC load
• The load voltage is stable and will not change with the charging voltage of the battery
• Three stage charging of battery, after battery fully charged, the charging process would stop completely and in standby mode for continuous power supply
• LCD display with operation parameters, support RS232/RS485 communication
• High efficiency, the utilization ratio of photovoltaic reaches 99%
• Multiple protection features as over current, over voltage, low voltage, reverse polarity, over temperature
Applications
• High power LEDs
• Household DC appliances
• Monitoring power supply
• Photovoltaic charging
• Uninterruptible power supply for photovoltaic lithium battery bank
Note: WiFi module needs additional purchase
