Wireless smart pressure transmitters for water pipeline network Products from Shaanxi Topsail Electric Technology Co., Ltd.

Product Details

Pressure range:	0~2.5Mpa, Customized;	Power supply:	Li battery, power adaptor;
Brand Name:	OEM;	Pressure interface:	M20*1.5mm, Customized;
Operating humidity:	<90%;	Overpressure:	150%~300%FS;
Port:	main ports in China;	Packaging Detail:	1 unit wireless pressure transmitter per carton, carton size 25.523.517cm Gross weight 2.0KGS, Volume weight 3 KGS;
Protection:	IP65;	Operating Mode:	Report Regularly;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Credit card, Paypal;	Supply Ability:	1000 Unit/Units per Month Wireless smart pressure transmitter for water system;
Application:	Water utility system;	Operating temperature:	-20℃~70℃;
Model Number:	TD-P05;	Accuracy:	0.5%FS, Customized;
Place of Origin:	Shaanxi China;

Product Review

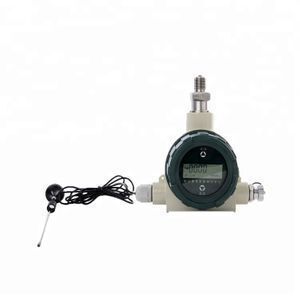

Wireless smart pressure transmitters for water pipeline network

Model: TD-P05

Brief introduction:

Wireless pressure transmitter will monitor the pipeline system pressure and report data to appointed cloud server at set interval when measured pressure is normal;

once it detect critical pressure, it will report the data packet to cloud server at once;

meanwhile the GPRS wireless pressure sensor will alert user with SMS alarm.

Usually Too high pressure may damage the shelf life of the pipe;

and Too low pressure means shortage of supply, or leakage occurs.

Advantages:

1. GPRS communication for global market

2. Super low power consumption design

3. Battery powered for out-door working 3 years

4. Customized settings, data could be sent to server of clients'

Technical details:

Range	0~10KPa......100MPa Customized
Accuracy	0.2%, 0.5% Customized
Long-term stability	0.1%FS/year
Overpressure	3X or 120MPa (the smaller one)
Network	GPRS: 850/900/1800/1900MHz for Global
Display	5 digit reading value, 7 digit display
Protection	IP65, waterproof, dust-resistance
Power	Battery 38000mAh 3.6V, one-time use
Working environment
Operating temperature	-20℃~70℃
Operating humidity range	<90%
Storage temperature	-20℃~70℃
Physical materials
Process thread	G1/2, M20*1.5mm Customized
Material of housing	Aluminum alloy

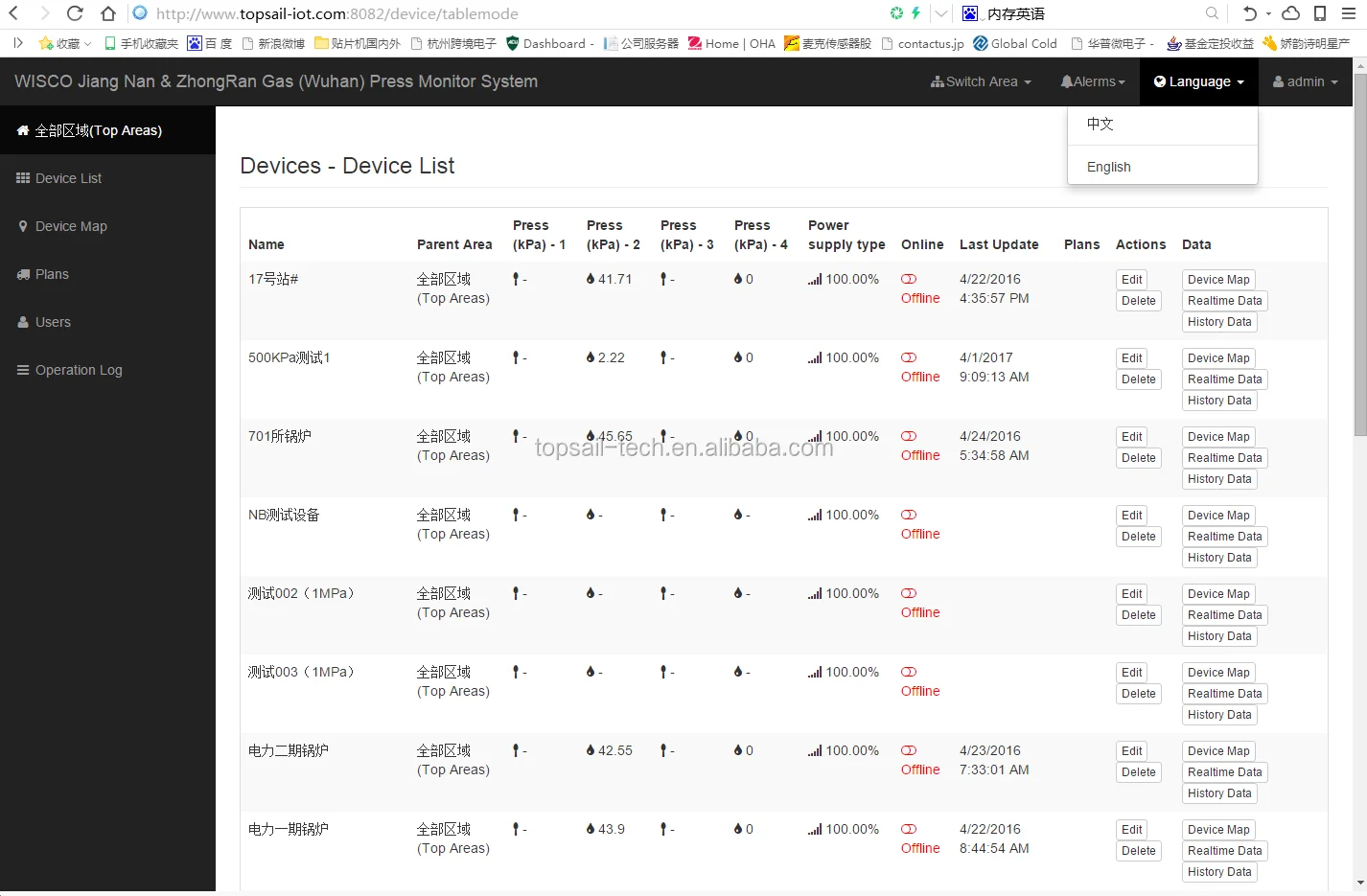

Free demo web platform:

Packaging & Shipping

Carton Packaging:

Express or Air shipping

Our Services

Recommendations

FAQ

Answers for the Questions you may have:

** MOQ?
1 unit.
** LOGO service?
Yes
** FREE sample?
No.
** QUALITY gurantee?
1 year.
** PAYMENT support?
T/T, Visa, Master, WestUnion, MoneyGram
** WHEN could we receive goods?
Goods Preparation: 2~5 days for default settings.
Courier shipment days: about 7~15 days, up to courier express service.
** DISCOUNT?
1) If you have BIGGER ORDER, pls. mail us details to get discount.

2) If you are an INTEGRATOR, pls. share your website with us to get discount.
3) COUPON valid always:
posting on-site photos (5 at least) of sensors / loggers which you bought from us on SNS, and @our FB/Instagram/Linkedin, you will enjoy 5% discount off (no more than 20$) - one buyer enjoy once ONLY in the next order.
4) COUPON time-limited for March & Sept. EXPO: 2% discount off

Your inquiries would be responded in 0~10 hours during March Expo!

Please check and confirm following information to us:
1. What it will be used to do?
2. Pressure range & accuracy & thread size?
3. Do you have own software solution?

4. How many units will you need?
5. Which country they will be sent to?

With your answers, CNF/CIF cost could be provided for you.
