vibration meter price hand arm vibration vibration measurement

Supplier: Shenzhen Liweihui Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms. lily lee
Price: $99.99 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Brand Name:	OEM;	Battery life:	20 hours continuous use;
Packaging Detail:	Normal factory seal packing for vibration meter price;	LCD backlight:	7 seconds;
Place of Origin:	Guangdong China;	measurement accuracy:	±5%±2digitals;
LCD display:	3 1/2digital display;	Vibration pickup:	piezoelectric ceramic accelerometer(shear-type);
Supply Ability:	1000 Piece/Pieces per Week vibration meter price;	Display uodate cycle:	1seconds;
Model Number:	GM63B;	name:	hand arm vibration;
Power supply:	9V Alkline Battery;	type:	vibration meter price;
Product name:	vibration measurement;	Port:	shenzhen;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal Alipay Trade Assurance;

vibration meter price hand arm vibration vibration measurement

vibration meter price

vibration measurement

hand arm vibration

Product Description

Description :

This product adopts piezoelectric effect of artificial polarrized ceramic ford esign.It is suitable for monitoring all kinds of vibrating mechanical facility,specially the vibration measurement of rotating machinery.

Feature:

Lcd display measurement result and conditions directly
Selective vibration characteristic.
Uses hi-sense of vibration sendor,measuring accurately

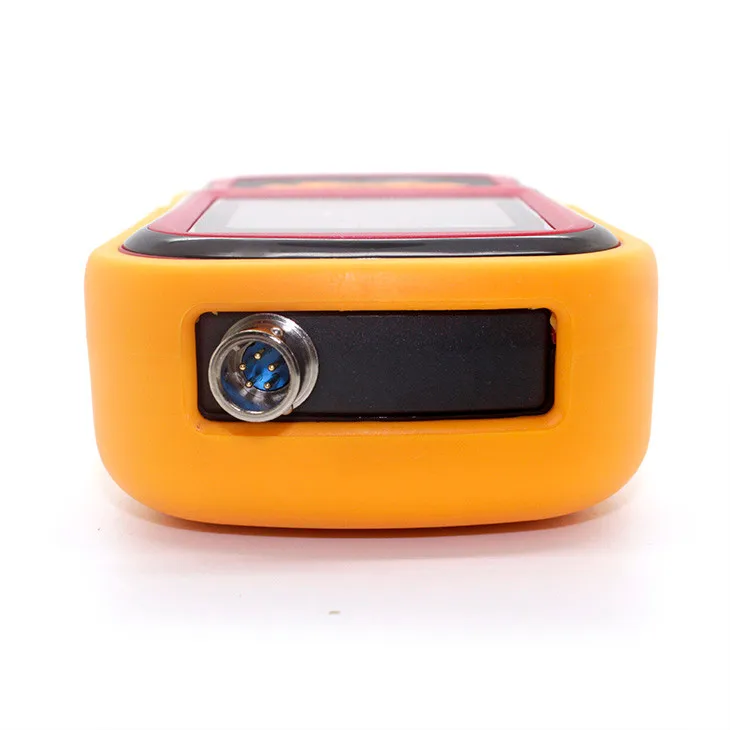

Equipped with AC signal output interface.
Low power indication.
Auto power indication.
Maximum value hold function
Temperature unit C/F selection
LCD backlight.

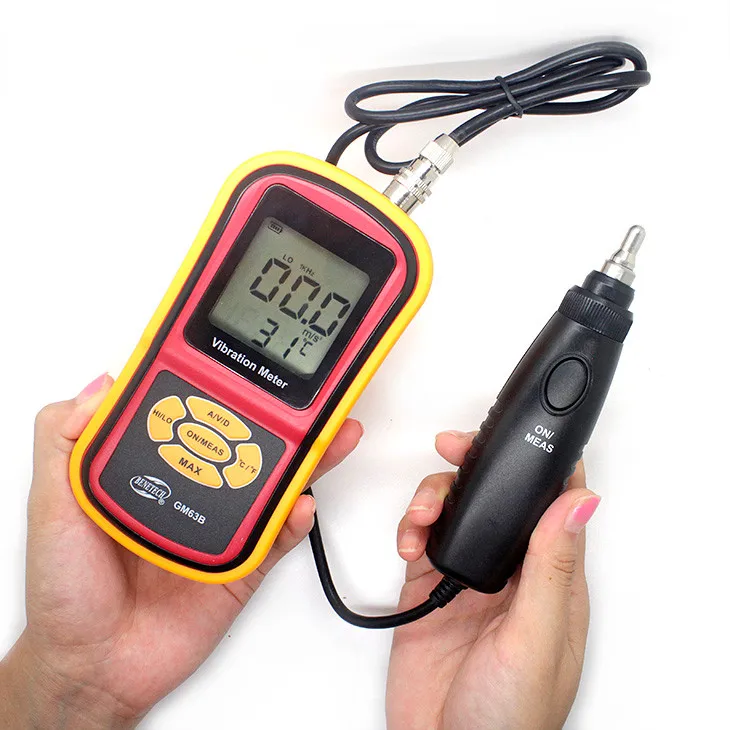

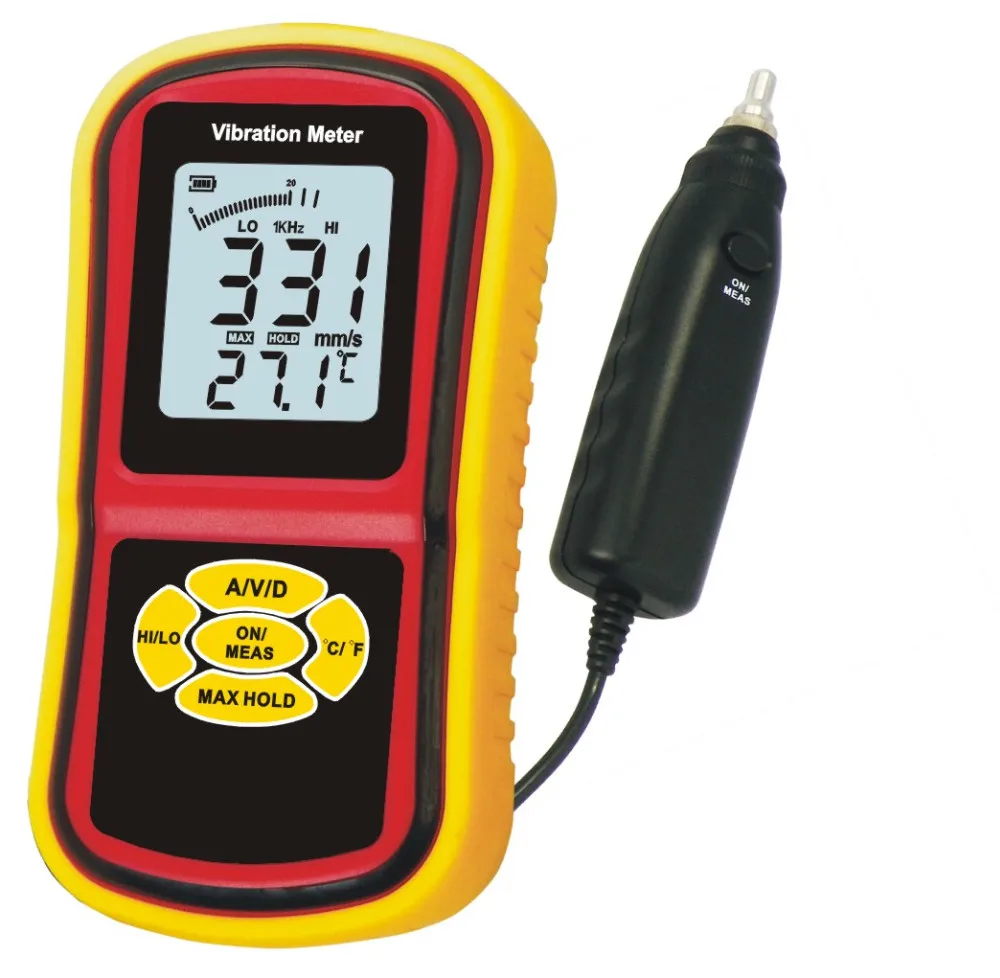

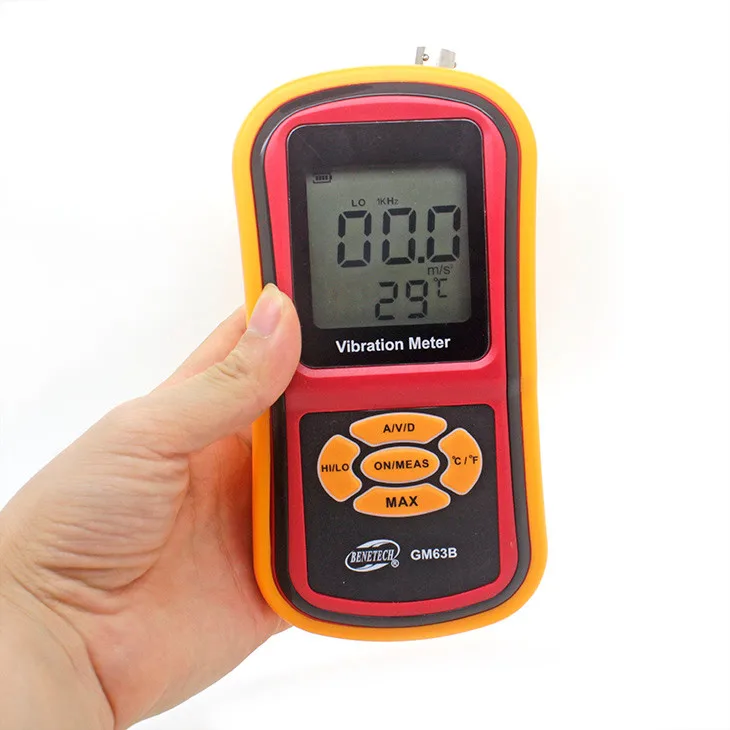

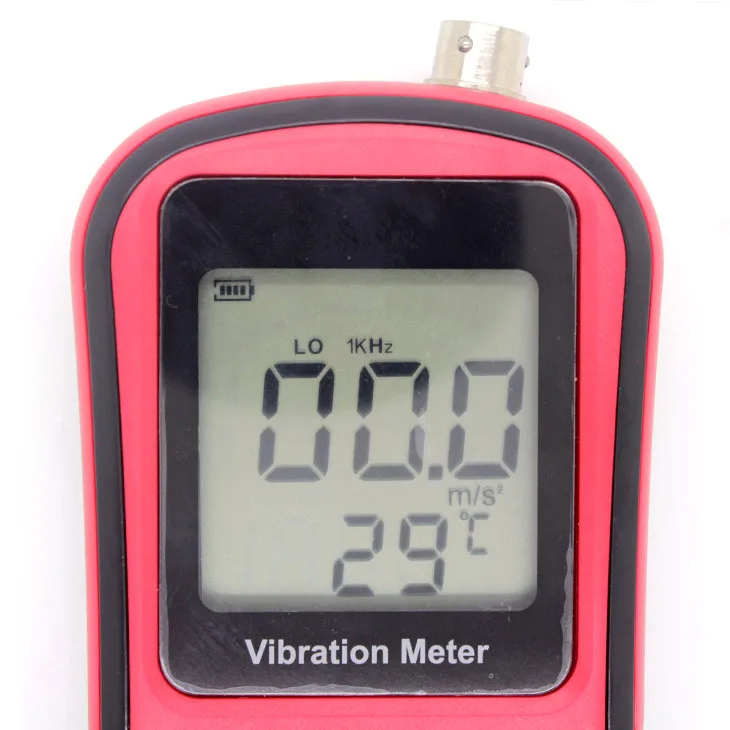

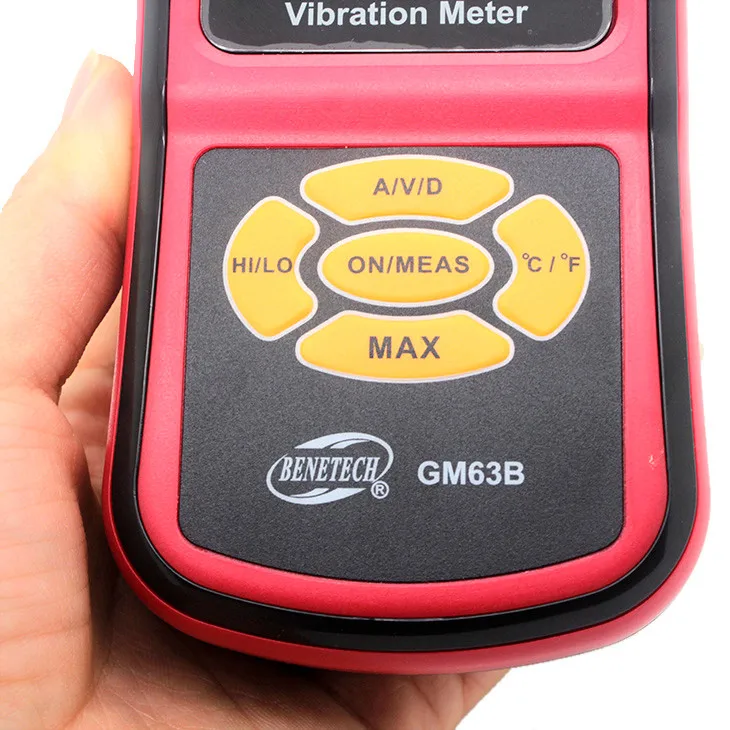

Detailed Images

Specification

Item	specification
moldel	GM63B
Vibration pickup	piezoelectric ceramic accelerometer(shear-type)
Product name	Vibration Meter
measurement range of acceleration	0.1~199.9m/s²peak
measurement range of velocity	0.1~199.9mm/s rms
Measurement range of displacement	0.001~1.999mm p-p Velocity and displacement range is limited by acceleration 199.9m/s²
measurement accuracy	±5%±2digitals
measurement frequency range of acceleration	10Hz~1KHz(LO)1KHz~15KHz(HI)
measurement frequency range of velocity	10Hz~1KHz(LO)
measurement frequency range of displacement	10Hz~1KHz(LO)
Display uodate cycle	1seconds
LCD display	3 1/2digital display
single output	AC output 2VPeck(display full scale)load impedance 10k or more earphones can be connected
Power supply	9V Alkline Battery(no include)
static current	<=15uA
Operating current	<=25mA
Battery life	20 hours continuous use
Auto power-off	turns off automatically in 60 seconds
LCD backlight	7 seconds
Operating temperature range	0~40℃
Operating humidity range	30~90%RH
low battery indication	6.9v±0.2V
Temperature range	—10C~80C
Temperature accuracy	±2C

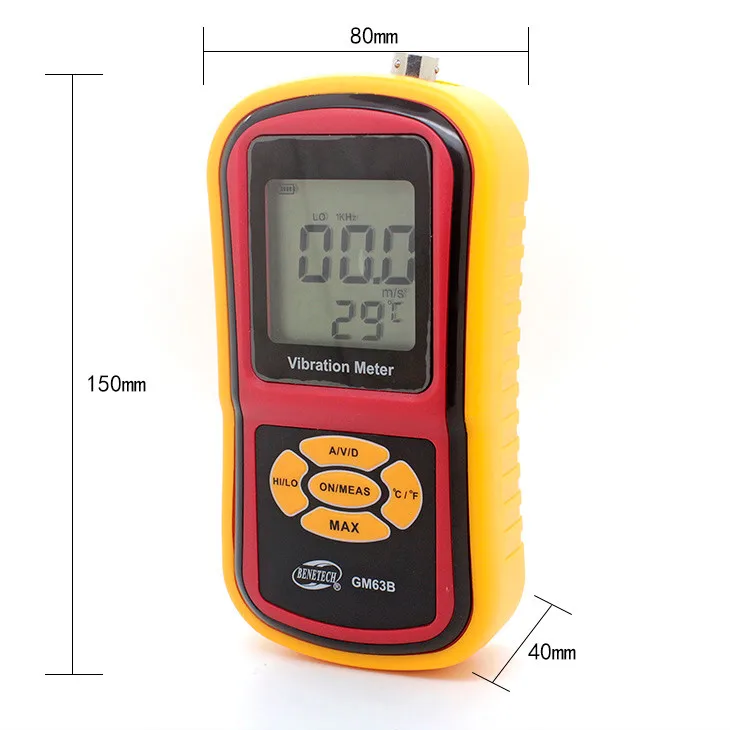

Dimensions	1457235mm
package size	28718581mm
package weight	1035.8g
weight	229g

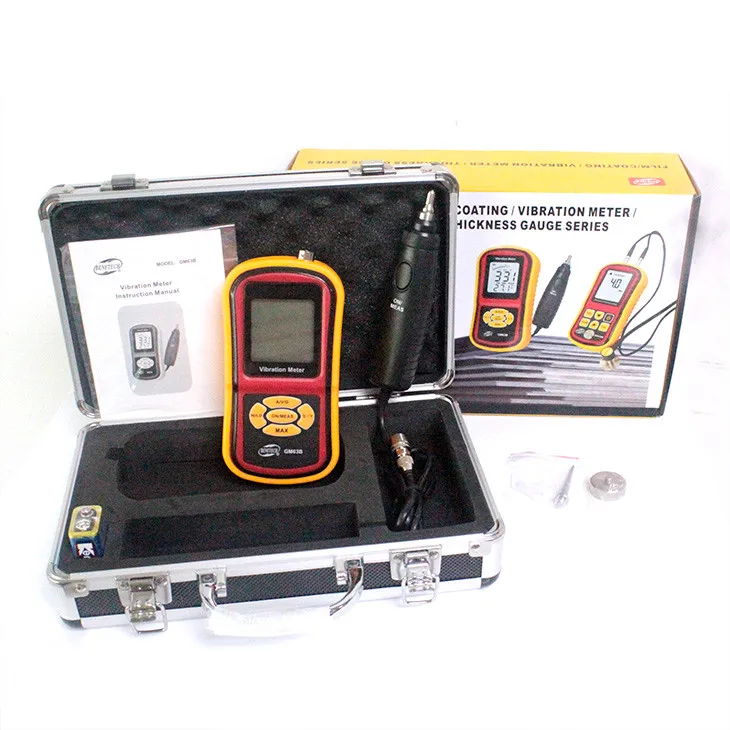

Package:

Item	unit
Vibration meter	1pcs
Detector handle	1pcs
9V Alkaline battery(not included)	1pcs
User's manual	1pcs
Long probe	1pcs
Short probe(Equiped on the main unit)	1pcs
PP packing box	1pcs
