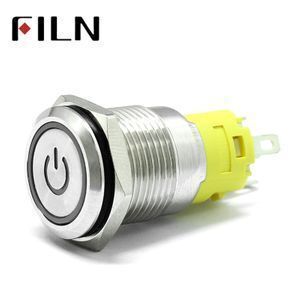

RG dual-color 19mm 12v 24v 110v 220v momentary or self-locking RG led waterproof push botton switch with power logo

Supplier: Yueqing Yulin Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms min wu
Price: $1.99 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

LED voltage:	3v, 6v, 12v, 24v, 36v, 48v, 110v, 220v, 380v;	Place of Origin:	Zhejiang China;
Packaging Detail:	50pcs per box, then packedin carton. Double packing.;	Connection way:	Solder pin/ wire soldering;
OEM:	Available;	Switch Combination:	1NO1NC/2NO2NC;
Max. Voltage:	250v;	Material:	Stainless steel/ Zinc Alloy Aluminum(black)/Nickel plated brass;
Mounting hole size:	19mm;	Supply Ability:	100000 Piece/Pieces per Quarter;
Protection Level:	IP67, IK10;	Model Number:	FLM19-FJ-EC-3;
Switch Function:	Momentary/Latching;	Payment Terms:	L/C,T/T,Western Union,PayPal;
Port:	Any port in China;	Approval:	CE, RoHS, ISO9001;
Max. Current:	5A;	Brand Name:	FILN;
LED Color:	red, green, blue, white, orange, bi-color, tri-color;

FILN specialized in manufacturing of various metal push button switch 8mm, 10m, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm. Our led illuminated metal push button switchs are widely used for machine and equipment, and rather popular all over the world.

The new items looks more beautiful when mounted on panel. And the operation experience is better.

We control every aspect for you!

Items	Parameter
Install Hole Diameter	19mm
Swtich Function	1NO1NC/2NO2NC
Operation Type	Momentary/ Latching
Solder pin type	Connection terminal 2.8*0.5
Rating	5A/250VAC or 3A/250VAC
Dielectric Intensity	2000VAC
Contact Resistance	≤50mΩ
Insulation resistance	≥1000MΩ
Electrical Life	≥50,000cycles
Mechanical Life	≥500,000cycles
Temperature	-20℃~+55℃
Protection Level	IP67, IK10
Operation Force	about 3~5N
Operation Stroke	about 2.5mm
Panel thickness	1-10mm
Nut torque	5-14Nm
LED voltage	3-720VAC/DC
LED rated current	20mA
LED color	red/blue/green/yellow/white/bi-color/tri-color
