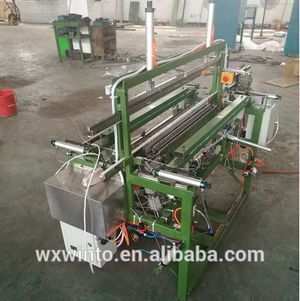

Simple 90cm Width Shawl Fringing-Knotting Machine Factory

Scarf/ Shawl/ Blanket Fringing Machine with knotting function

 We design and produce the fringing-knotting machine. This new technology has filled in the gaps of domestic textile industry, and we gained national utility model patent certificate. The machine mainly used for twisting the fringe of scarf, shawl or blanket and knot the fringe end,

It has been praised by many users, and be well received by the users in china and abroad.  We delivered many to Egypt, India, Turkey etc.

Technical Data:

1. Working Width: 80cm

2.Total capacity: 0.65kw

3. Electricity: 220v ±10%,50HZ

4.Work efficiency: 2~3 pcs/min.

5.Package Dimension: L*W*H 2600*1000*1600mm

6. Gross Weight: 300kg

7. Fringe length range: 150mm~450mm

The parts along with the machine package:

1. 3sets Rubber strip (3.6m/set),

2. 1pcs 4MM allen wrench, 1pcs 5 MM allen wrench

3. 10pcs steel wire rope

4. inductive switch: 1pcs normally open inductive switch, 1pcs normally closed inductive switch             5. 2pcs solenoid valve                                                                                                                                         6. special oil for cylinder                                                                                                                                   7. 5pcs spring

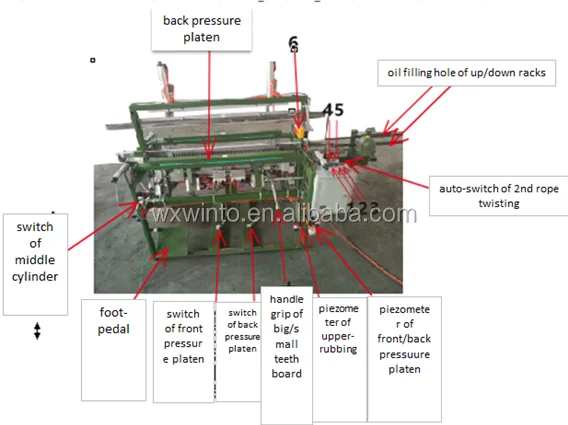

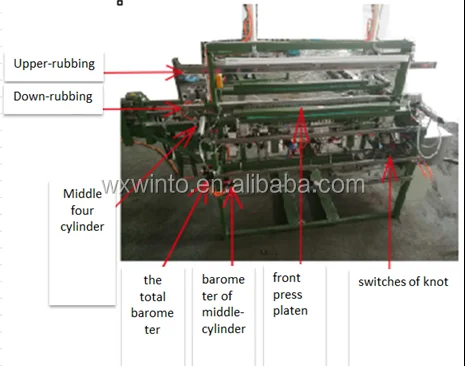

Machine Detail Button

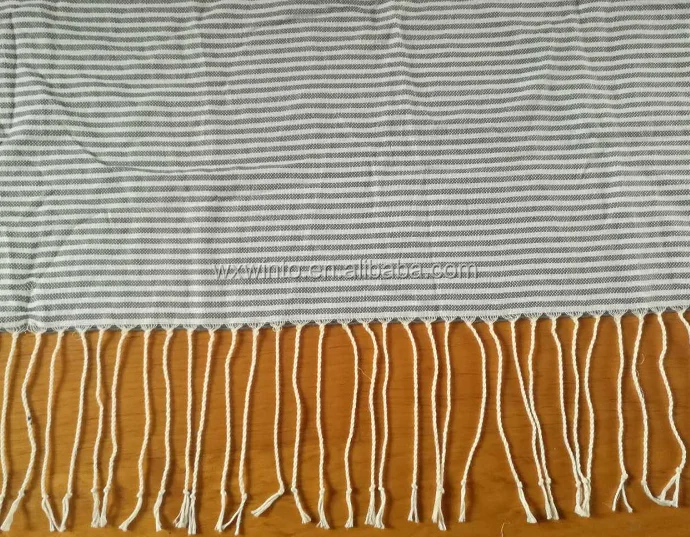

Scarf twisted and knotted fringe

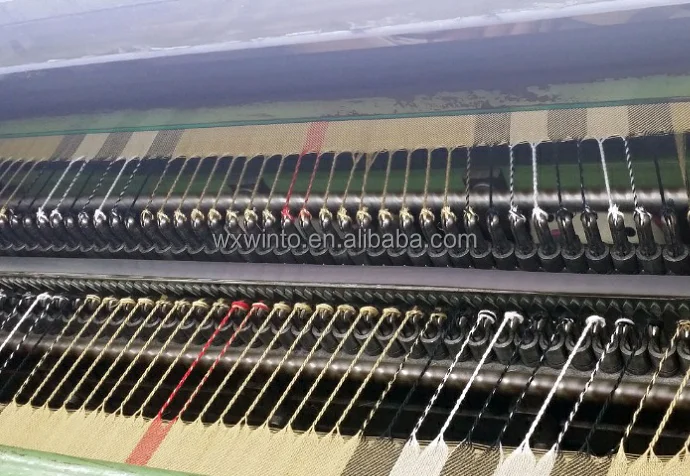

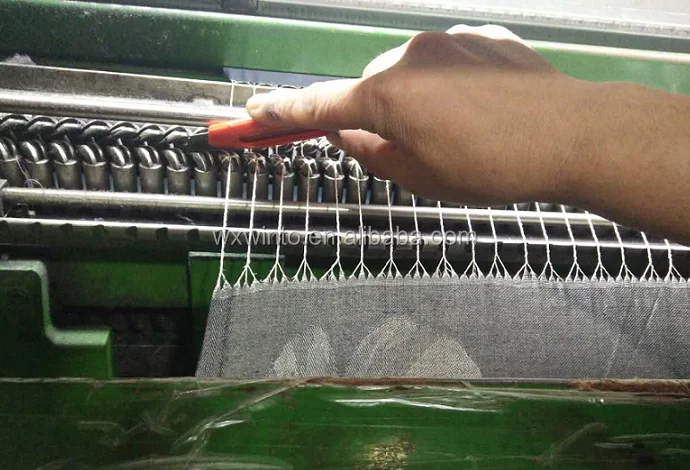

Twisted fringe

Shipping

1)By sea

We have big stable shipping agent, can do with FCL or LCL

2)By air

usually we ship from Shanghai air port

Why Choose Us

1.Experienced and Professional scarf machinery manufacturer over 20 years
2. Strict quality control, professional service,honest communication and R&D team

3.Wide range scarf machinery, timely shipment. Drop shipping available
4. OEM available, A trial order or sample orders are accepted
5. 24 hours email reply pre and after sale service support.
