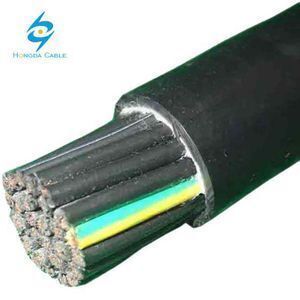

KVV cable PVC insulated PVC jacket copper conductor control cable KVV control cable
-
Supplier: Henan Hongda Cable Co., Ltd. -
Region: Henan, China -
Contact: Mr hong li -
Price: $0.15 / >=500 meters -
Min. Order: 500 meters
| Product Name: | KVV KVV32 KVV22 KVVR KVVP; | szie: | 0.75 1.0 1.5 2.5 4 6; |
| Delivery Detail: | depend on the quantity; | Conductor Material: | Copper; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Supply Ability: | 50 Kilometer/Kilometers per Day; |
| Place of Origin: | Henan China (Mainland); | Color: | Optional; |
| Brand Name: | OEM/Hongda; | Application: | Industrial; |
| Model Number: | KVV; | cores: | 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20; |
| Insulation Material: | PVC; | Packaging Detail: | in coil or in drum; |
| Jacket: | PVC; | Port: | qingdao; |
Product Type: KVV
Standard: This product is manufactured according to GB9330-88 standard. The low smoke low halogen flame retardant or low smoke zero halogen flame retardant control cable is manufactured according to the enterprise standard. The flame retardant property meets the requirements of GB / T17651 and GB / T17650. Flame-retardant control cables manufactured in accordance with corporate standards, flame retardant properties in line with GB / T18380.3 requirements.
Product Features:
1, rated voltage: 450 / 750V or 0.6/1 kv
2, the working temperature: ordinary type does not exceed 70 ℃, flame retardant does not exceed 105 ℃
3, conductor: single strand copper wire or stranded oxygen-free copper wire
4, insulation: PVC
5, sheath: PVC
6, color: black
Use range:
Laying in the room, cable trench, pipe and other fixed occasions.
Features / Uses:
This product is suitable for metallurgy, power, petrochemical and other industrial and mining enterprises in the exchange rated voltage 450 / 750V and below electrical instrumentation, power distribution equipment, signal transmission, control and measurement systems.
ype | Name | Applying bound |
KVV | Copper conductor PVC insulated and sheathed control cable | For laying indoors, in trenches, and in ducts for the fixed installation |
KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened control cable |
|
KVVP2 | Copper conductor PVC insulated and sheathed control cable with steel tape shied | For laying indoors, in trenches, and in ducts for the fixed installation |
KVV22 | Copper conductor PVC insulated and sheathed control cable with steel tape armoured | For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation |
KVVR | Copper conductor PVC insulated flexible control cable | For laying indoors, movable and flexible |
ZR-KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable | Fixed laying indoors with capability of moving and screening |
ZR-KVV | Copper conductor PVC insulated and sheathed flame retardant control cable | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
ZR-KVVP2 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
ZR-KVV22 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured | For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation |
ZR-KVVR | Copper conductor PVC insulated and sheathed flame retardant flexible control cable | For laying indoors, and the cable should be flame-retardant flexible and movable |
| Nom.conductor cross-section (mm2) | Nom. thickness of Insulaton (mm) | Sheath nominal thickness (mm) | Average O.D (mm) | Approx weight (kg/km) | Resistance of insulation at 70 degree(MΩ/km) | |
| Min | Max | |||||
| 4x2.5 | 0.8 | 1.5 | 13 | 17 | 386 | 0.01 |
| 4x4 | 0.8 | 1.5 | 14 | 18.5 | 470 | 0.0085 |
| 4x6 | 0.8 | 1.5 | 15.5 | 19 | 574 | 0.007 |
| 4x10 | 1 | 1.7 | 19 | 25 | 901 | 0.0065 |
| 7x2.5 | 0.8 | 1.5 | 15 | 19 | 501 | 0.01 |
| 7x4 | 0.8 | 1.5 | 16.5 | 20.5 | 635 | 0.0085 |
| 7x10 | 1 | 1.7 | 22.5 | 28.5 | 1284 | 0.0065 |
| 8x2.5 | 0.8 | 1.5 | 16.5 | 21 | 556 | 0.01 |
| 8x4 | 0.8 | 1.7 | 18.5 | 23 | 736 | 0.0085 |
| 10x2.5 | 0.8 | 1.7 | 18.5 | 23 | 697 | 0.01 |
| 10x4 | 0.8 | 1.7 | 20.5 | 25 | 888 | 0.0085 |
| 10x6 | 0.8 | 1.7 | 22.5 | 27 | 112 | 0.007 |
| 12x2.5 | 0.8 | 1.7 | 19 | 23.5 | 762 | 0.01 |
| 12x4 | 0.8 | 1.7 | 21 | 25.5 | 984 | 0.0085 |
| 14x1.0 | 0.6 | 1.5 | 15 | 19.5 | 474 | 0.011 |
Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Hongda cable Co., Ltd. is one of the most professional cable & wire producer, which was founded in 1988, have exported for 9 years, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co., The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc
Our advantages
1. With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2. Good cost-control system, with highly-competitive prices;
3. Strong and Professional R&D team to meet your specific needs;
4. Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM .
