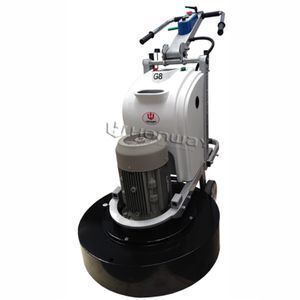

HW-G8 220V 380V concrete marble floor hand grinding and polishing machine

  • 3000.00 set
Min. Order: 1 set FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
Packaging Detail:High Density Polyethylene pallet; Conform to export standard.;After-sales Service Provided:Engineers available to service machinery overseas;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:CE;Brand Name:HONWAY;
Warranty:1 Year;Supply Ability:200 Set/Sets per Month;
Port:Shanghai/Guangzhou/Shenzhen;Dimension(L*W*H):1200*800*900mm;
Condition:New;Certification:CE;
Production Capacity:250mm*3;Voltage:220/380V;
Key Selling Points:Long Service Life;Power(W):10hp;
Place of Origin:Hunan China;Use:Granite;
Type:Stone Polishing Machine;Weight:260KG;
Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;

HW-G8 220V 380V concrete marble floor  hand grinding and polishing machine



HW-G8 stone edge polishing machine granite grinding and polishing machine cement grinding machines in stone machinery

Features and Advantages:

1, Three planetary heads rotate on a the disk of diameter 760mm, in a word, a machine for big project;

2, The button disk which hold diamond pad is more versatile, to meet different shape of diamond tools;

3, The direction of button disk can be both clockwise and anticlockwise; because diamond pad would be uneven if it always runs in one direction; Unevenness will waste diamond;

4, controlling panel is easy-to-understand and easy-to-operate;

5, Machine is equipped with 30L water tank and vacuum connection port; so wet and dust-free dry grinding can be both realized;

6, we adopt high quality rubber wheels because it not only support the machine weight but also afford long time transportation.

Technical Parameters:

ModelHW-G8
Voltage380V-460V, 3Phrase220V, 1Phrase
Hertzs50/60HZ50/60HZ
Input Power 10 hp 10 hp
Current 16A20A
Inverter15 hp15 hp
Work Area760mm760mm

Plate Speed

300-1750rpm300-1750rpm
DiscDiameter250mm*3250mm*3
Water Tank45L45L
Extra Weight30KG30KG
Weight240KG240KG
L*W*H1200*800*1100mm1200*800*1100mm
Diamond No.9pcs9pcs









HONWAY has developed as a professional manufacturer in China since 2001 for floor grinding & polishing machine in floor preparation field; most of its staff is in the department of research, manufacture and sales;



HONWAY floor grinding machine and diamond pad are applied for cutting, grinding and polishing of concrete floor, natural stone, and terrazzo floor; HONWAY not only supply the floor preparation machines, industrial vacuum and grinding pad, but also lead the technology innovation and product research, for a comprehensive and environment friendly solutions for floor contractor;



HONWAY has exported 80% of its products to oversee and established the business relations with clients in North America, Australia, South America, Europe; every year we have the distributors and floor contractors to join HONWAY family;
